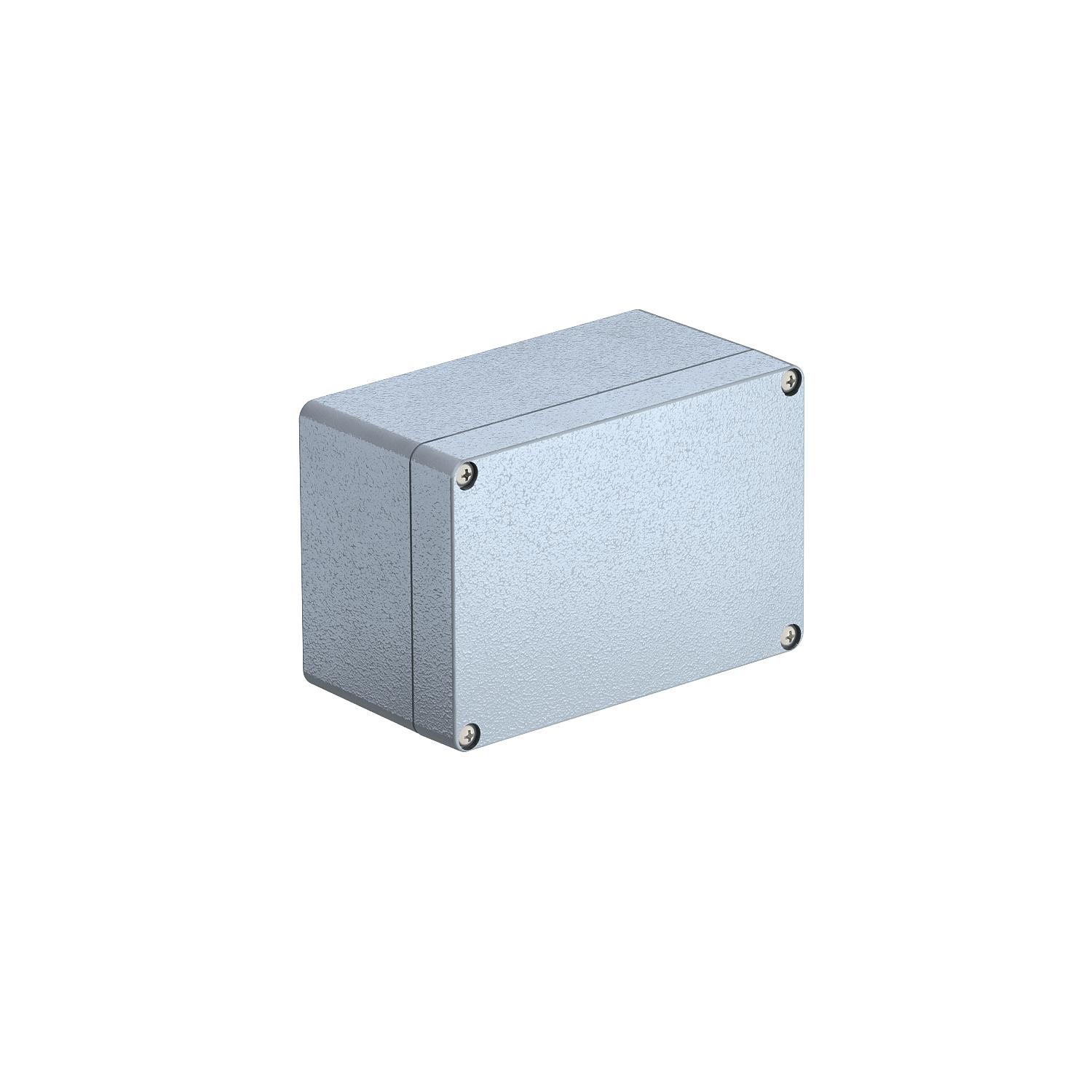

Aluminium empty housing Mx12, powder coated

Št. art. 2011312 | EAN 4012196030811

Opis izdelka

Opis izdelka

Robust aluminium empty housing for mechanical engineering and automation technology.

The OBO Mx series’ excellent mechanical and thermal features make it most suitable for extreme demands in many different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.

The products protect the electrical installation against high-grade strains. They withstand both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels.

With an IP66 protection class, they are optimally protected against the intrusion of dust and water.

The aluminium housings are powder-coated (RAL 7001) and are delivered with a cover including stainless steel screws, a seal and two or four earthing screws.
Temperatura: –40 °C do +125 °C
  • Protection rating IP 66
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS conform
  • Halogen-free; without chlorine, fluorine and bromine
  • EurAsian Conformity
  • Bolt-firing tool
  • Nail device
Tehnični podatki

Tehnični podatki

Barva srebrnosiva; RAL 7001

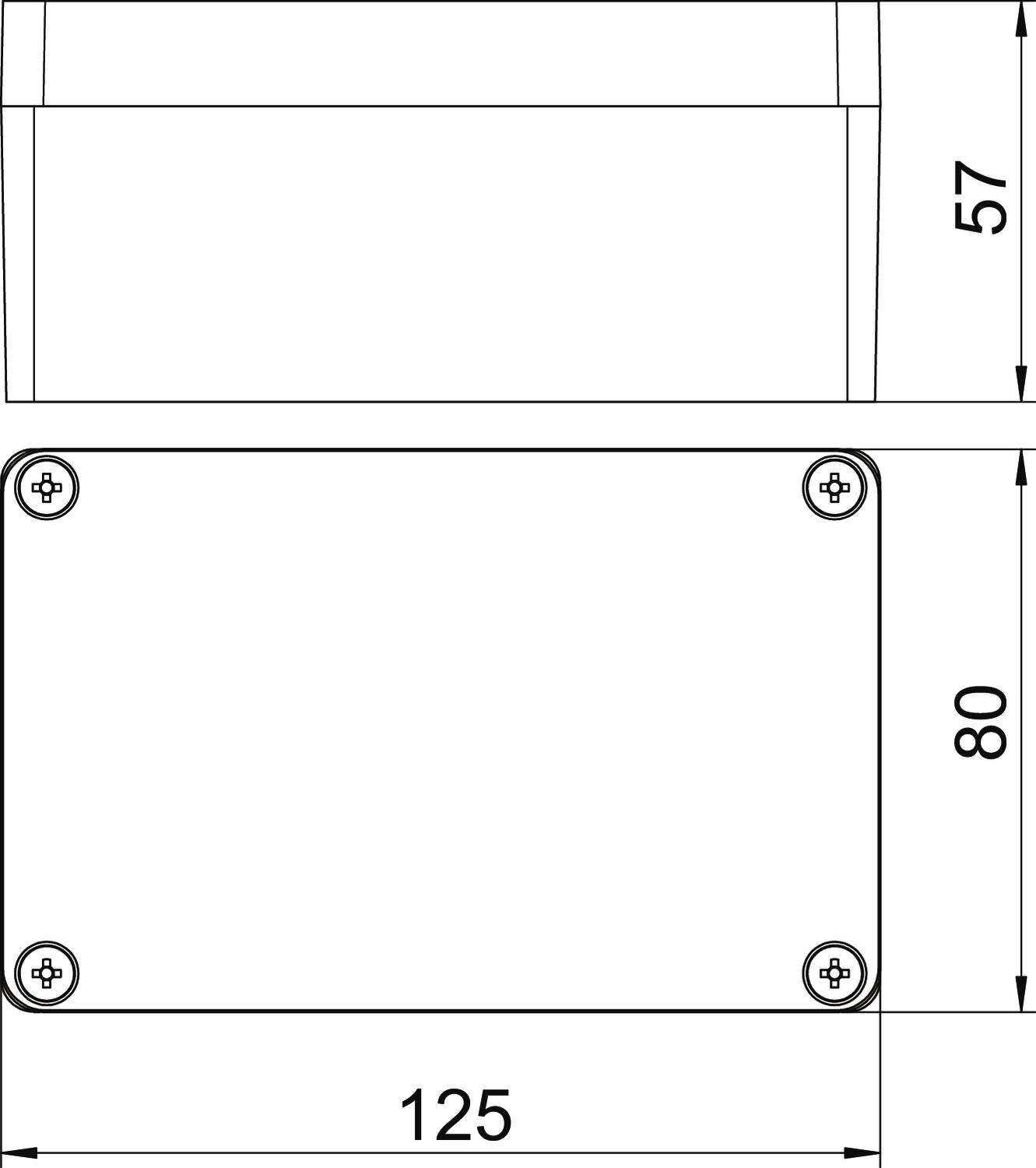

Dimenzija 125x80x57
Dolžina 125 mm
Izvedba pokrova majhnega razdelilnika zaprto
Maks. temperaturno območje uporabe 125 °C
Material aluminijeva tlačna litina
Min. temperaturno območje uporabe -40 °C
Možnost priključitve da
Notranje mere 115.5x70.5x51 mm
Oblika pravokotno
Odporen proti vremenskim vplivom da
Površina plastificirano
Primerno za zaščito pred udarom strele ne
Primerno za zunanjo uporabo da
Pritrditev pokrova privito
S pokrovom da
Širina 80 mm
Višina 57 mm
Vrsta zaščite IP66
Z montažno ploščo ne
Vsi tipi

Vsi tipi

Tip Dolžina Širina Višina Št. art. Količina Min. prodajna enota
Mx 060503 SGR 64 mm 58 mm 34 mm 2011304
1 Kos
Mx 080705 SGR 80 mm 75 mm 57 mm 2011308
1 Kos
Mx 120805 SGR 125 mm 80 mm 57 mm 2011312
1 Kos
Mx 161008 SGR 160 mm 100 mm 81 mm 2011316
1 Kos
Mx 161609 SGR 160 mm 160 mm 90 mm 2011320
1 Kos
Mx 170805 SGR 175 mm 80 mm 57 mm 2011324
1 Kos
Mx 261609 SGR 260 mm 160 mm 90 mm 2011328
1 Kos
Mx 361609 SGR 360 mm 160 mm 91 mm 2011332
1 Kos
