Aluminium empty housing Mx17, powder coated 175 | 80 | 57 |

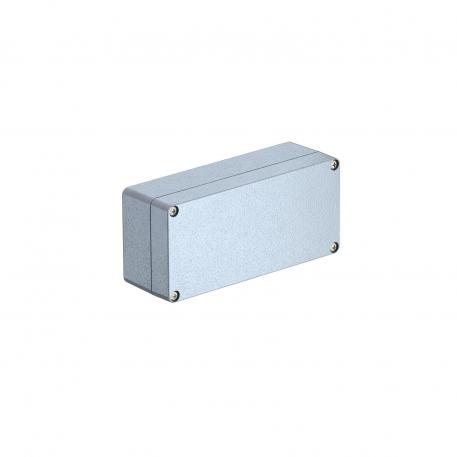

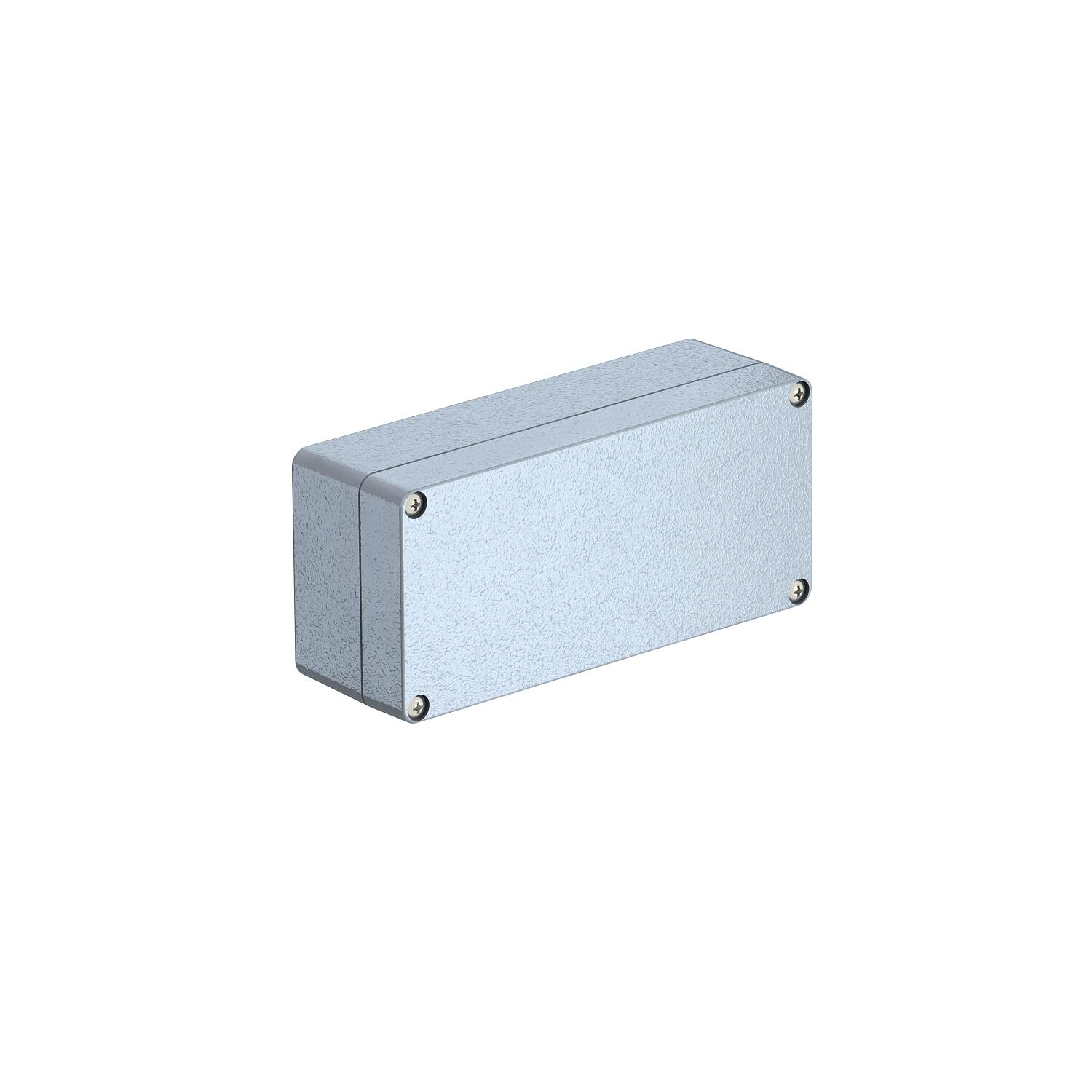

Aluminium empty housing Mx17, powder coated

Št. art. 2011324 | EAN 4012196030873

Št. art. / Tip

Dolžina

Širina

Višina

Opis izdelka

Opis izdelka

Robust aluminium empty housing for mechanical engineering and automation technology.

The OBO Mx series’ excellent mechanical and thermal features make it most suitable for extreme demands in many different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.

The products protect the electrical installation against high-grade strains. They withstand both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels.

With an IP66 protection class, they are optimally protected against the intrusion of dust and water.

The aluminium housings are powder-coated (RAL 7001) and are delivered with a cover including stainless steel screws, a seal and two or four earthing screws.
Temperatura: –40 °C do +125 °C

Tehnični podatki

Tehnični podatki

Barva	srebrnosiva; RAL 7001

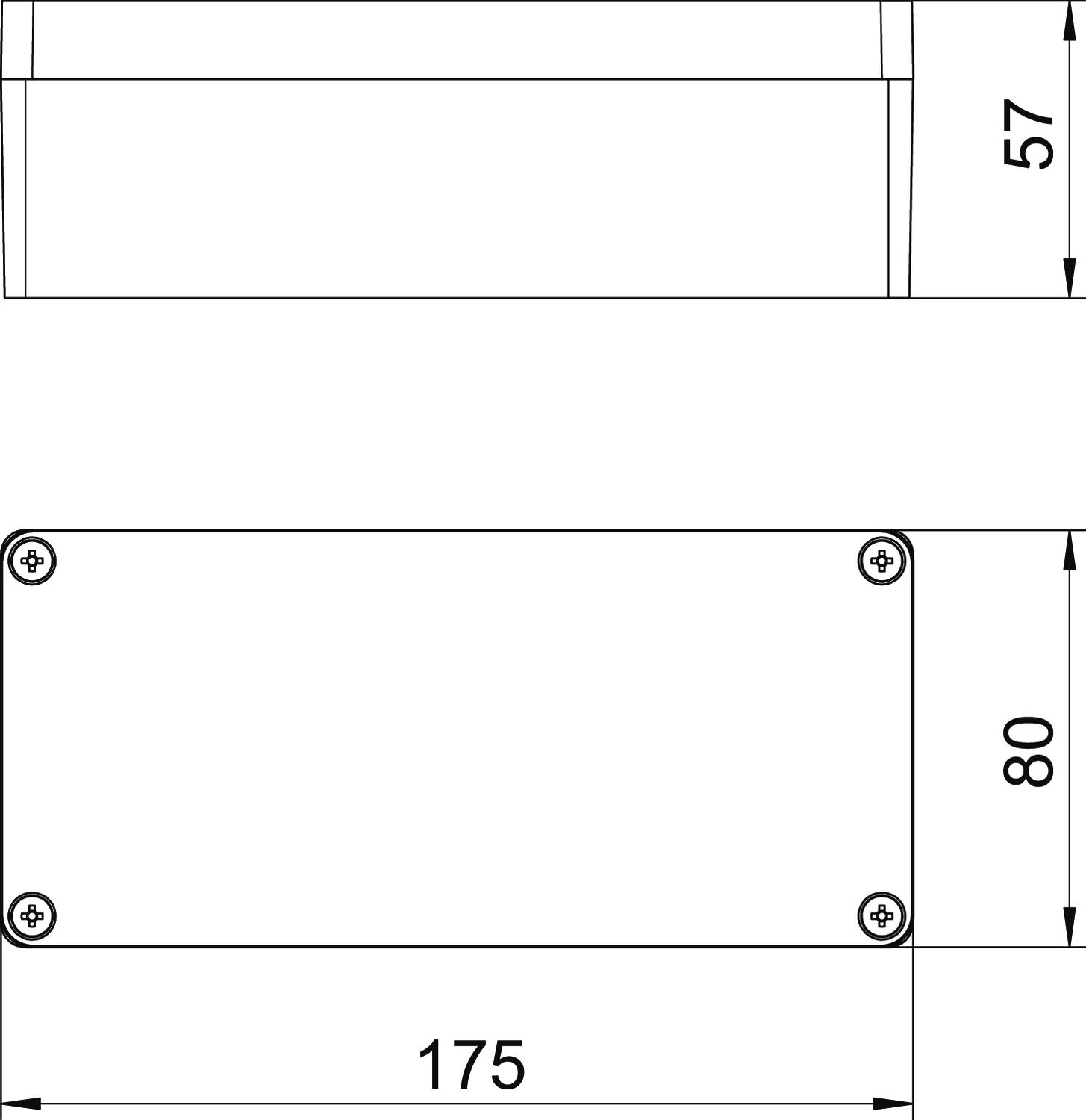

Dimenzija	175x80x57
Dolžina	175 mm
Izvedba pokrova majhnega razdelilnika	zaprto
Maks. temperaturno območje uporabe	125 °C
Material	aluminijeva tlačna litina
Min. temperaturno območje uporabe	-40 °C
Možnost priključitve	da
Notranje mere	165x70x51 mm
Oblika	pravokotno

Odporen proti vremenskim vplivom	da
Površina	plastificirano
Primerno za zaščito pred udarom strele	ne
Primerno za zunanjo uporabo	da
Pritrditev pokrova	privito
S pokrovom	da
Širina	80 mm
Višina	57 mm
Vrsta zaščite	IP66
Z montažno ploščo	ne

Vsi tipi

Vsi tipi

Tip	Dolžina	Širina	Višina	Št. art.	Količina	Min. prodajna enota
Mx 060503 SGR	64 mm	58 mm	34 mm	2011304	Kos	1 Kos
Mx 080705 SGR	80 mm	75 mm	57 mm	2011308	Kos	1 Kos
Mx 120805 SGR	125 mm	80 mm	57 mm	2011312	Kos	1 Kos
Mx 161008 SGR	160 mm	100 mm	81 mm	2011316	Kos	1 Kos
Mx 161609 SGR	160 mm	160 mm	90 mm	2011320	Kos	1 Kos
Mx 170805 SGR	175 mm	80 mm	57 mm	2011324	Kos	1 Kos
Mx 261609 SGR	260 mm	160 mm	90 mm	2011328	Kos	1 Kos
Mx 361609 SGR	360 mm	160 mm	91 mm	2011332	Kos	1 Kos
