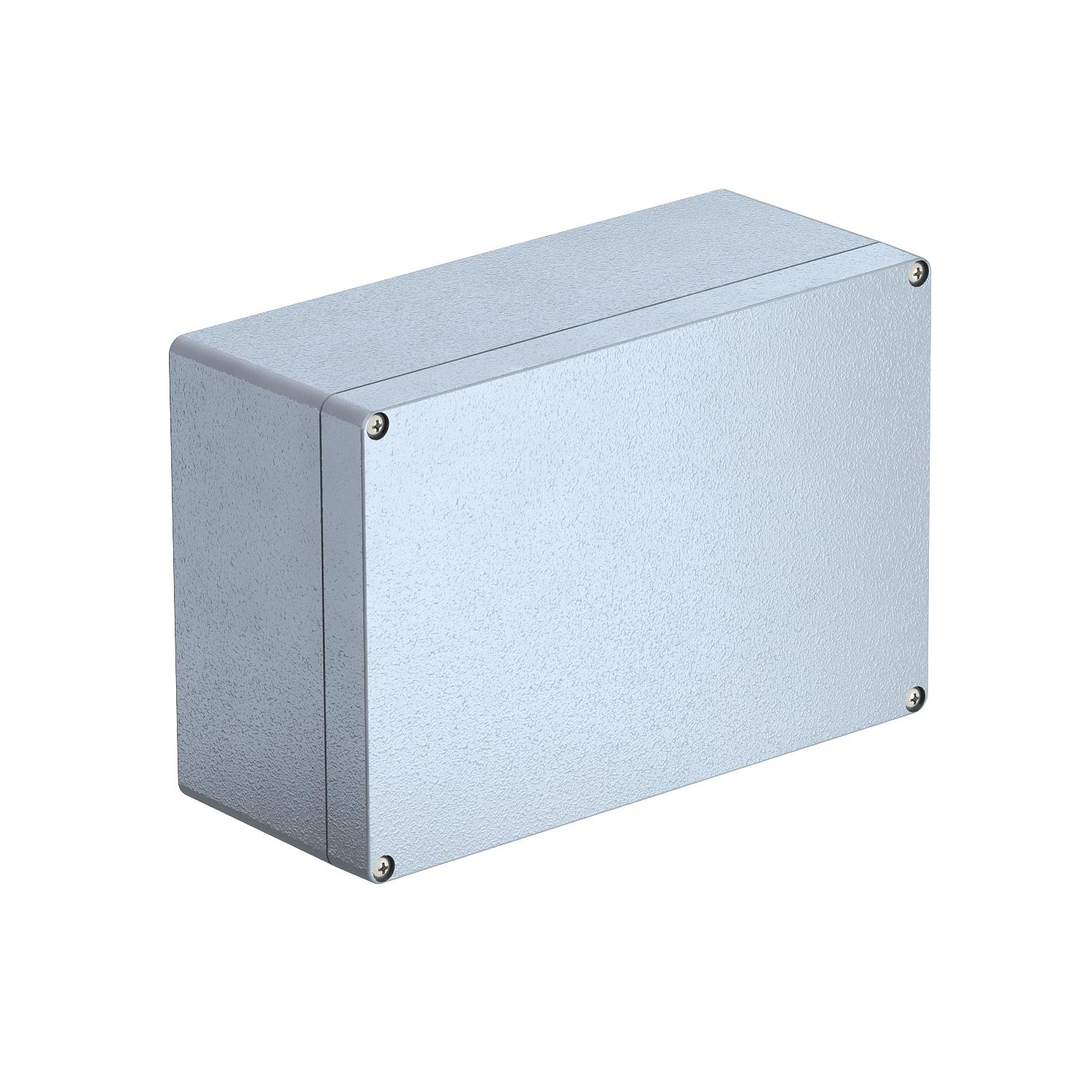

Aluminium empty housing Mx26, powder coated
Št. art. 2011328 | EAN 4012196030880
- Opis izdelka
-
Opis izdelkaRobust aluminium empty housing for mechanical engineering and automation technology.
The OBO Mx series’ excellent mechanical and thermal features make it most suitable for extreme demands in many different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.
The products protect the electrical installation against high-grade strains. They withstand both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels.
With an IP66 protection class, they are optimally protected against the intrusion of dust and water.
The aluminium housings are powder-coated (RAL 7001) and are delivered with a cover including stainless steel screws, a seal and two or four earthing screws.
Temperatura: –40 °C do +125 °C
-
- Tehnični podatki
-
Tehnični podatki

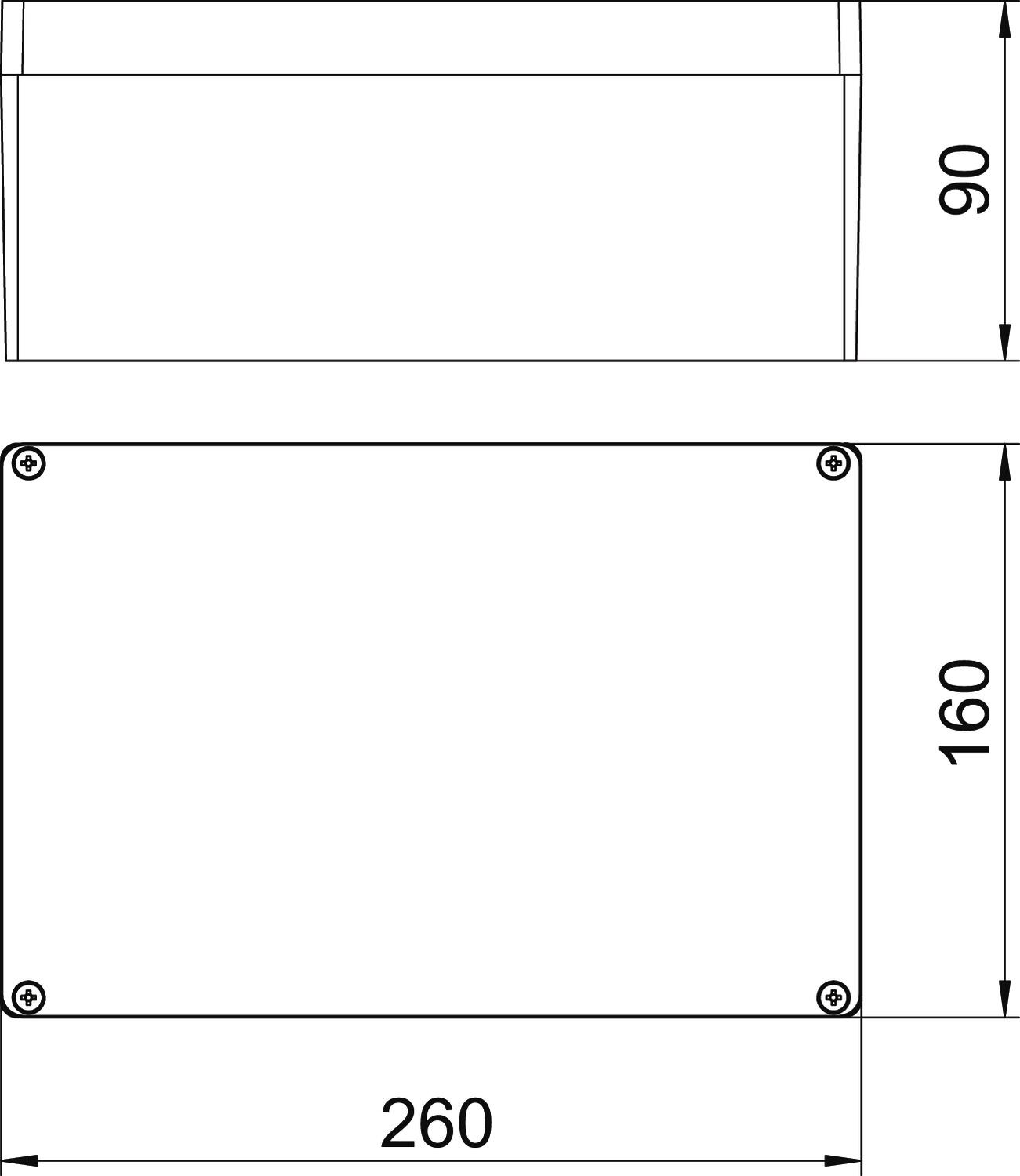

Barva srebrnosiva; RAL 7001 Dimenzija 260x160x90 Dolžina 260 mm Izvedba pokrova majhnega razdelilnika zaprto Maks. temperaturno območje uporabe 125 °C Material aluminijeva tlačna litina Min. temperaturno območje uporabe -40 °C Možnost priključitve da Notranje mere 229.5x149x94.5 mm Oblika pravokotno Odporen proti vremenskim vplivom da Površina plastificirano Primerno za zaščito pred udarom strele ne Primerno za zunanjo uporabo da Pritrditev pokrova privito S pokrovom da Širina 160 mm Višina 90 mm Vrsta zaščite IP66 Z montažno ploščo ne - Vsi tipi
-
Vsi tipi
- Prenosi
-
Podatkovni list Mx 261609 SGR / 2011328 , 0.22MB , pdfEU-Izjava o skladnosti Mx 261609 SGR / 2011328 , 0.05MB , pdfREACH Izjava o skladnosti Mx 261609 SGR / 2011328 , 0.12MB , pdfRoHS Izjava o skladnosti Mx 261609 SGR / 2011328 , 0.12MB , pdf
