Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm 90 | 60 | 21

morepic-1

morepic-2

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm

Št. art. 7215288 | EAN 4012196839582

Št. art. / Tip

Dolžina

Širina

Višina

Opis izdelka

Opis izdelka

Universal cable bracket for the vertical installation of cables in PYROLINE® Con fire protection ducts made of fibreglass-reinforced, lightweight concrete, as well as PYROLINE® Rapid made of sheet steel with an internal coating. The holders are plugged over the head of the loosened fastening screw and then screwed tight to it. The cables can be fastened using cable ties on the lugs or in the slots of the holder. This safely supports the cable weight. Plan at least two cable brackets per metre during installation.

Tehnični podatki

Tehnični podatki

Dimenzija	20x20
Dolžina	90 mm
Material	Jeklo
Mera B	21 mm
Mera b	8 mm
Mera H	21 mm

Mera I	60 mm
Mera L	90 mm
Površina	neprekinjeno cinkano v ognju
Širina	60 mm
Višina	21 mm
Vrsta pribora	drugo

Vsi tipi

Vsi tipi

Tip	Dolžina	Širina	Višina	Št. art.	Količina	Min. prodajna enota
LHS 20	90 mm	60 mm	21 mm	7215288	Kos	10 Kos
LHS 40	60 mm	90 mm	41 mm	7215290	Kos	10 Kos
LHS 60	60 mm	90 mm	41 mm	7215292	Kos	10 Kos

Prenosi

Podatkovni list LHS 20 / 7215288 , 0.18MB , pdf

Vodič Požarna zaščita v elektrotehniki – vodič za ognjevarne inštalacije v zgradbah , 2.10MB , pdf

Brošura Brošura Strokovnjaki , 2.10MB , pdf

Brošura Zwischendeckeninstallationen , 2.70MB , pdf

Letak Nosilec vodnika za razbremenitev natega v ognjevarnih kanalih , 0.23MB , pdf

Katalog Brandschutzkanäle , 8.99MB , pdf

Navodila za montažo Navodila za montažo ognjevarnega kanala PYROLINE® Con BSK , 15.07MB , pdf

Navodila za montažo Navodila za montažo ognjevarnega kanala PYROLINE® Con PLC , 14.60MB , pdf

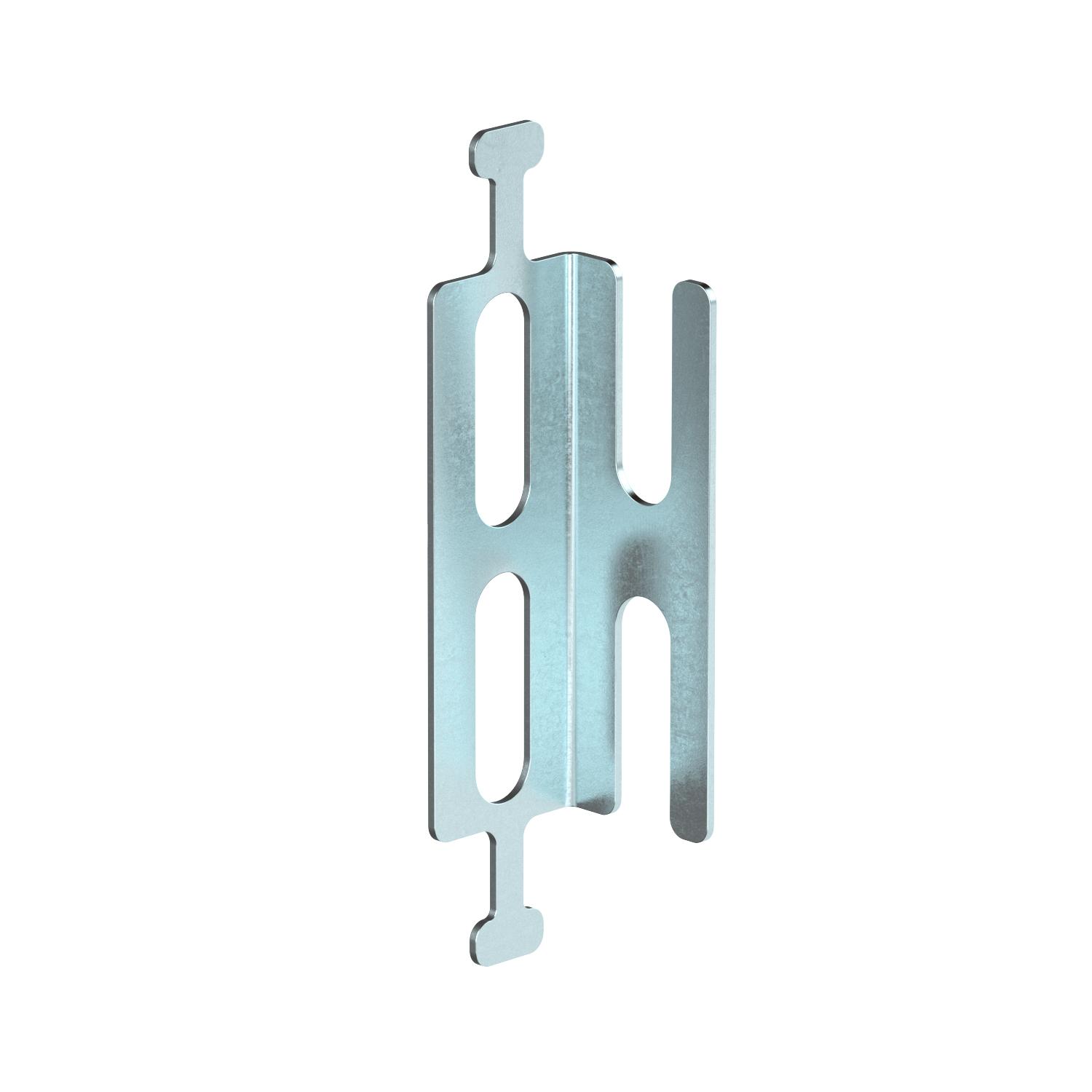

Grafika izdelka LHS 20 / 7215288, 54.62 kB, jpg

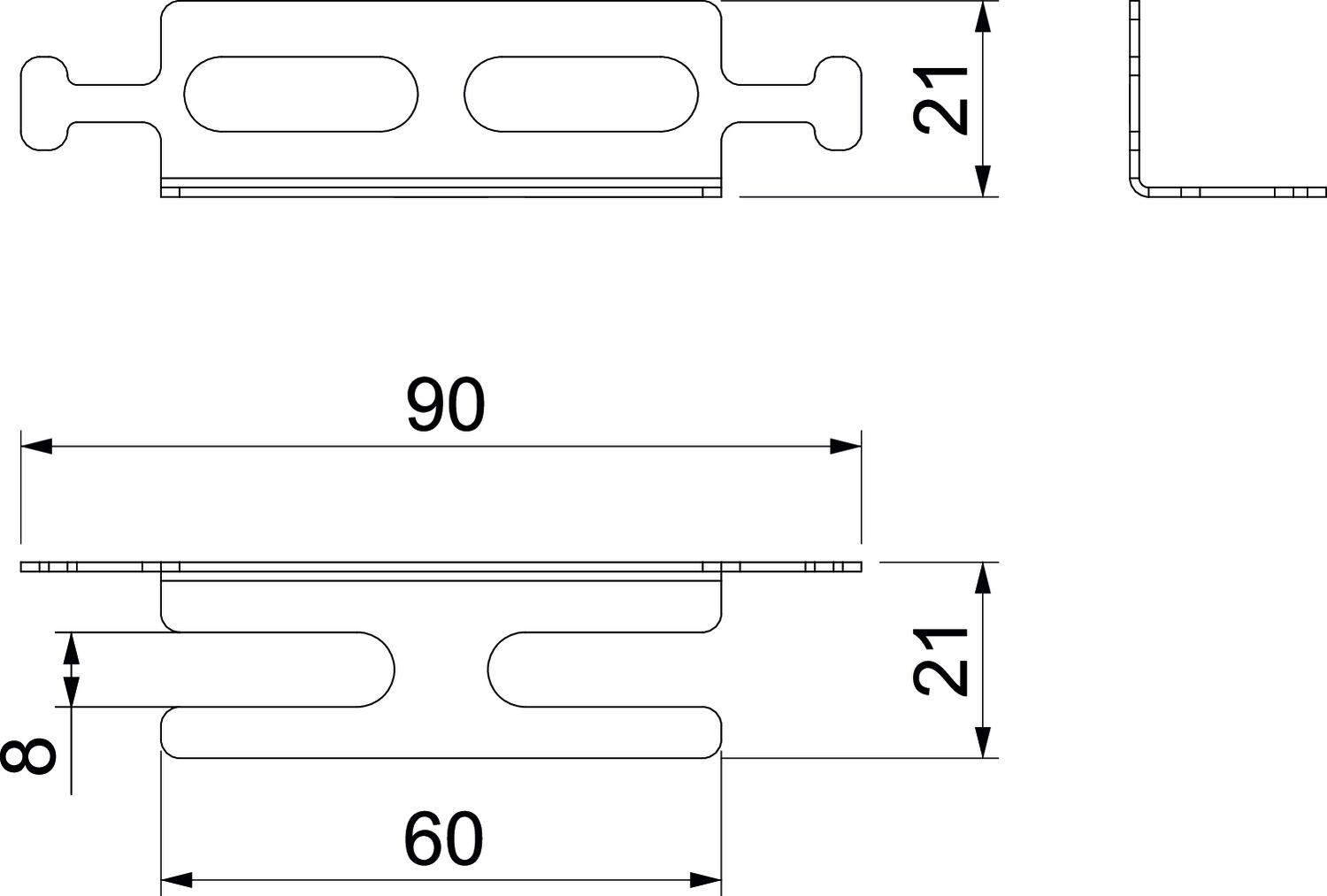

Dimenzionirana risba LHS 20 / 7215288, 55.03 kB, jpg

Za ta proizvod informativna besedila niso na voljo
