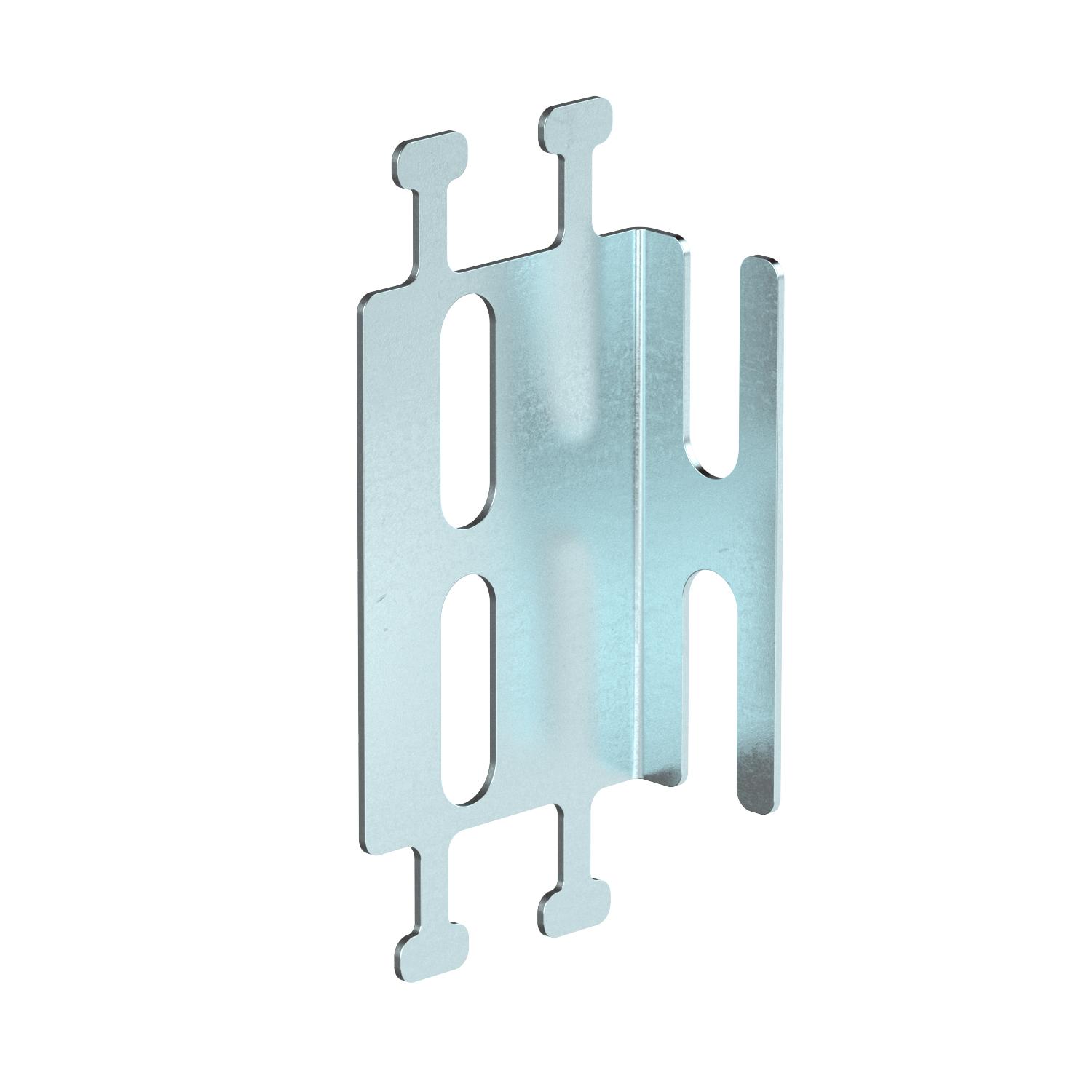

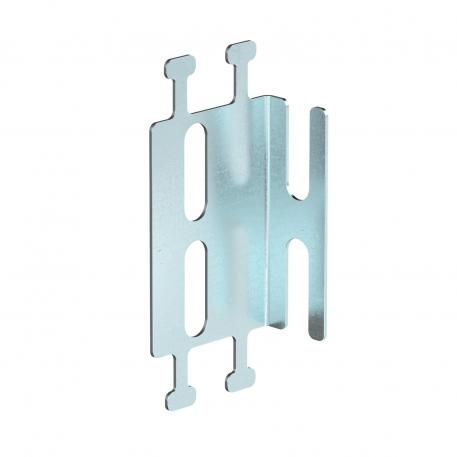

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm
Št. art. 7215290 | EAN 4012196839612
- Opis izdelka
-
Opis izdelka
Universal cable bracket for the vertical installation of cables in PYROLINE® Con fire protection ducts made of fibreglass-reinforced, lightweight concrete, as well as PYROLINE® Rapid made of sheet steel with an internal coating. The holders are plugged over the head of the loosened fastening screw and then screwed tight to it. The cables can be fastened using cable ties on the lugs or in the slots of the holder. This safely supports the cable weight. Plan at least two cable brackets per metre during installation.
- Tehnični podatki
-
Tehnični podatki

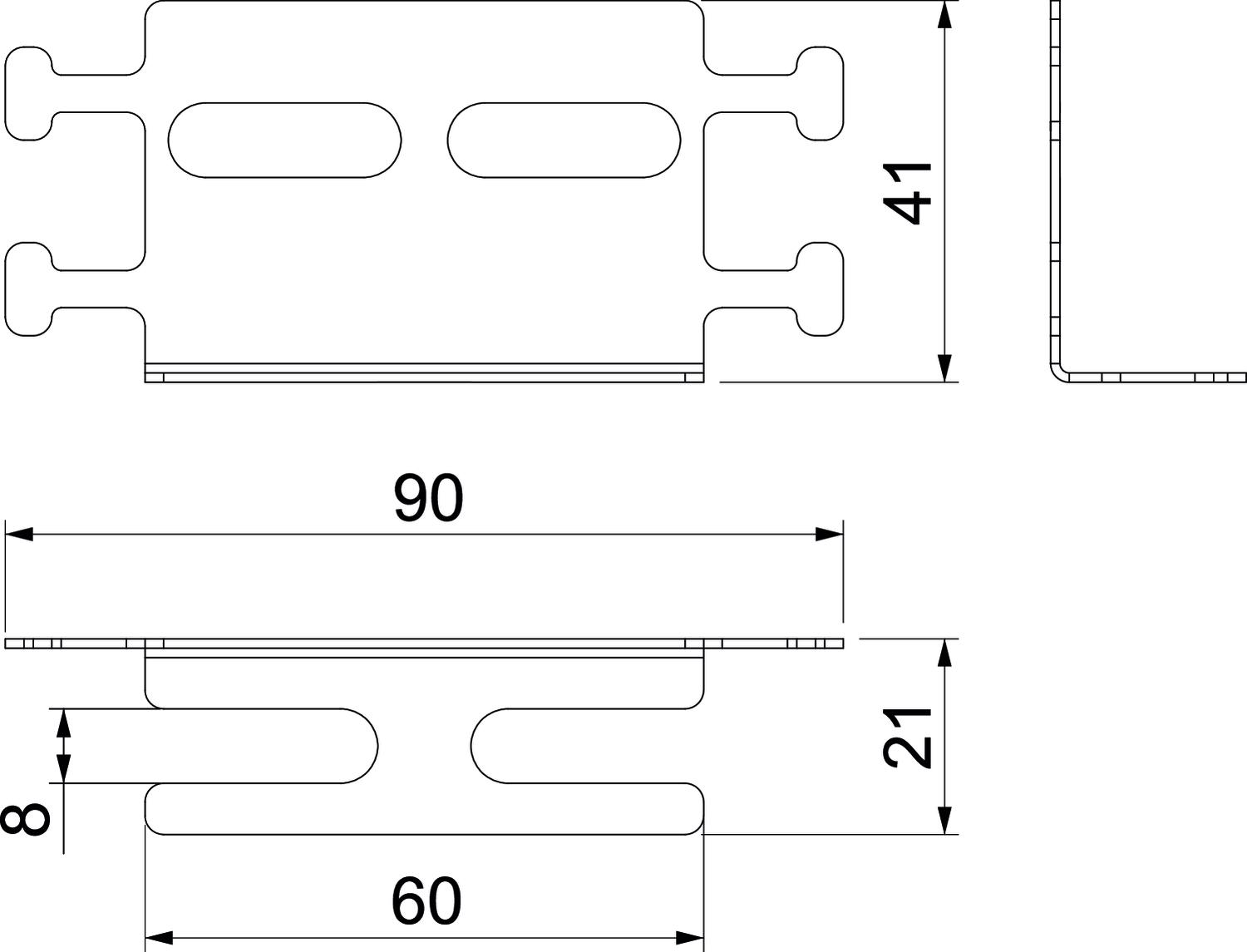

Dimenzija 40x20 Dolžina 60 mm Material Jeklo Mera b 8 mm Mera B 21 mm Mera H 41 mm Mera I 60 mm Mera L 90 mm Površina neprekinjeno cinkano v ognju Širina 90 mm Višina 41 mm Vrsta pribora drugo - Vsi tipi
- Prenosi
-
Podatkovni list LHS 40 / 7215290 , 0.16MB , pdfKatalog Brandschutzkanäle , 8.99MB , pdfNavodila za montažo Navodila za montažo ognjevarnega kanala PYROLINE® Con BSK , 15.07MB , pdfNavodila za montažo Navodila za montažo ognjevarnega kanala PYROLINE® Con PLC , 14.60MB , pdfZa ta proizvod informativna besedila niso na voljo
