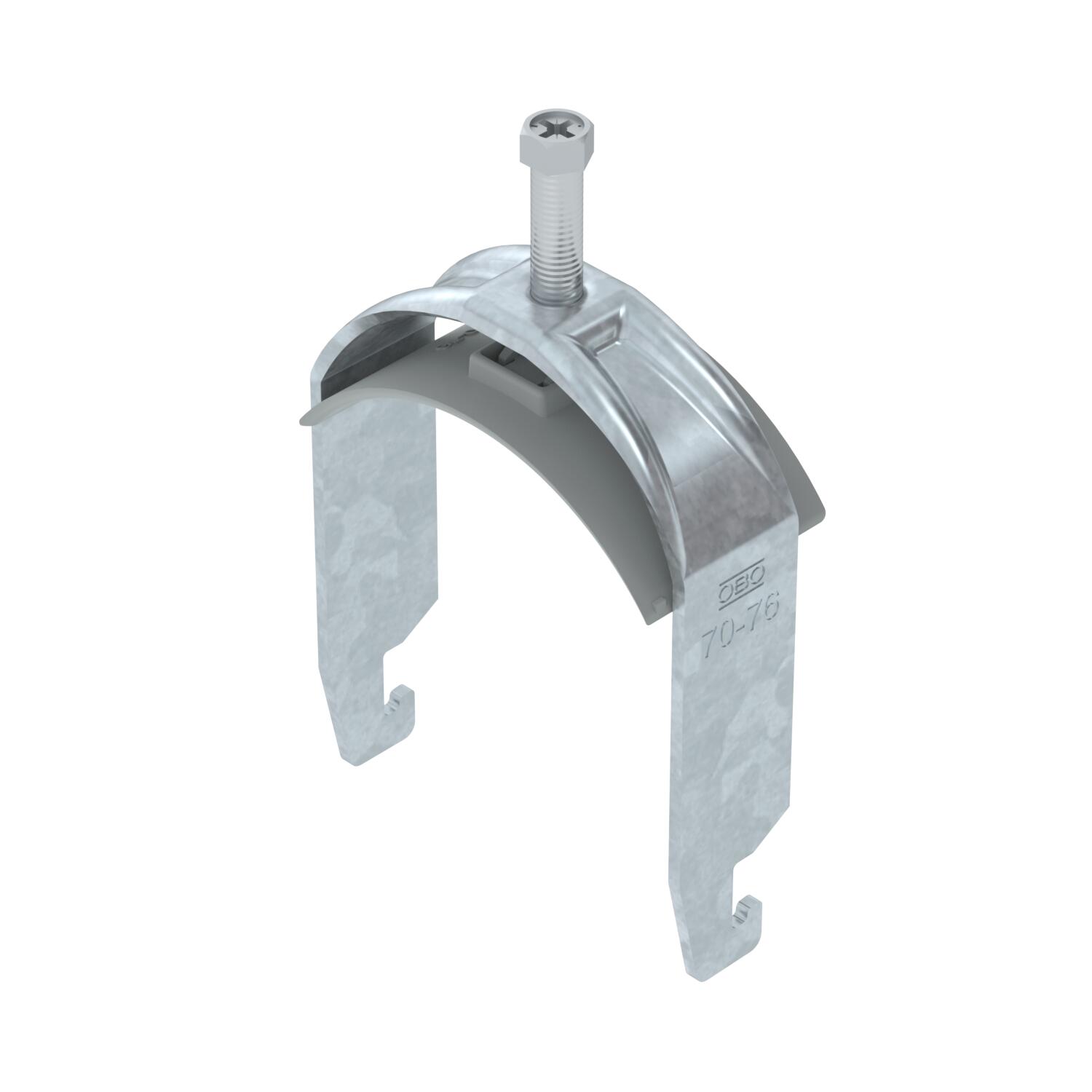

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, FT

Št. art. 1186776 | EAN 4012196851157

Opis izdelka

Opis izdelka

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.


  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
Tehnični podatki

Tehnični podatki

Brez halogenov da
Debelina pločevine 2,5 mm
Dimenzija 70-76mm
Dodatna površina vroče pocinkano
Dodatni material Jeklo
Dolžina 25 mm
Kakovost materiala kadi polipropilen
Maks. vpenjalno območje D 76 mm
Maks. Zatezni moment 5 Nm
Material Jeklo
Material kadi Plastika

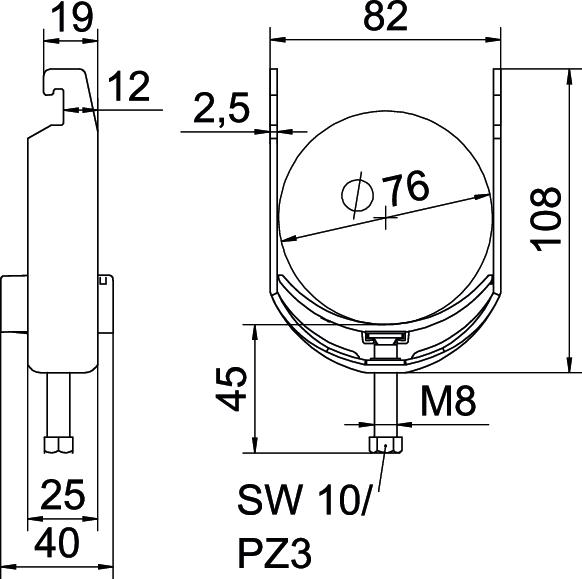

Mera A 25 mm
Mera B 82 mm
Mera C 40 mm
Mera G (mm) M8
Mera H 108 mm
Mera L 45 mm
Mera t 2,5 mm
Min. vpenjalno območje D 70 mm
Način montaže Jekleni montažni profil
Navoj M8
Površina vroče pocinkano
S plastično objemno spono da
Širina 82 mm
Širina utora 10 mm
Število kablov/cevi 1
Višina 108 mm
Z objemno spono ne
za premer cevi maks. 76 mm
za premer cevi min. 70 mm
za tirnico s širino zareze (z intervalom) maks. 22 mm
za tirnico s širino zareze (z intervalom) min. 18 mm
Zunanja dolžina 40 mm
Vsi tipi

Vsi tipi

Tip Min. vpenjalno območje D Maks. vpenjalno območje D Maks. Zatezni moment Št. art. Količina Min. prodajna enota
BS-U1-K-12 FT 8 mm 12 mm 3 Nm 1186702
100 Kos
BS-U1-K-16 FT 12 mm 16 mm 3 Nm 1186709
100 Kos
BS-U1-K-22 FT 16 mm 22 mm 3 Nm 1186716
100 Kos
BS-U1-K-28 FT 22 mm 28 mm 3 Nm 1186722
100 Kos
BS-U1-K-34 FT 28 mm 34 mm 3 Nm 1186729
100 Kos
BS-U1-K-40 FT 34 mm 40 mm 3 Nm 1186736
100 Kos
BS-U1-K-46 FT 40 mm 46 mm 5 Nm 1186742
100 Kos
BS-U1-K-52 FT 46 mm 52 mm 5 Nm 1186749
100 Kos
BS-U1-K-58 FT 52 mm 58 mm 5 Nm 1186756
100 Kos
BS-U1-K-64 FT 58 mm 64 mm 5 Nm 1186762
100 Kos
BS-U1-K-70 FT 64 mm 70 mm 5 Nm 1186769
50 Kos
BS-U1-K-76 FT 70 mm 76 mm 5 Nm 1186776
25 Kos
BS-U1-K-82 FT 76 mm 82 mm 5 Nm 1186782
25 Kos
BS-U1-K-90 FT 82 mm 90 mm 5 Nm 1186789
25 Kos
BS-U1-K-100 FT 90 mm 100 mm 5 Nm 1186797
25 Kos
