Connection element for installation in the insulated air-termination rod isFang IN 28 | H2/200 | 23
morepic-1 morepic-2 video-1

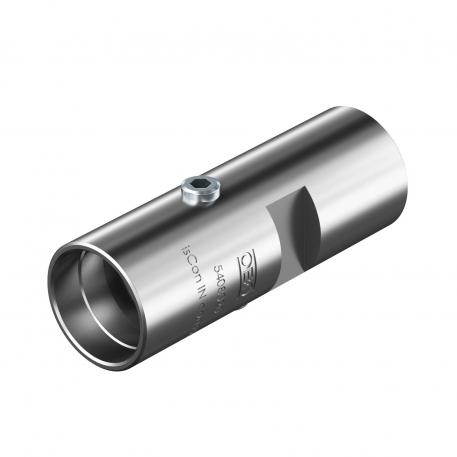

Connection element for installation in the insulated air-termination rod isFang IN

Št. art. 5408020 | EAN 4012196591701

28 mm
Opis izdelka

Opis izdelka

• For the isCon® Premium conductor
• Cable connection and routing in the insulated air-termination rod
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 200 kA (lightning protection class I)
  • Lightning current-tested
Tehnični podatki

Tehnični podatki

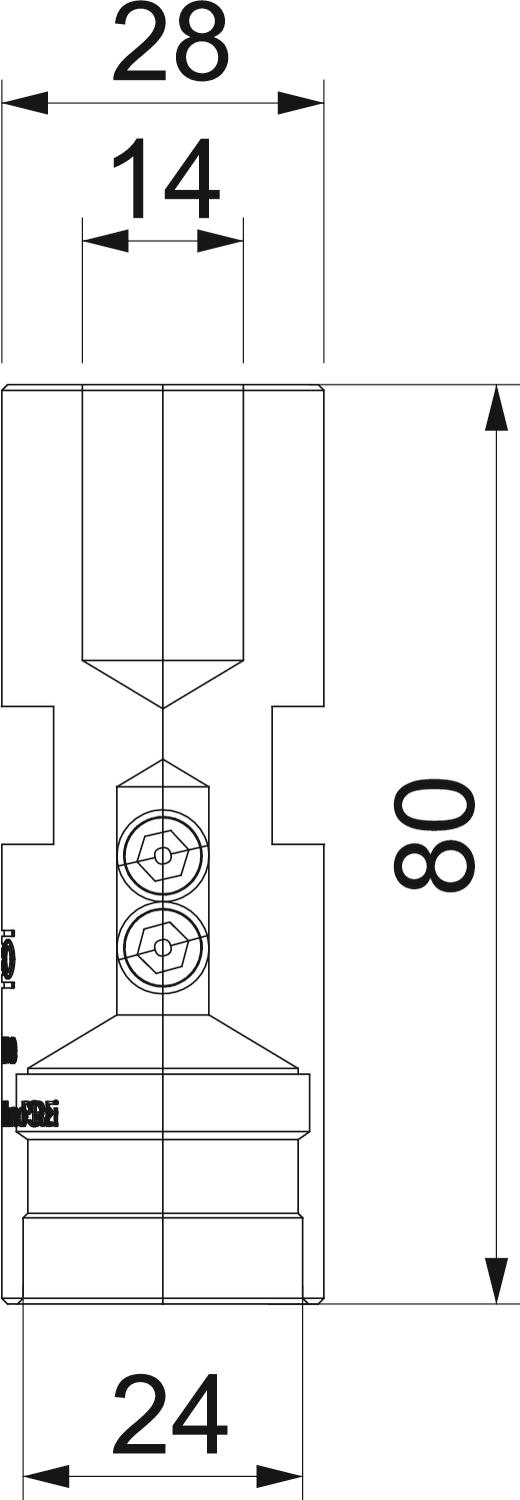

Dimenzija Ø23mm
Maks. vpenjalno območje 23 mm
Material Nerjaveče jeklo 1.4301
Mera D min. 28 mm
Prileg 23 mm
Primerno za povezavo drugo
Sposobnost prenašanja toka strele H2/200 kA
Vsi tipi

Vsi tipi

Tip Mera D min. Sposobnost prenašanja toka strele Prileg Št. art. Količina Min. prodajna enota
isCon IN con 2 28 mm H1/150 kA 20 mm 5408019
1 Kos
isCon IN con PRE 28 mm H2/200 kA 23 mm 5408020
1 Kos
isCon IN connect 28 mm H1/150 kA 23 mm 5408024
1 Kos
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Stripping tool for isCon® conductor Stripping tool for isCon® conductor isCon stripper 2 5408013
1 Kos
