Countersunk head screw for PYROLINE® Con fire protection ducts 80 | M4,5
morepic-1 morepic-2 video-1 video-2

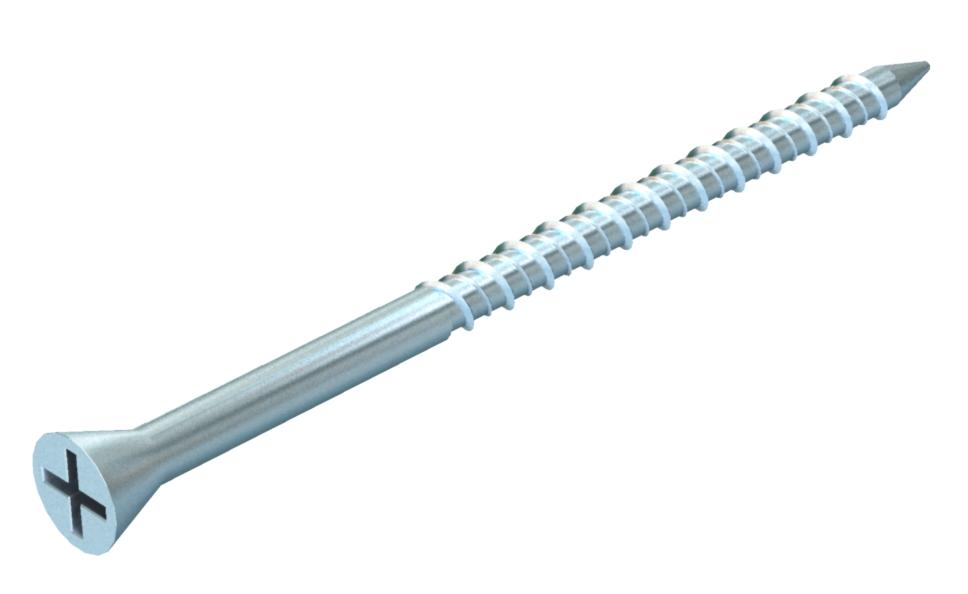

Countersunk head screw for PYROLINE® Con fire protection ducts

Št. art. 7215412 | EAN 4012196887774

7215412 / KSS 4.5x80
80 mm
M4,5
Opis izdelka
Opis izdelka
Countersunk head screw as spare part for PYROLINE® Con fire protection ducts, to fasten lids, end pieces, wall connection collars and doublers with a plate thickness of 40–60 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection duct for wall mounting
  • Fire protection duct for ceiling mounting
  • Fire resistance class I120
  • Razred očuvanja funkcije E90
Tehnični podatki

Tehnični podatki

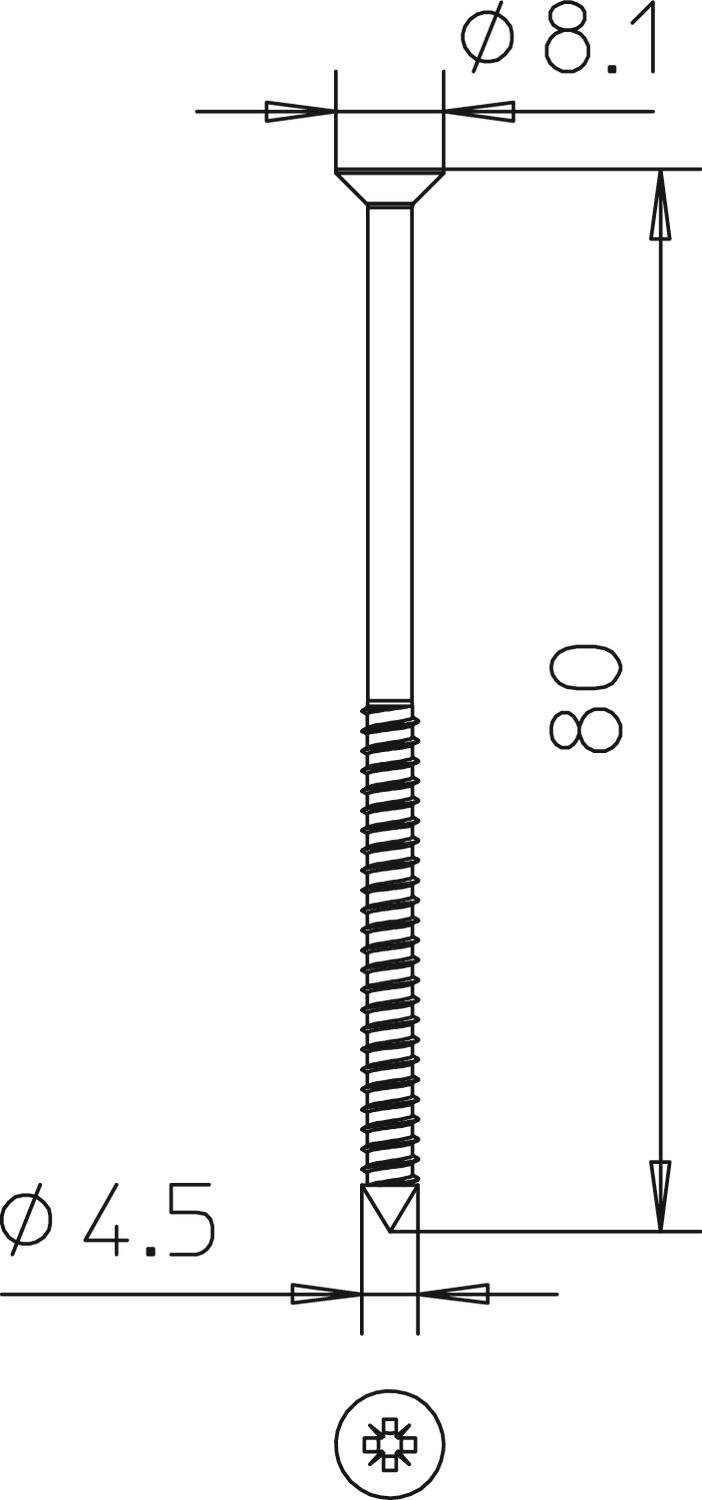

Dimenzija 4,5x80
Dimenzije 4,5 x 80
Dolžina 80 mm
Material Jeklo
Metrični navoj 4,5
Navoj M4,5
Površina galvansko cinkano
Vijačni sistem Phillips PH
Vsi tipi

Vsi tipi

Tip Dolžina Navoj Št. art. Količina Min. prodajna enota
KSS 4.5x80 80 mm M4,5 7215412
50 Kos
