Data technology support, 1 module, straight outlet, type C, without dust protection slider ne | črno-siva; RAL 7021

Data technology support, 1 module, straight outlet, type C, without dust protection slider

Št. art. 6119282 | EAN 4012195887348

Št. art. / Tip	6119282 / DTG-02C SWGR1

S protiprašno zaščito	ne

Barva	črno-siva; RAL 7021

Opis izdelka

Opis izdelka

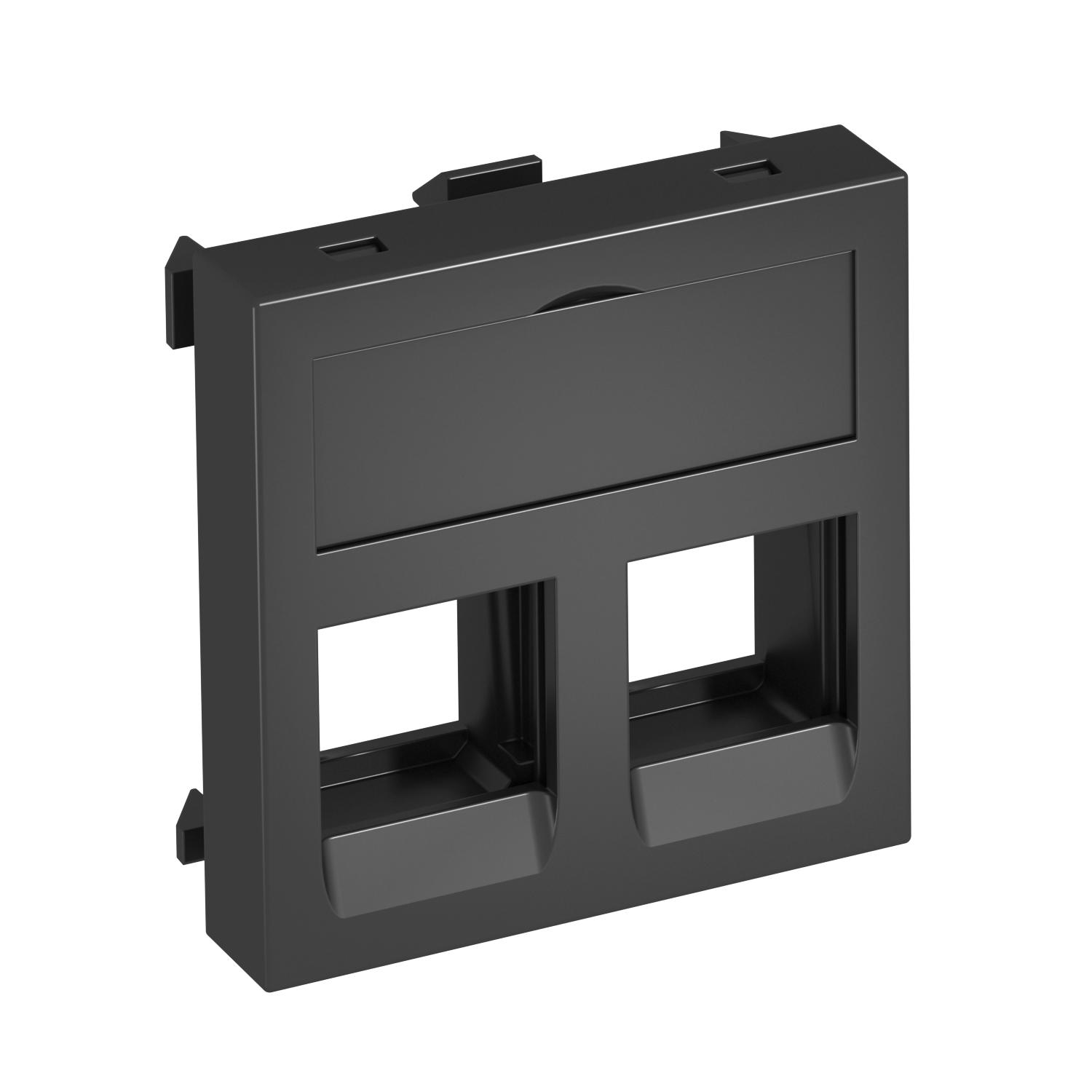

Data technology support with straight outlet and without a locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type C has a mounting opening of 19.30 x 14.80 mm and is designed for direct fastening of the data connection modules in the mounting opening.

The type C data technology support (without dust protection slider) is suitable for accepting the following data connection modules: 3M: Volition K6, K10 and Cat. 6A.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.

Tehnični podatki

Tehnični podatki

Barva	črno-siva; RAL 7021
Brez halogenov	da

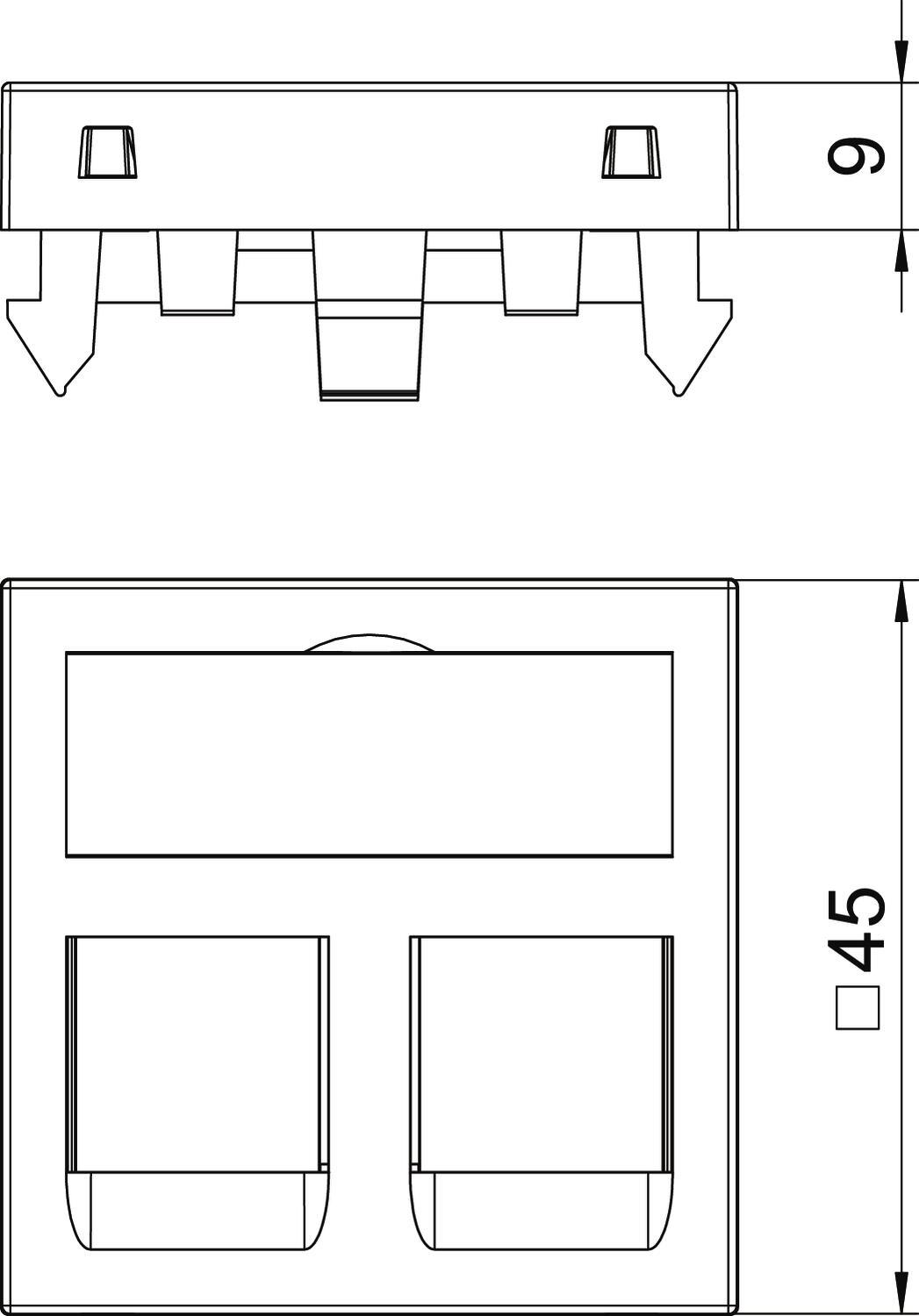

Dimenzija	45x45mm
Globina	9 mm
Izvedba površine	brez leska
Lestenčna sponka	ne
Material	Polikarbonat
Montažna odprtina	Tip C
Možnosti natezne razbremenitve	ne
Način pritrditve	zaskočiti
Nosilni obroč	ne

Označevalno polje	z označevalnim poljem
Poklopni pokrov	ne
prozorna	ne
S protiprašno zaščito	ne
Sestava	Osnovni element z osrednjo pokrivno ploščo
Širina	45 mm
Uporaba	Vgraden podatkovni konektor
Višina	45 mm
Vrsta zaščite	IP20
Z natisom	ne
