Device support for CEE installation, system length 208 mm, with CEE

Device support for CEE installation, system length 208 mm, with CEE

Name: Device support for CEE installation, system length 208 mm, with CEE
Brand: OBO Bettermann
SKU: 7407667

Št. art. 7407667 | EAN 4012195450825

Opis izdelka

Opis izdelka

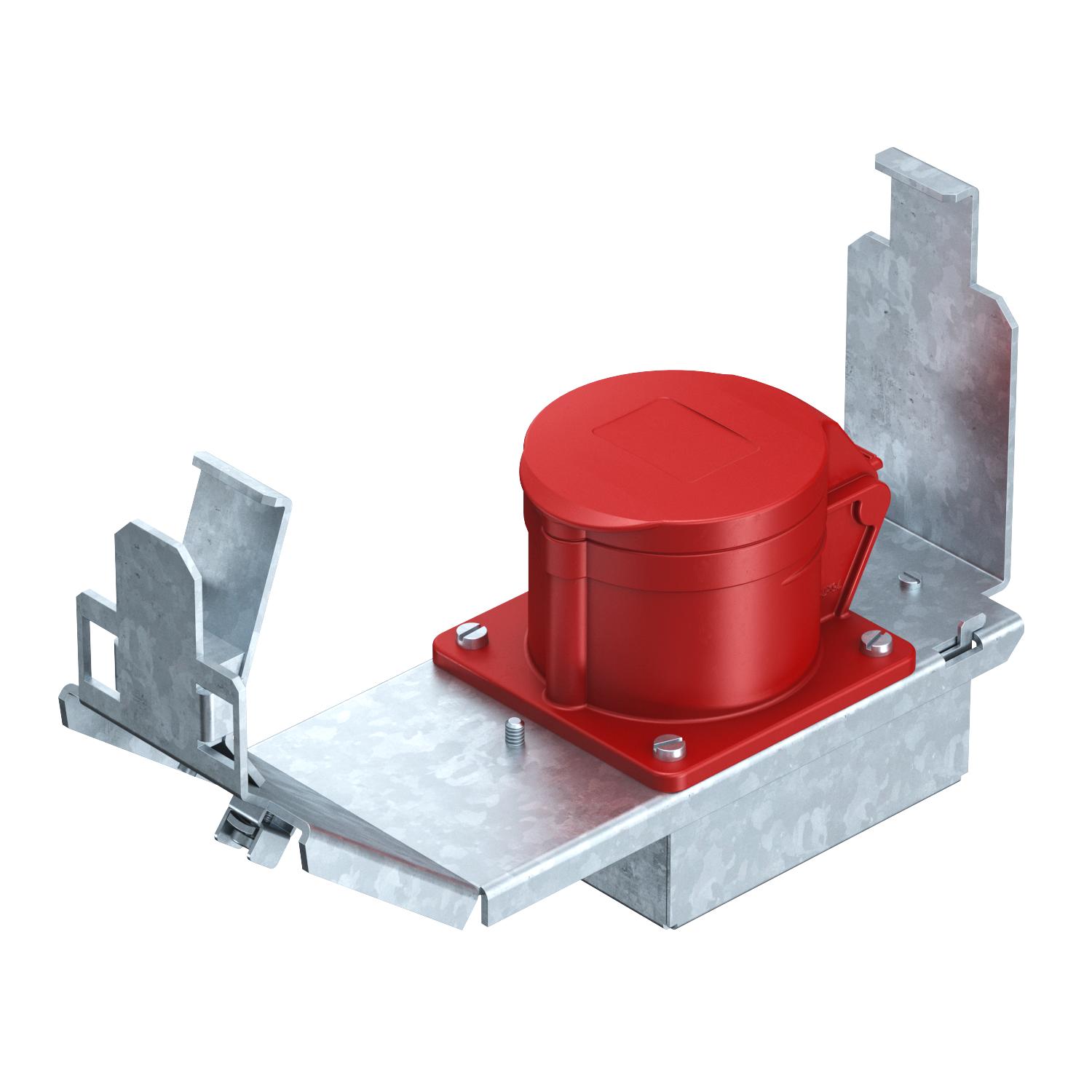

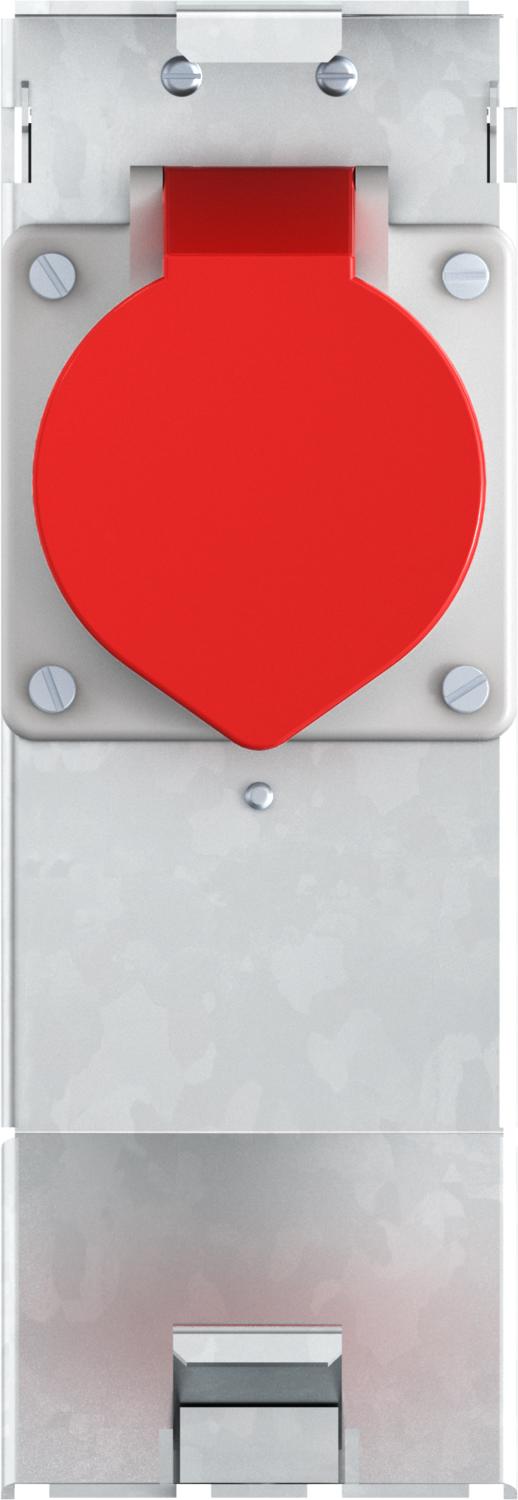

Device support of nominal size 3 with a CEE plug connection 16 A for installation in service outlets and cassettes of nominal sizes R7, 9 and R9. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm when using a straight connector and 160 mm when an angled connector is used.

Tehnični podatki

Tehnični podatki

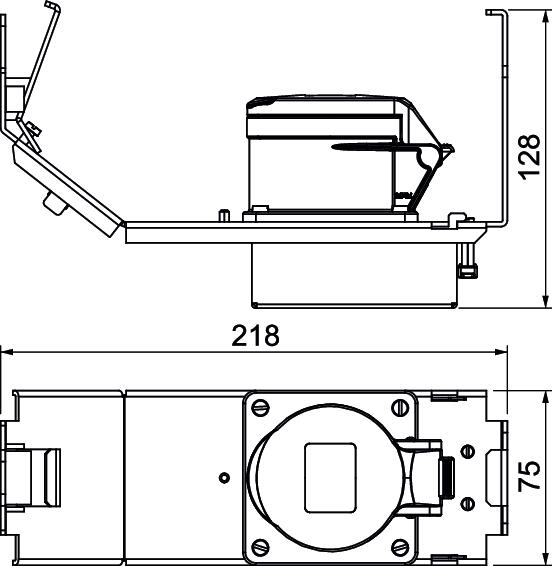

Dimenzija	218x75x128
Material	Jeklo
Možnost vgradnje tesnila	ne
Površina	neprekinjeno cinkano v ognju
Primerno za dvojno talno vgradnjo	da

Primerno za talni kanal	da
Primerno za talni kanal, prekrit z estrihom	da
Primerno za votlo talno vgradnjo	da
Primerno za zaprti talni kanal v višini estriha	da
Talna pločevina	ne

Vsi tipi
