Fastening panels
Št. art. 6288005 | EAN 4012195676195
- Opis izdelka
-
Opis izdelka

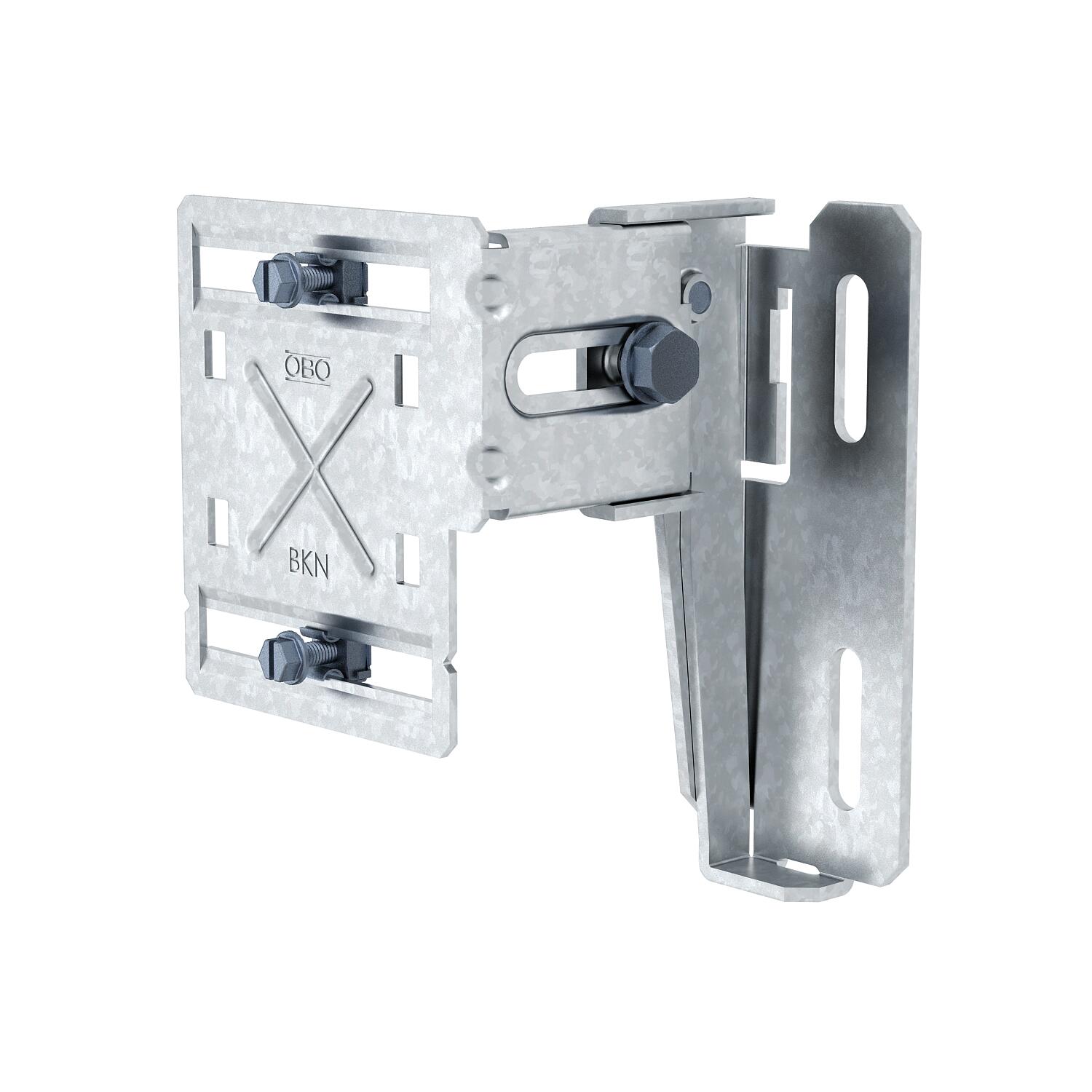

Fastening panel for mounting device installation trunking on skirting board constructions and as a support for the convection grid. The fastening panel can be used for all Rapid 80 device installation trunking systems of type GK and GA. When mounting plastic GK device installation trunking, the matching wall panel adapter is also required. The connection profile is required for mounting double trunking of type GS-D70170 and GS-D90170, as well as for GS trunking with a nominal width of 210 mm.
The mesh slats are simply attached to the slat holder.
-
- Tehnični podatki
-
Tehnični podatki

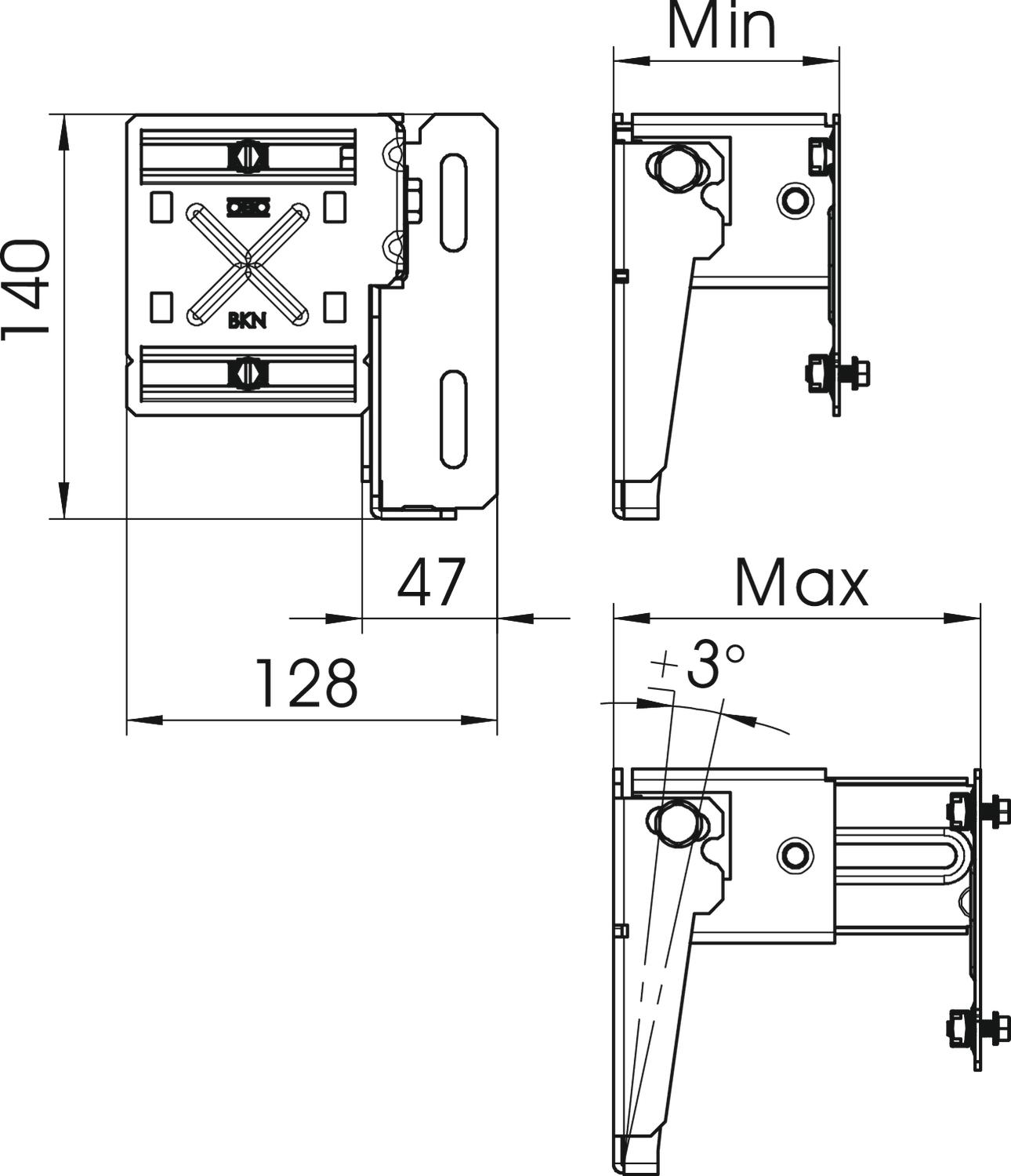

Dimenzija 140x128x205 Dolžina 205 mm Izvedba 120–205 mm Izvedba Montaža na steno Maks. odmik od stene 205 mm Material Jeklo Min. odmik od stene 120 mm Montaža kanala priviti Način pritrditve mogoče priviti Površina neprekinjeno cinkano v ognju Širina 128 mm Višina 140 mm - Vsi tipi
- Prenosi
-
Podatkovni list BKN120 205 / 6288005 , 0.22MB , pdfIzjava o skladnosti BKN120 205 / 6288005 , 0.13MB , pdfZK Izjava o skladnosti BKN120 205 / 6288005 , 0.14MB , pdfREACH Izjava o skladnosti BKN120 205 / 6288005 , 0.12MB , pdfRoHS Izjava o skladnosti BKN120 205 / 6288005 , 0.28MB , pdfZa ta proizvod informativna besedila niso na voljo
