Opomba: ta izdelek je ukinjen.

Fire protection duct PYROLINE® Con D BSK I120/E90 1000 | 280 | 160 | 185 | 105

Fire protection duct PYROLINE® Con D BSK I120/E90

Št. art. 7215228 | EAN 4012196887538

Št. art. / Tip

Dolžina	1000 mm

Mera B

Mera b

Mera H	185 mm

Mera H	105 mm

Opis izdelka

Opis izdelka

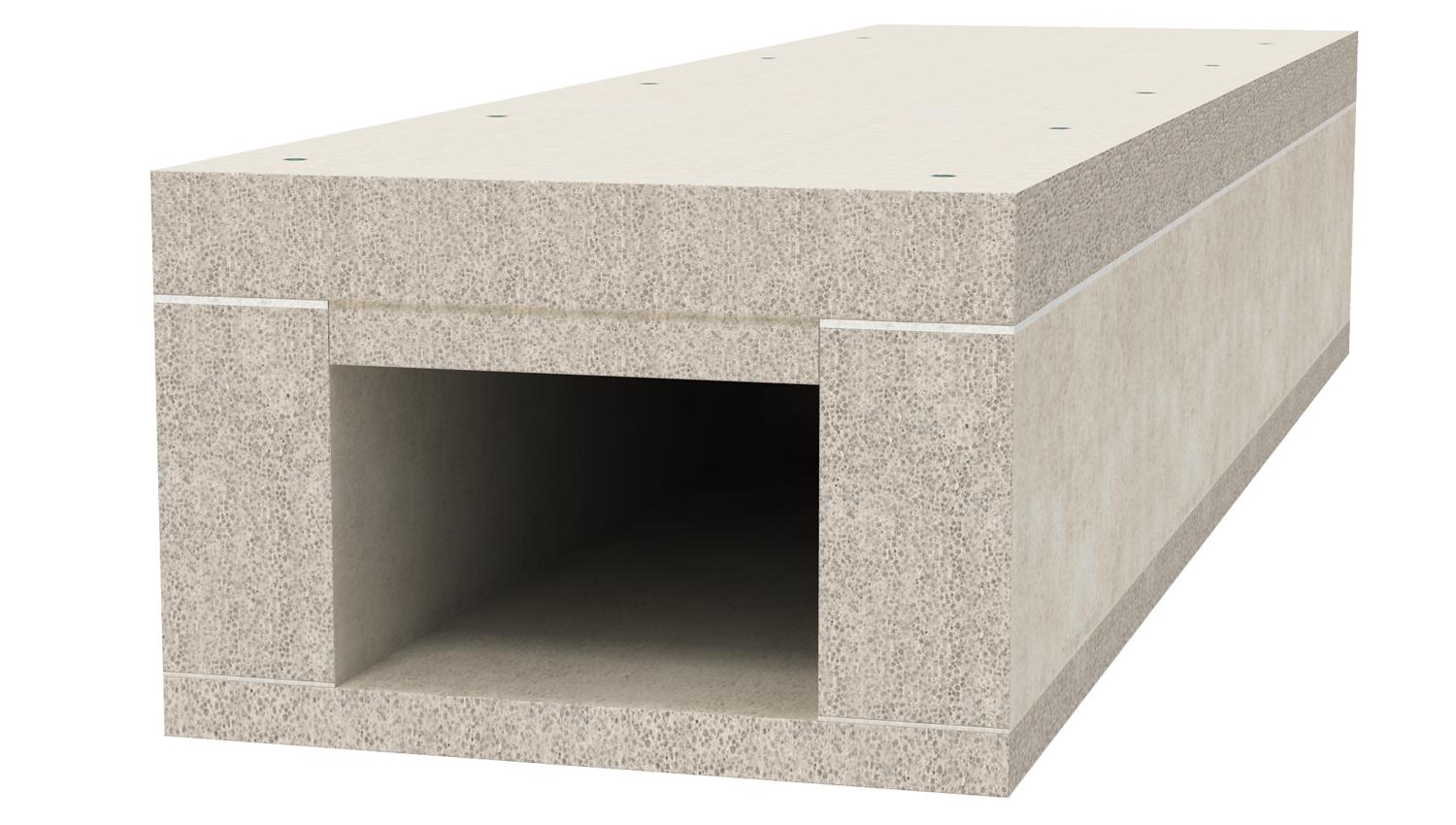

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I120 as I duct according to DIN 4102 Part 11 and classification E90 as E duct according to DIN 4102 Part 12.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strips.

Tehnični podatki

Tehnični podatki

Barva	siva
Dimenzija	105x160
Dolžina	1000 mm
Material	Beton s steklenimi vlakni
Material izolirnega materiala	Lahko beton s steklenimi vlakni

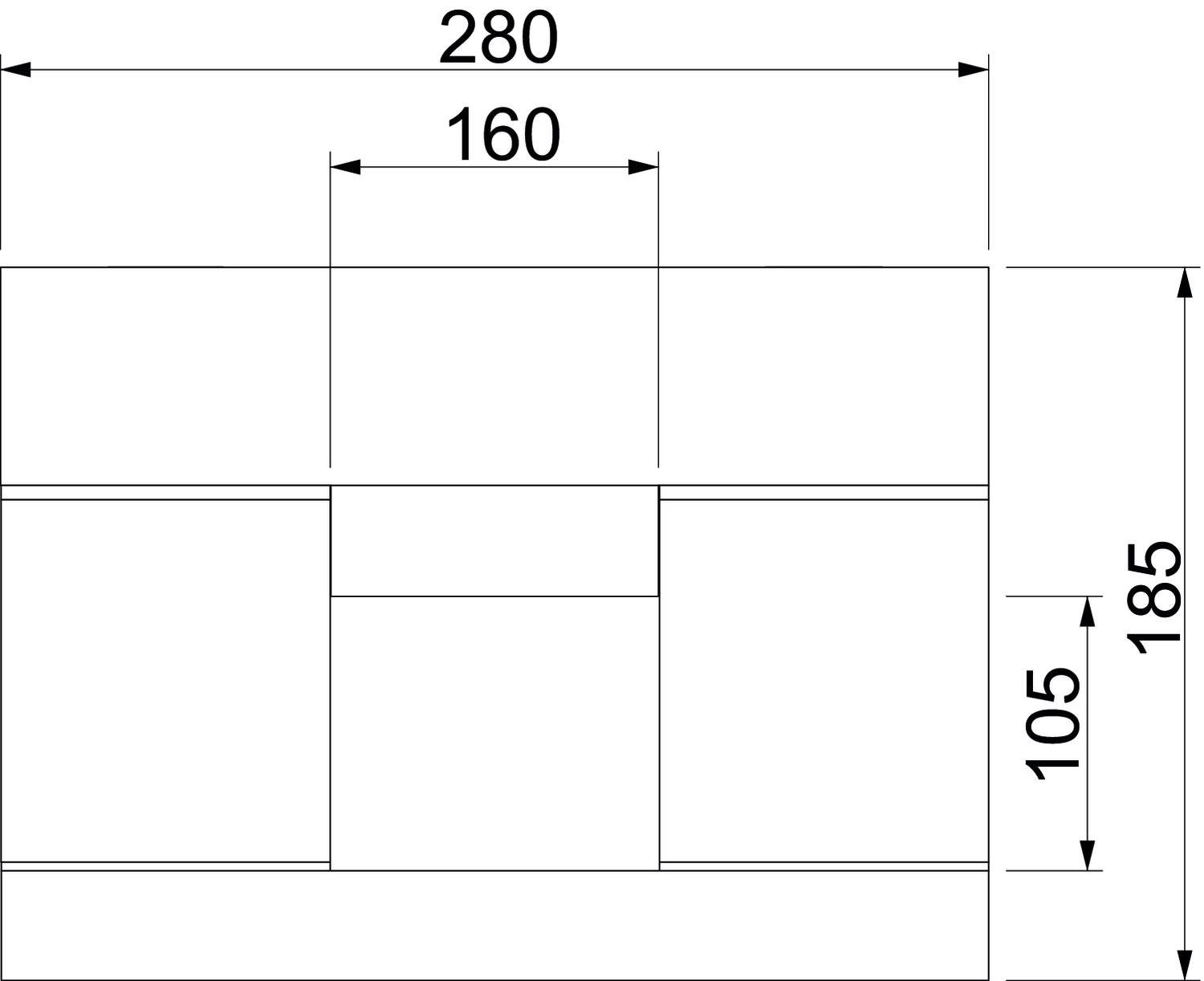

Mera B	280 mm
Mera b	160 mm
Mera H	105 mm

Mera H	185 mm
Možnost ločilnih pregrad	da
Oplaščenje	brez
Pritrditev pokrova	priviti
Razred požarne odpornosti E – ohranjevanje funkcij	90
Razred požarne odpornosti I – inštalacijski kanal	120
S perforacijo	ne
Število proti ognju odpornih strani	3

Vsi tipi

Vsi tipi

Tip	Dolžina	Mera B	Mera b	Mera H	Mera H	Št. art.	Količina	Min. prodajna enota
BSK 121016	1000 mm	280 mm	160 mm	185 mm	105 mm	7215228	m	1 m
BSK 121026	1000 mm	380 mm	260 mm	185 mm	105 mm	7215234	m	1 m

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464	Kos	1 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288	Kos	10 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290	Kos	10 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm	LHS 60	7215292	Kos	10 Kos
