Fire protection duct PYROLINE® Con D BSK I120/E90 1000 | 330 | 210 | 130 | 50

Fire protection duct PYROLINE® Con D BSK I120/E90

Št. art. 7215222 | EAN 4012196887477

Št. art. / Tip

Dolžina	1000 mm

Mera B

Mera b

Mera H	130 mm

Mera H	50 mm

Opis izdelka

Opis izdelka

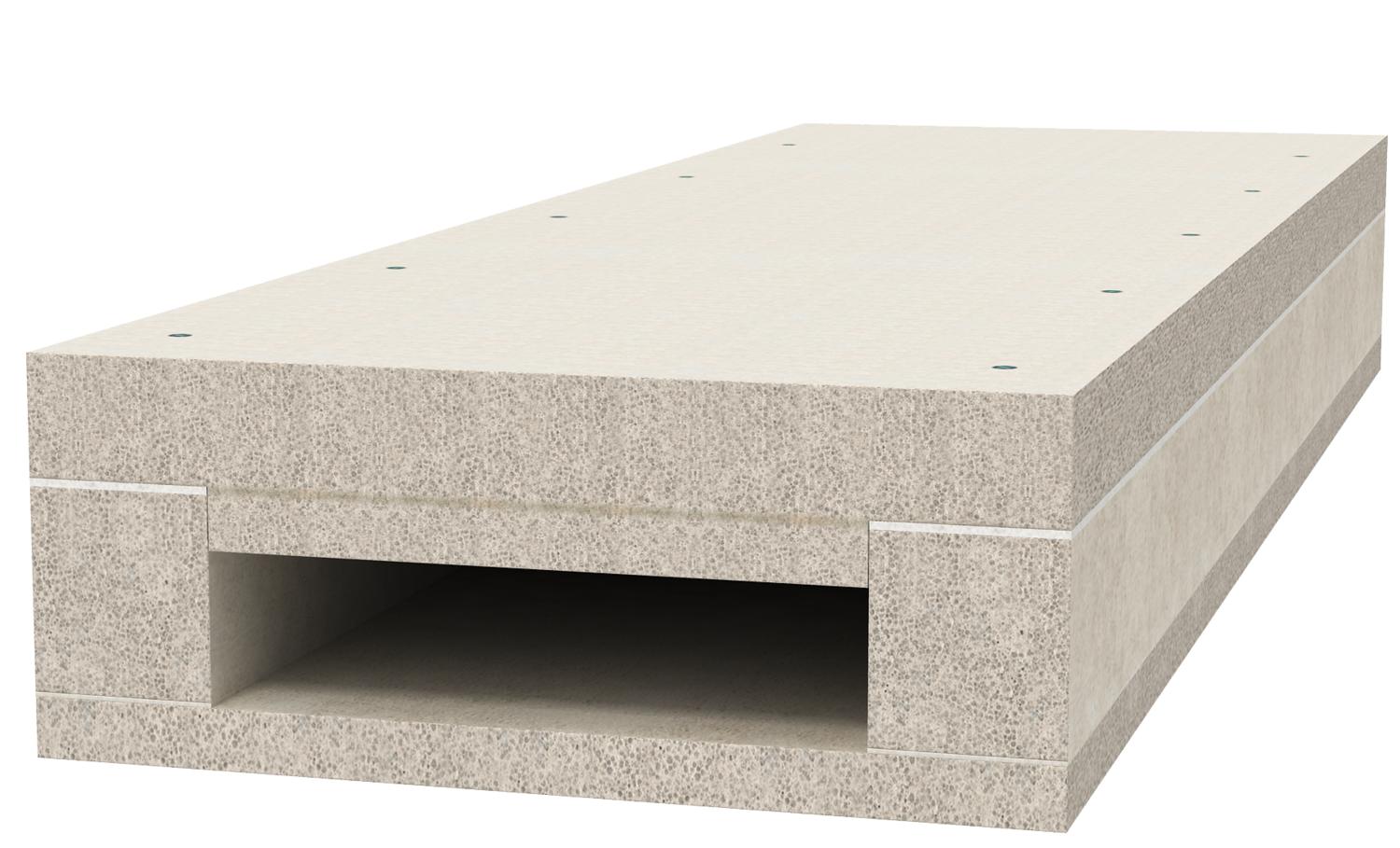

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I120 as I duct according to DIN 4102 Part 11 and classification E90 as E duct according to DIN 4102 Part 12.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strips.

Tehnični podatki

Tehnični podatki

Barva	siva
Dimenzija	50x210
Dolžina	1000 mm
Korisni presjek	10500 mm²
Material	Beton s steklenimi vlakni
Material izolirnega materiala	Lahko beton s steklenimi vlakni

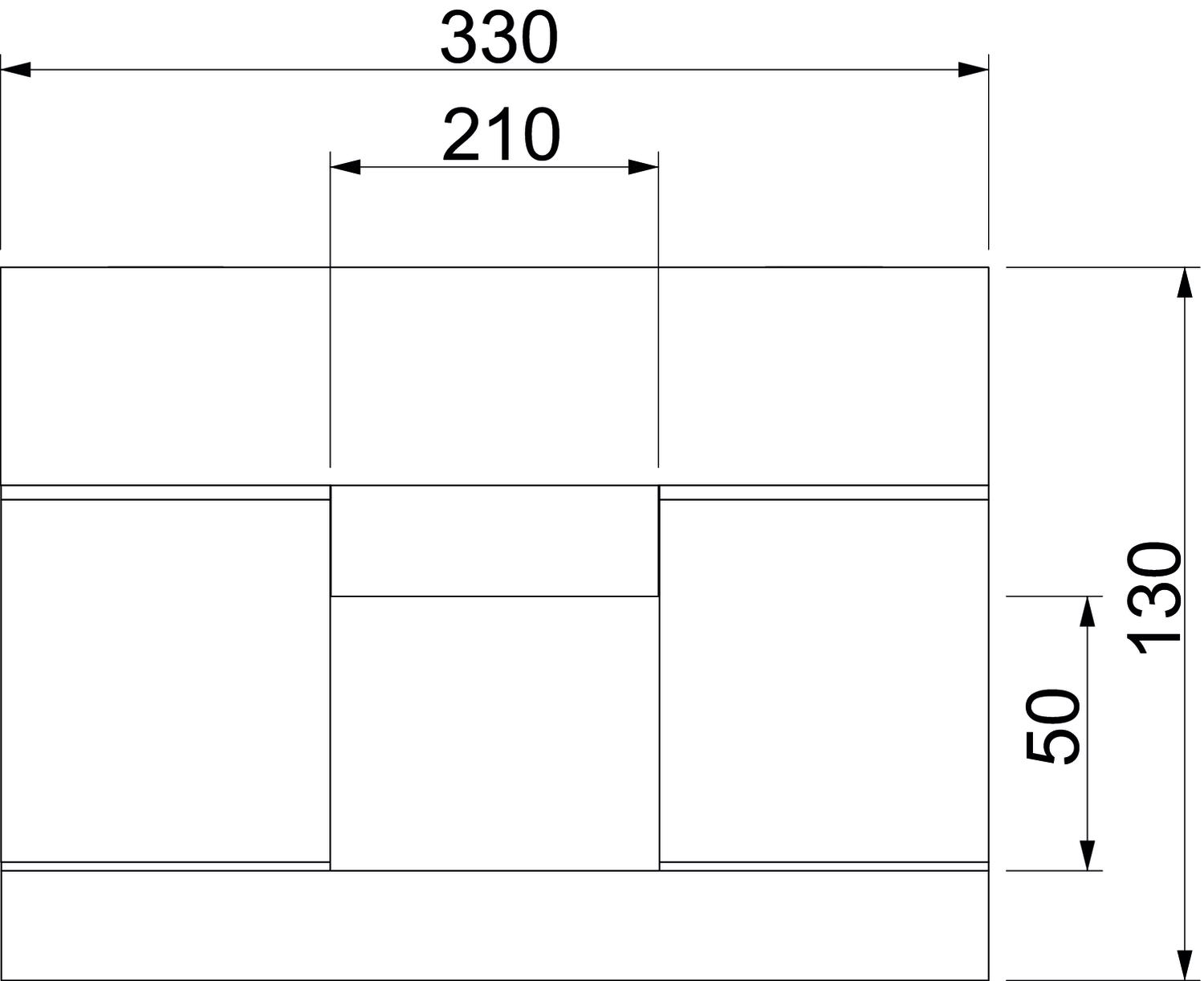

Mera B	330 mm
Mera b	210 mm
Mera H	50 mm
Mera H	130 mm

Možnost ločilnih pregrad	da
Oplaščenje	brez
Pritrditev pokrova	priviti
Razred požarne odpornosti E – ohranjevanje funkcij	90
Razred požarne odpornosti I – inštalacijski kanal	120
S perforacijo	ne
Širina	330 mm
Število proti ognju odpornih strani	3
Višina	130 mm

Vsi tipi

Vsi tipi

Tip	Dolžina	Mera B	Mera b	Mera H	Mera H	Št. art.	Količina	Min. prodajna enota
BSKD12-K0506	1000 mm	180 mm	60 mm	130 mm	50 mm	7215210	m	1 m
BSKD12-K0511	1000 mm	230 mm	110 mm	130 mm	50 mm	7215216	m	1 m
BSKD12-K0521	1000 mm	330 mm	210 mm	130 mm	50 mm	7215222	m	1 m

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464	Kos	1 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288	Kos	10 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290	Kos	10 Kos
