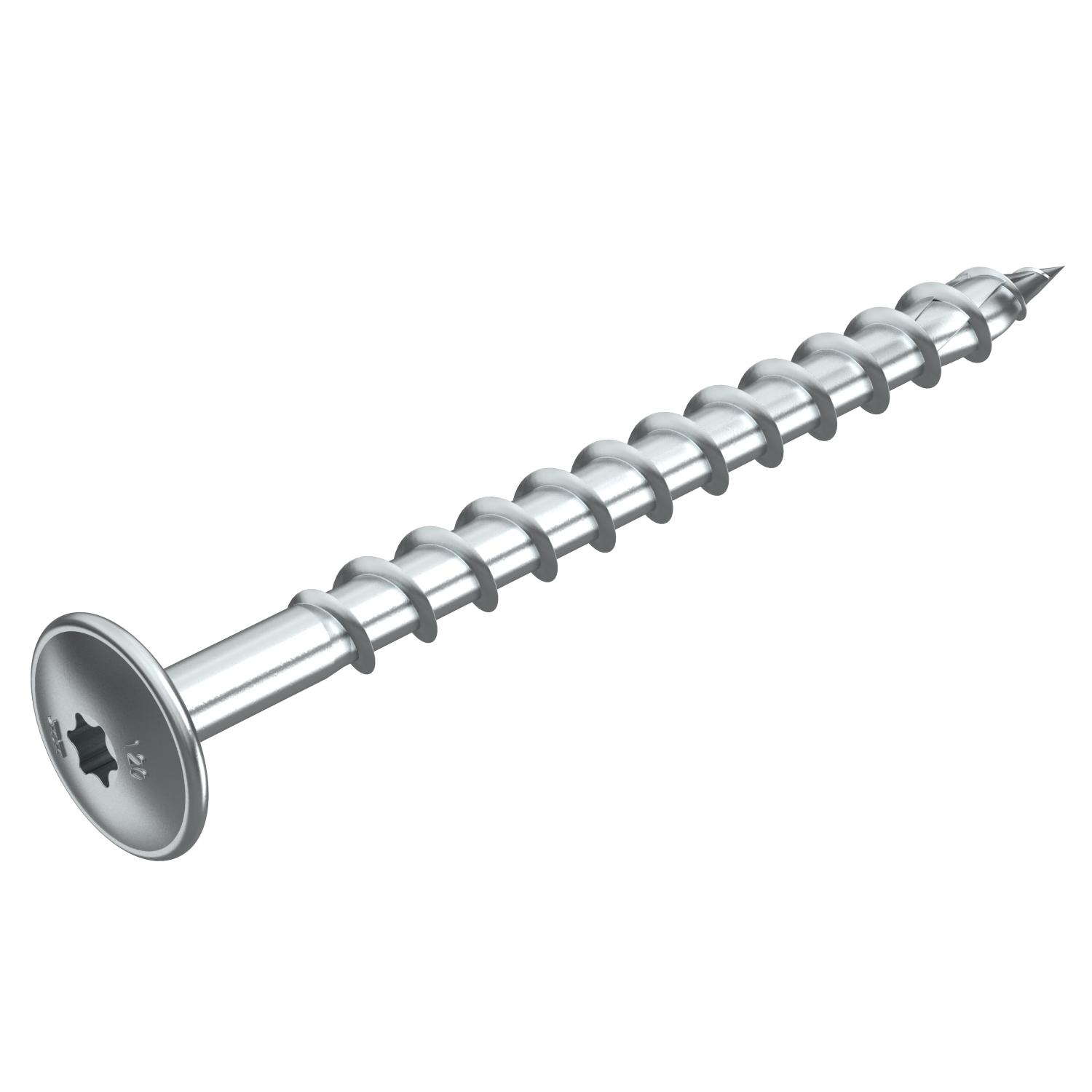

Flange head screw HT 10

Št. art. 3498140 | EAN 4012196563968

10 mm
Opis izdelka

Opis izdelka

Self-tapping wood screw for fireproof fastening of cable systems for the maintenance of electrical function according to DIN 4102 Part 12 on supporting wooden structures. The flange head shape allows installation without an additional washer.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Tehnični podatki

Tehnični podatki

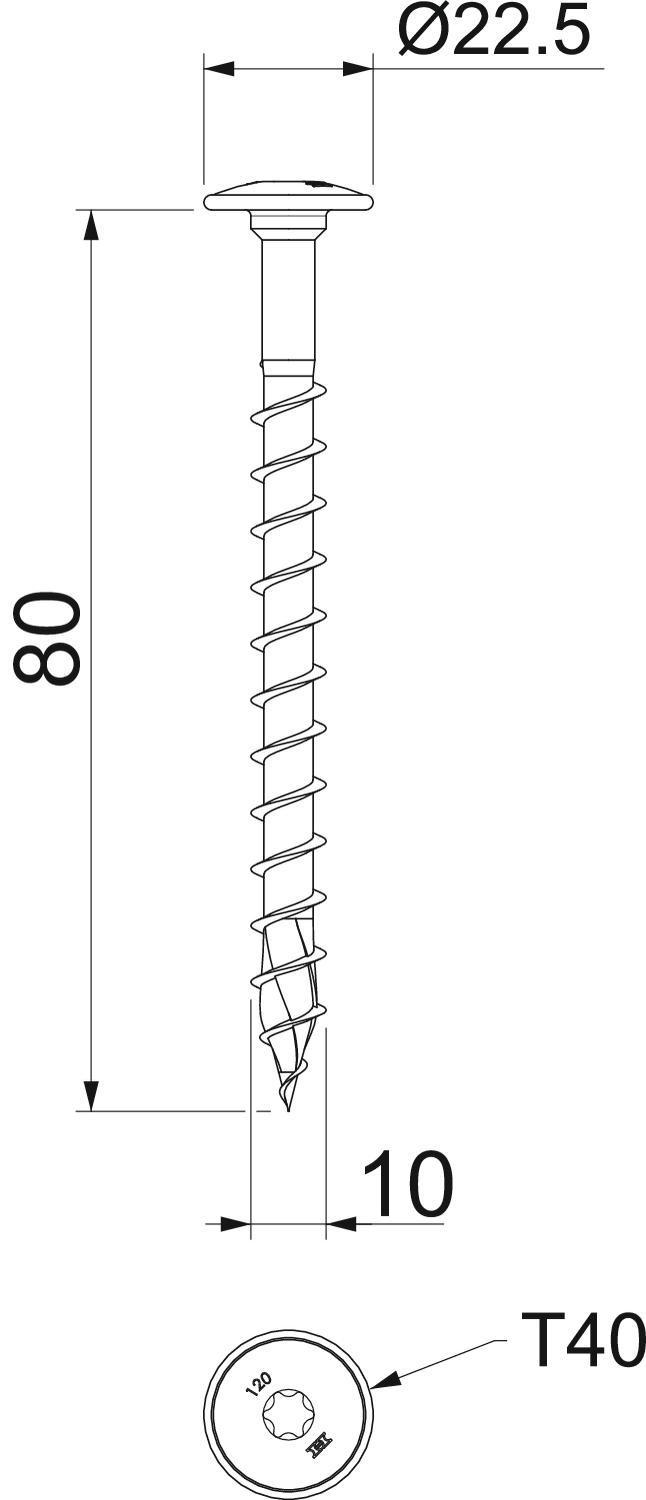

Dimenzija 10x80
Dolžina 80 mm
Dvotiren ne
Kaljeno da
Material Jeklo
Mera D 10 mm
Mera L 80 mm
Oblika glave Krožnikasta glava
Površina galvansko cinkano
Premer droga 7 mm
Premer glave 22,5 mm
Vijačni sistem Torx
Vsi tipi

Vsi tipi

Tip Dolžina Mera D Št. art. Količina Min. prodajna enota
HT 10x80 TD 80 mm 10 mm 3498140
50 Kos
HT 10x100 TD 100 mm 10 mm 3498142
50 Kos
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota

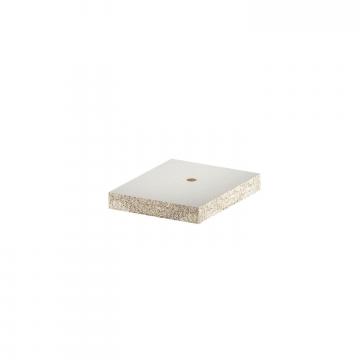

Fire protection plate, single perforated Fire protection plate, single perforated GLB-PG1 7205460
1 Kos

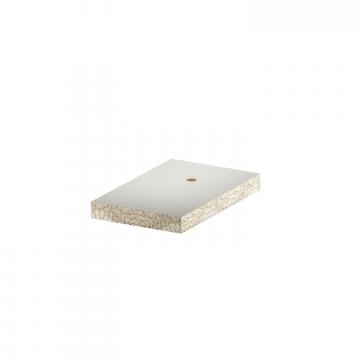

Fire protection plate, single perforated Fire protection plate, single perforated GLB-PG2 7205462
1 Kos

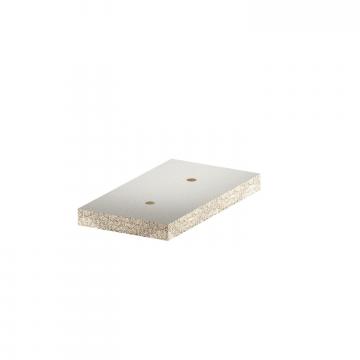

Fire protection plate, double perforated Fire protection plate, double perforated GLB-PG3 7205464
1 Kos
Prenosi

Prenesi

HT 10x80 TD / 3498140
Prenesi
