Flange head screw HT 6 60 | 6
morepic-1 morepic-2 video-1

Flange head screw HT 6

Št. art. 3498130 | EAN 4012196563920

6 mm
Opis izdelka
Opis izdelka

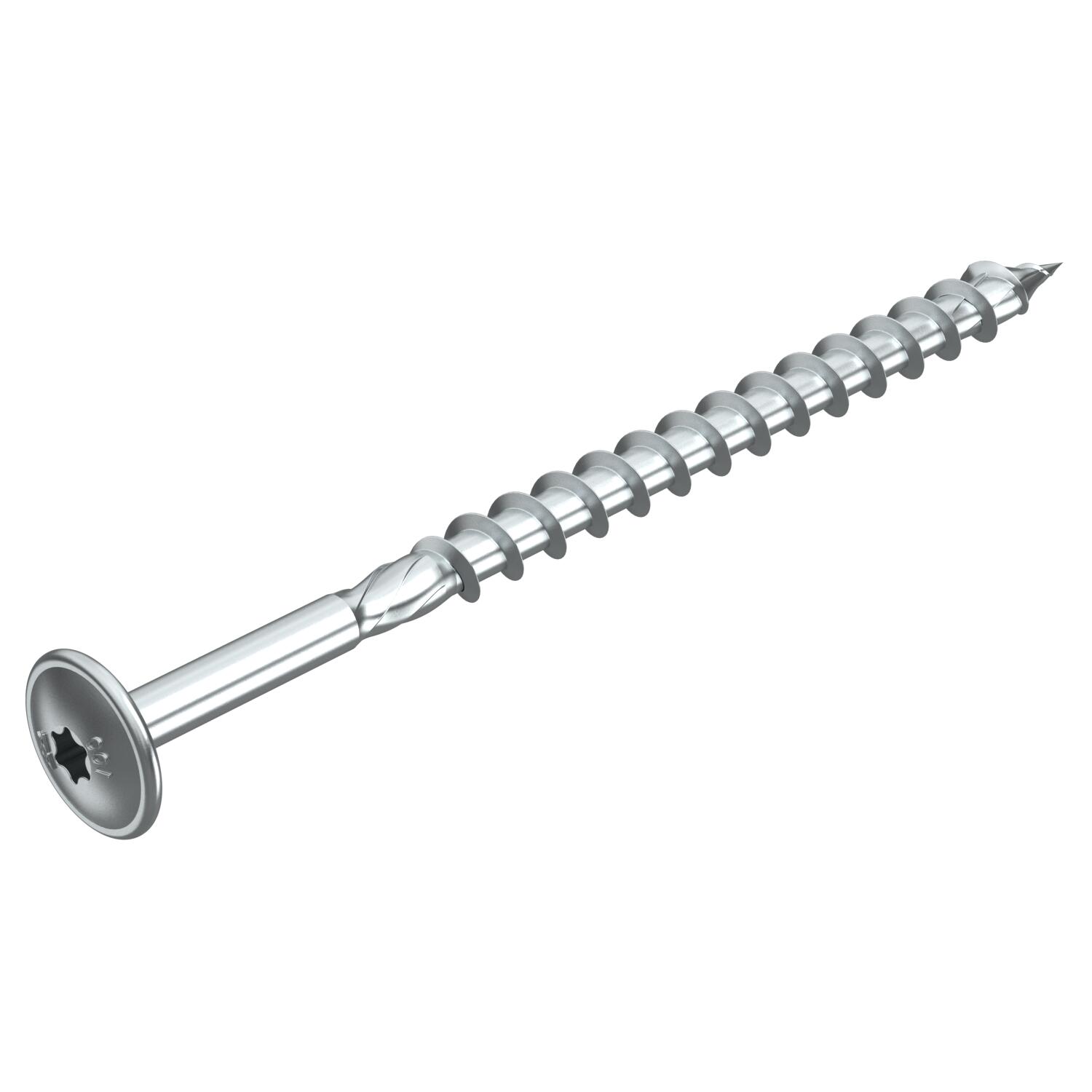

Self-tapping wood screw for fireproof fastening of cable systems for the maintenance of electrical function according to DIN 4102 Part 12 on supporting wooden structures. The flange head shape allows installation without an additional washer.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Tehnični podatki

Tehnični podatki

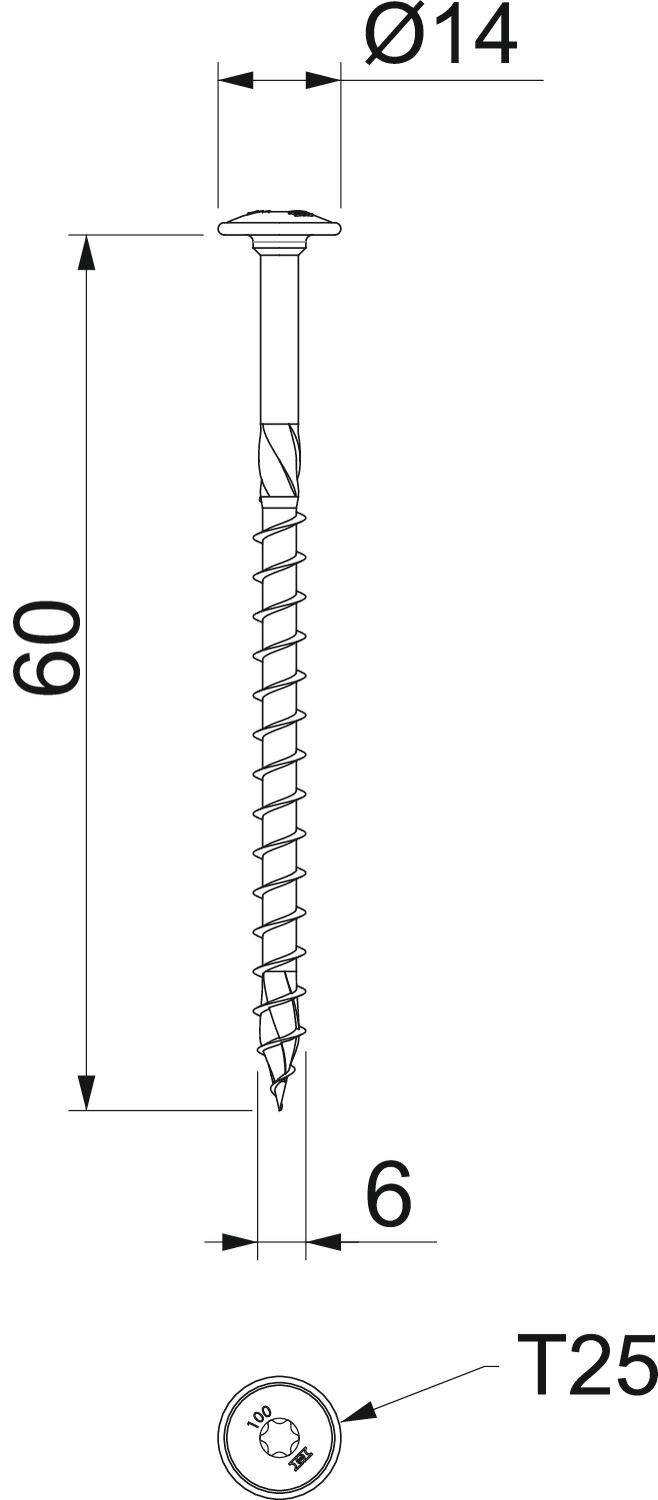

Dimenzija 6x60
Dolžina 60 mm
Dvotiren ne
Kaljeno da
Material Jeklo
Mera D 6 mm
Mera L 60 mm
Oblika glave Krožnikasta glava
Površina galvansko cinkano
Premer droga 4,5 mm
Premer glave 14 mm
Vijačni sistem Torx
Vsi tipi

Vsi tipi

Tip Dolžina Mera D Št. art. Količina Min. prodajna enota
HT 6x60 TD 60 mm 6 mm 3498130
200 Kos
HT 6x80 TD 80 mm 6 mm 3498132
100 Kos
HT 6x100 TD 100 mm 6 mm 3498134
100 Kos
