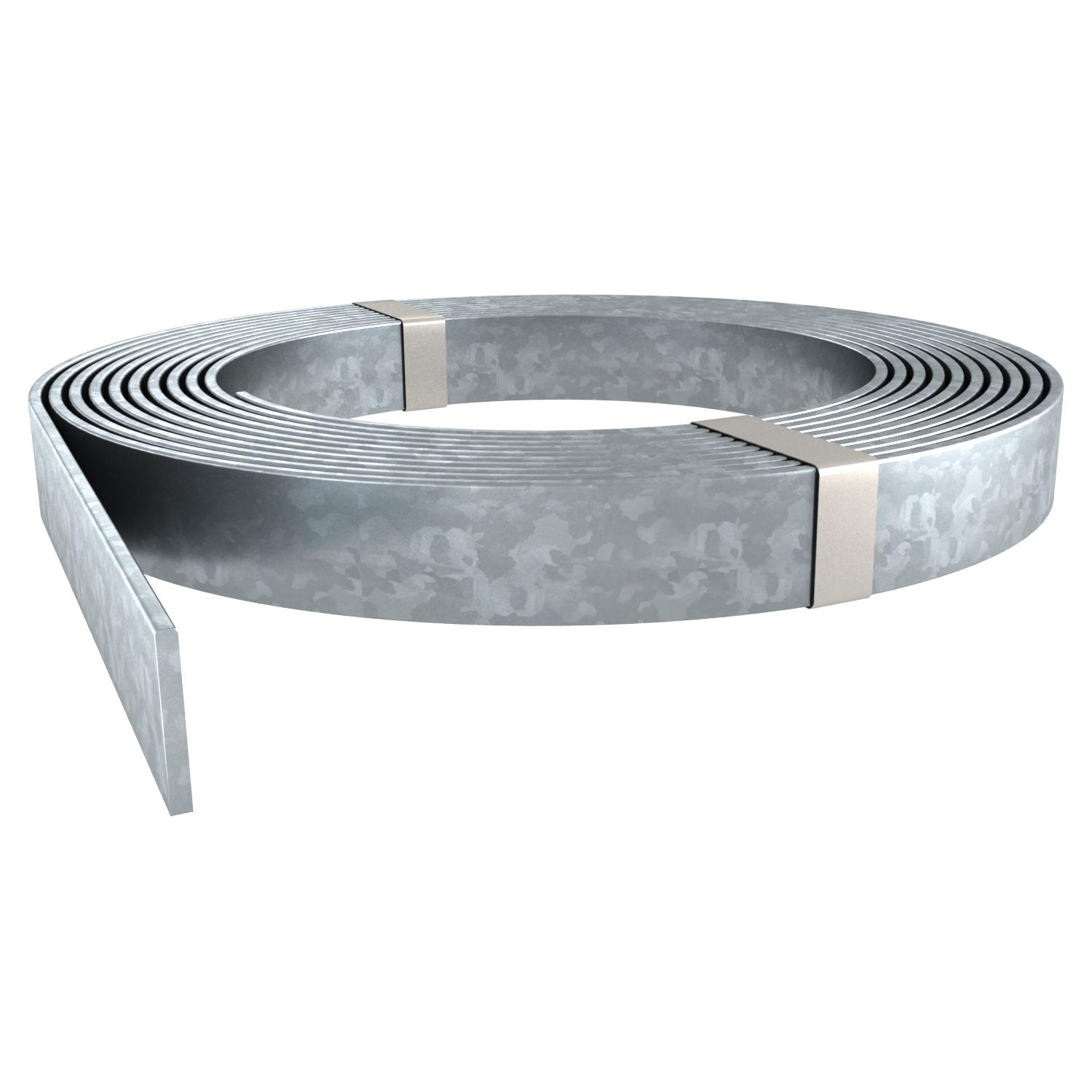

Galvanised steel flat conductor for earth 30 | 3,5

Galvanised steel flat conductor for earth

Št. art. 5019345 | EAN 4012195680475

Št. art. / Tip

Širina

Višina

Opis izdelka

Opis izdelka

• možnost uporabe kot odvod in ozemljitveni kabel po standardu DIN EN 62561-2 (VDE 0185-561-2)
• ustreza zahtevam standarda VDE 0185-305 (IEC 62305)
• cinkov nanos: ≥ 500 g/m² (povprečje pribl. 70 µm)
• za zaščito pred udarom strele, ozemljitvene sisteme in obročno izenačitev potenciala

Tehnični podatki

Tehnični podatki

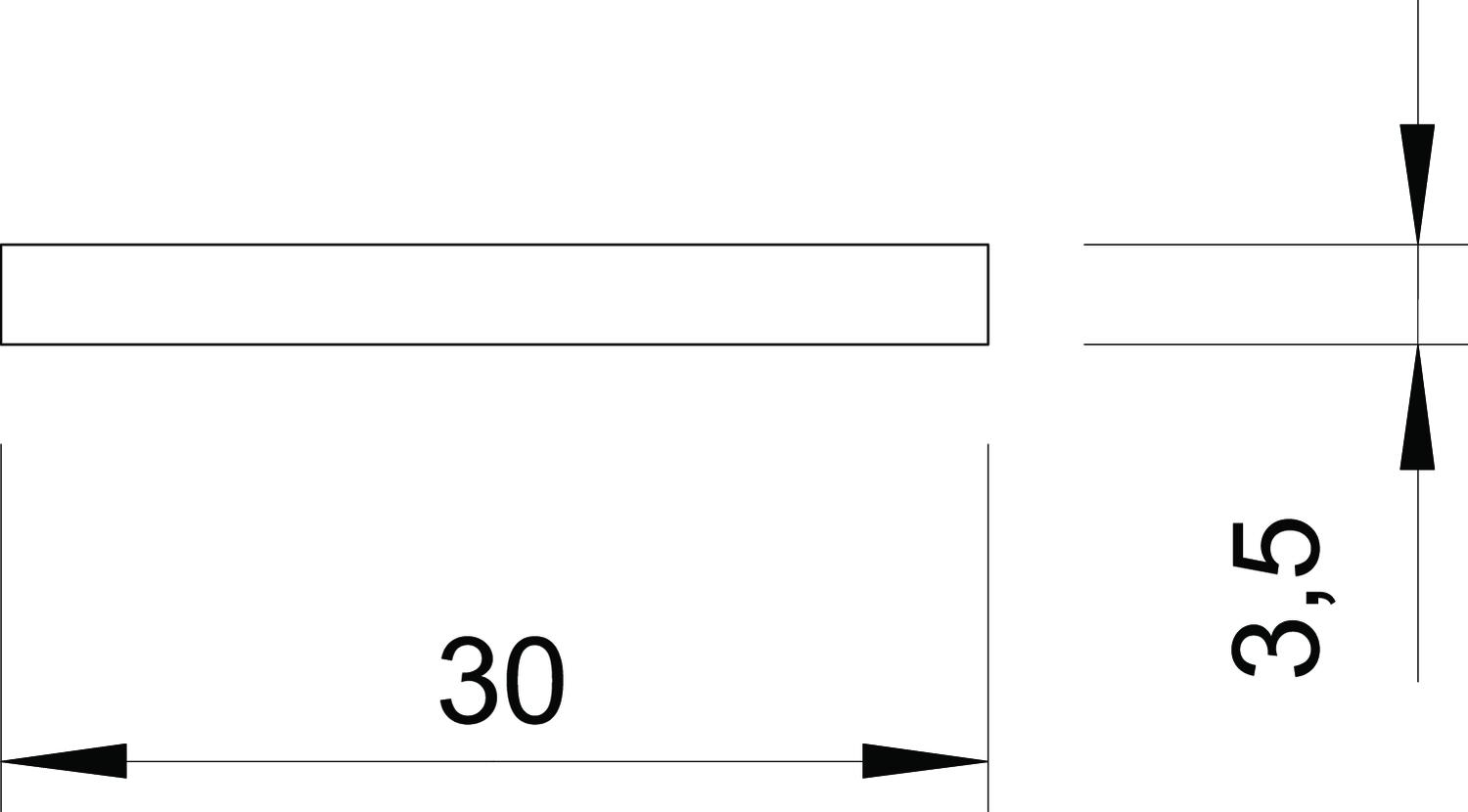

Dimenzija	30x3,5mm
Length tolerance ±	5 %
Material	Jeklo
Mera B	30 mm
Mera H	3,5 mm
Običajni obroč (pribl. kg)	25

Običajni obroč (pribl. m)	30
Površina	vroče pocinkano
Presek	105 mm²
Širina	30 mm
Višina	3,5 mm

Vsi tipi

Vsi tipi

Tip	Širina	Višina	Št. art.	Količina	Min. prodajna enota
5052 DIN 20X2.5	20 mm	2,5 mm	5019340	m	122 m
5052 DIN 25X3	25 mm	3 mm	5019342	m	84 m
5052 DIN 30X3.5	30 mm	3,5 mm	5019345	m	30 m
5052 DIN 30X3.5	30 mm	3,5 mm	5019347	m	60 m
5052 DIN 30X4	30 mm	4 mm	5019350	m	52 m
5052 DIN 40X4	40 mm	4 mm	5019355	m	40 m
5052 DIN 40X5	40 mm	5 mm	5019360	m	30 m

Pribor

Montažni pribor

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Cross-connector with intermediate plate for Rd 8−10 mm FT	252 8-10 FT	5312310	Kos	25 Kos
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT	252 8-10X16 FT	5312345	Kos	25 Kos
Cross-connector for round and flat conductors FT	252 8-10XFL30 FT	5312655	Kos	25 Kos

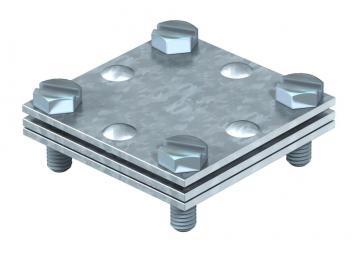

Cross-connector for flat conductor, with intermediate plate	255 30	5314518	Kos	20 Kos

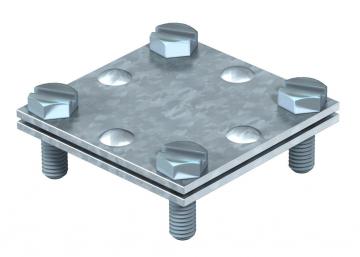

Cross-connector for flat conductor	255 A-FL30 FT	5314534	Kos	20 Kos

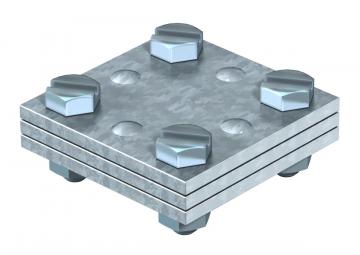

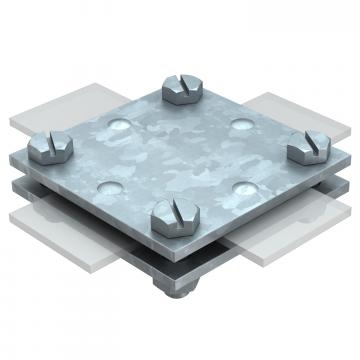

DIN cross-connector for flat conductor, with intermediate plate	256 DIN 30 FT	5314615	Kos	10 Kos
DIN cross-connector for flat conductor	256 A-DIN 30 FT	5314658	Kos	10 Kos

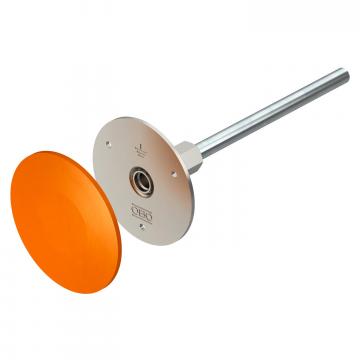

Fixed earthing terminal with axis and double thread FT	205 DG L180 FT	5420024	Kos	10 Kos

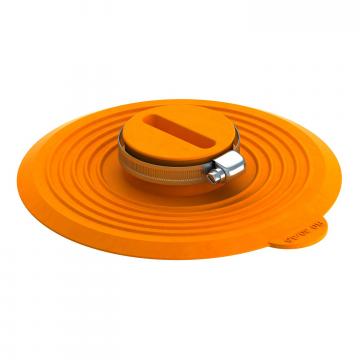

Sealing sleeve for flat conductors	DW FL30x3,5	2360043	Kos	1 Kos

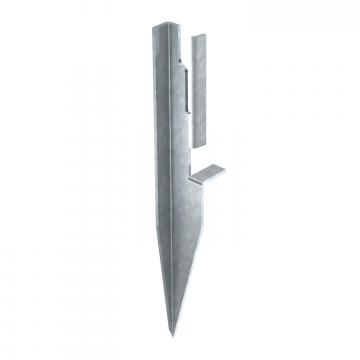

Spacer	1811	5014018	Kos	25 Kos

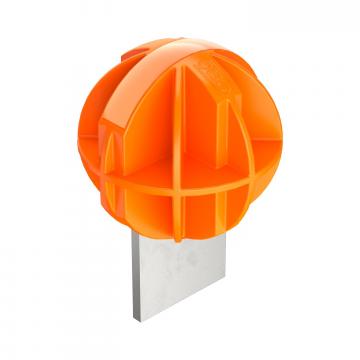

Protective cap for connection lugs, reflective	ProtectionBall	5018014	Kos	25 Kos
