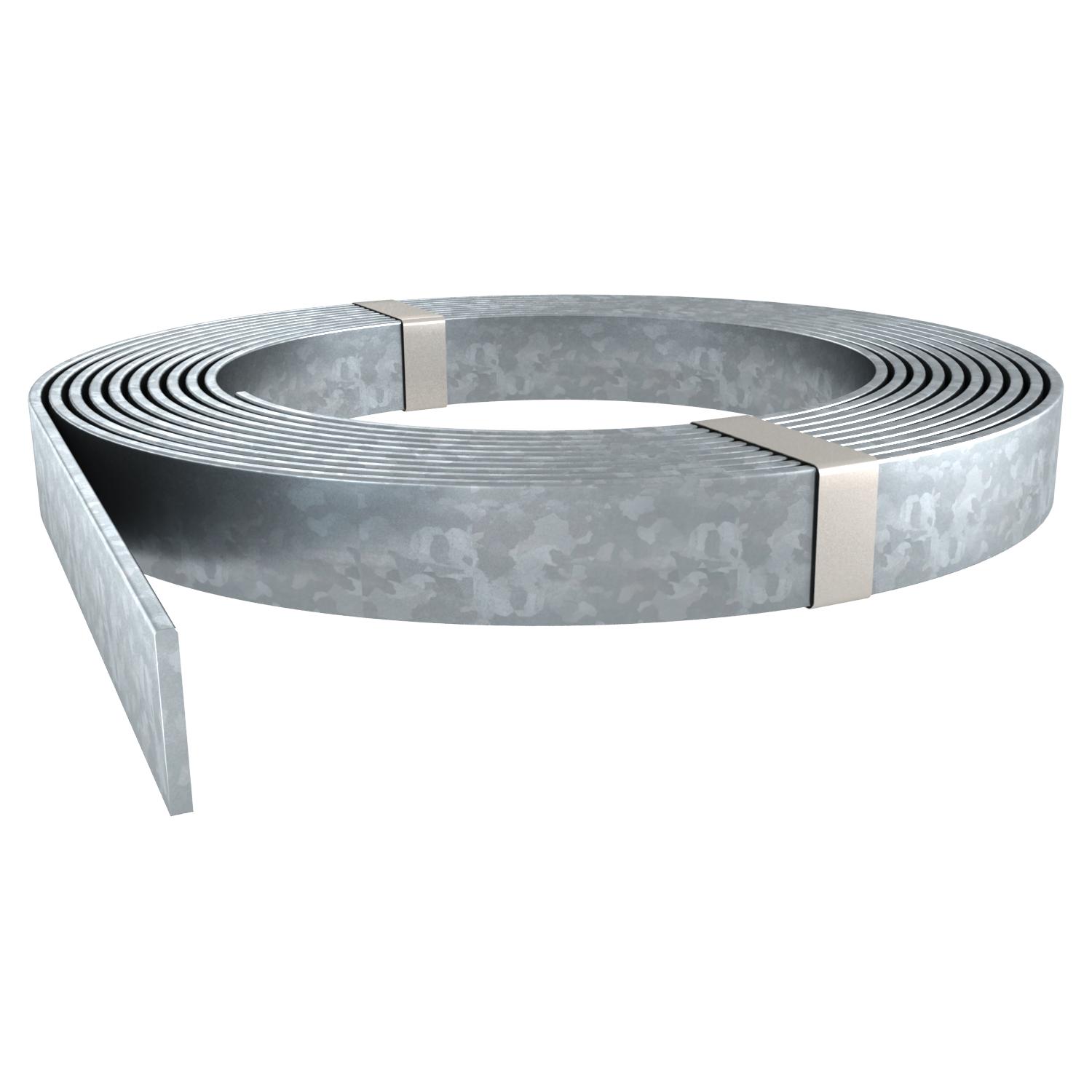

Galvanised steel flat conductor for earth

Št. art. 5019347 | EAN 4012195680482

Opis izdelka

Opis izdelka

• možnost uporabe kot odvod in ozemljitveni kabel po standardu DIN EN 62561-2 (VDE 0185-561-2)
• ustreza zahtevam standarda VDE 0185-305 (IEC 62305)
• cinkov nanos: ≥ 500 g/m² (povprečje pribl. 70 µm)
• za zaščito pred udarom strele, ozemljitvene sisteme in obročno izenačitev potenciala
  • Lightning current-tested
Tehnični podatki

Tehnični podatki

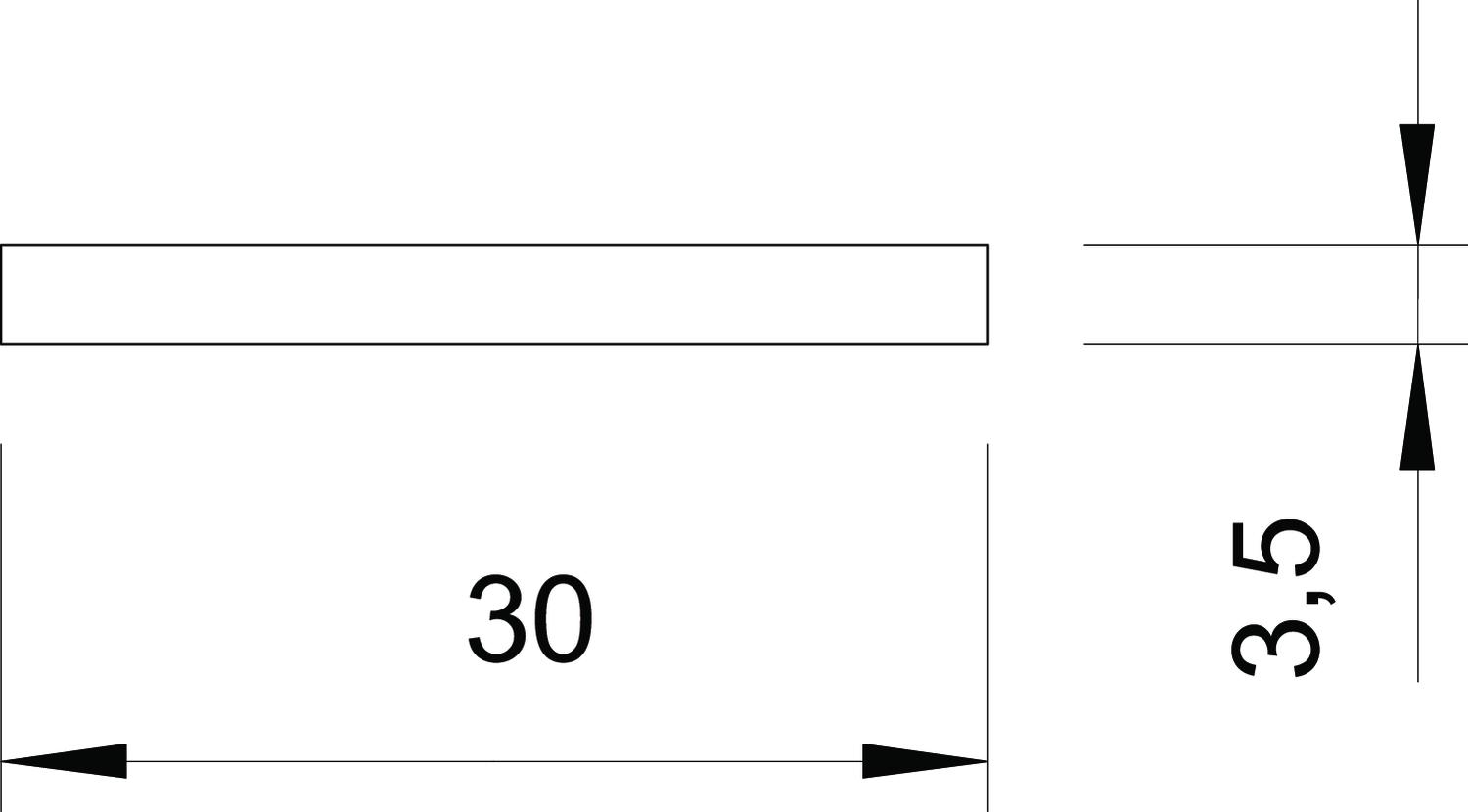

Dimenzija 30x3,5mm
Length tolerance ± 5 %
Material Jeklo
Mera B 30 mm
Mera H 3,5 mm
Običajni obroč (pribl. kg) 50
Običajni obroč (pribl. m) 60
Površina vroče pocinkano
Presek 105 mm²
Širina 30 mm
Višina 3,5 mm
Vsi tipi

Vsi tipi

Tip Širina Višina Št. art. Količina Min. prodajna enota
5052 DIN 20X2.5 20 mm 2,5 mm 5019340
122 m
5052 DIN 25X3 25 mm 3 mm 5019342
84 m
5052 DIN 30X3.5 30 mm 3,5 mm 5019345
30 m
5052 DIN 30X3.5 30 mm 3,5 mm 5019347
60 m
5052 DIN 30X4 30 mm 4 mm 5019350
52 m
5052 DIN 40X4 40 mm 4 mm 5019355
40 m
5052 DIN 40X5 40 mm 5 mm 5019360
30 m
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Cross-connector with intermediate plate for Rd 8−10 mm FT Cross-connector with intermediate plate for Rd 8−10 mm FT 252 8-10 FT 5312310
25 Kos
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT 252 8-10X16 FT 5312345
25 Kos
Cross-connector for round and flat conductors FT Cross-connector for round and flat conductors FT 252 8-10XFL30 FT 5312655
25 Kos
Cross-connector for flat conductor, with intermediate plate Cross-connector for flat conductor, with intermediate plate 255 30 5314518
20 Kos
Cross-connector for flat conductor Cross-connector for flat conductor 255 A-FL30 FT 5314534
20 Kos
DIN cross-connector for flat conductor, with intermediate plate DIN cross-connector for flat conductor, with intermediate plate 256 DIN 30 FT 5314615
10 Kos
DIN cross-connector for flat conductor DIN cross-connector for flat conductor 256 A-DIN 30 FT 5314658
10 Kos
Fixed earthing terminal with axis and double thread FT Fixed earthing terminal with axis and double thread FT 205 DG L180 FT 5420024
10 Kos
Sealing sleeve for flat conductors Sealing sleeve for flat conductors DW FL30x3,5 2360043
1 Kos
Spacer Spacer 1811 5014018
25 Kos
Protective cap for connection lugs, reflective Protective cap for connection lugs, reflective ProtectionBall 5018014
25 Kos
