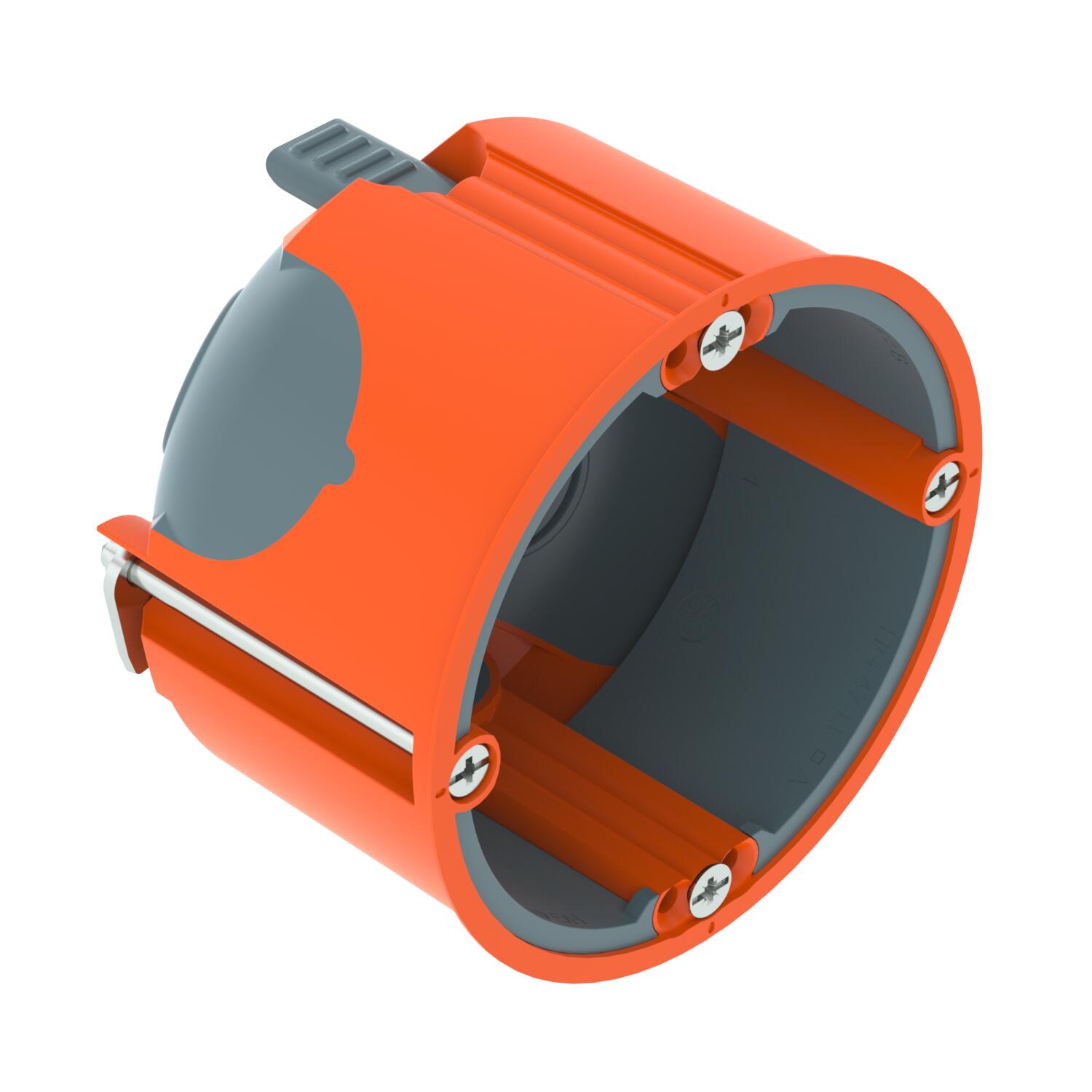

HG 47-LF fire protection cavity wall socket, air-tight

Št. art. 7204320 | EAN 4012197384500

Opis izdelka

Opis izdelka

Fire protection cavity wall socket to close off electrical installation openings in fire-resistant walls.

• Device socket, flat

• 2 x 3 screw domes

• Air-tight connection with other device sockets via connection nozzle, type ZH 11-V

• Max. 4 entries approved for cables with diameter ≤ 11 mm

• 2 M20/M25 entries (cable diameter ≤ 14 mm)

Delivery accessories: 5 x connection nozzles, type ZH 11-V

EI120/EI90 fire resistance (fire-resistant)

Approved in all installation zones according to DIN 18015-3, DIN 18040-2, DIN EN 17210.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Tehnični podatki

Tehnični podatki

Barva oranžna/siva

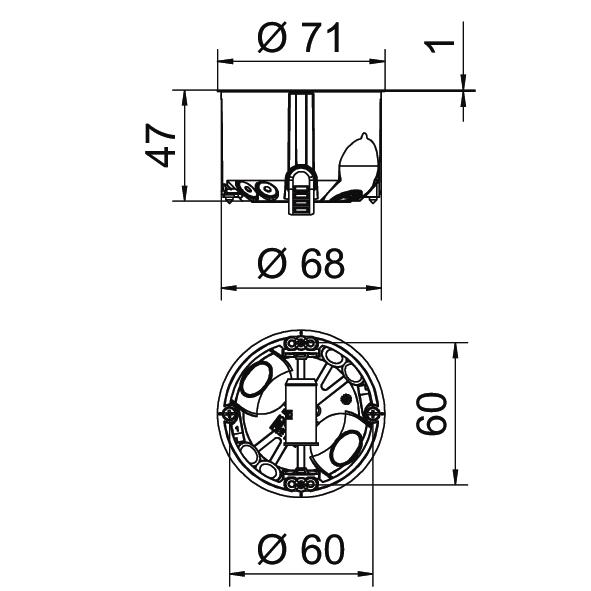

Dimenzija Ø68mm, H47mm
Material Polipropilen/termoplastični elastomer
Vsi tipi

Vsi tipi

Tip Višina Premer Premer odprtine za rezkanje Za premer cevi Število uvodnic Št. art. Količina Min. prodajna enota
HG 47-LF 7204320
10 Kos
