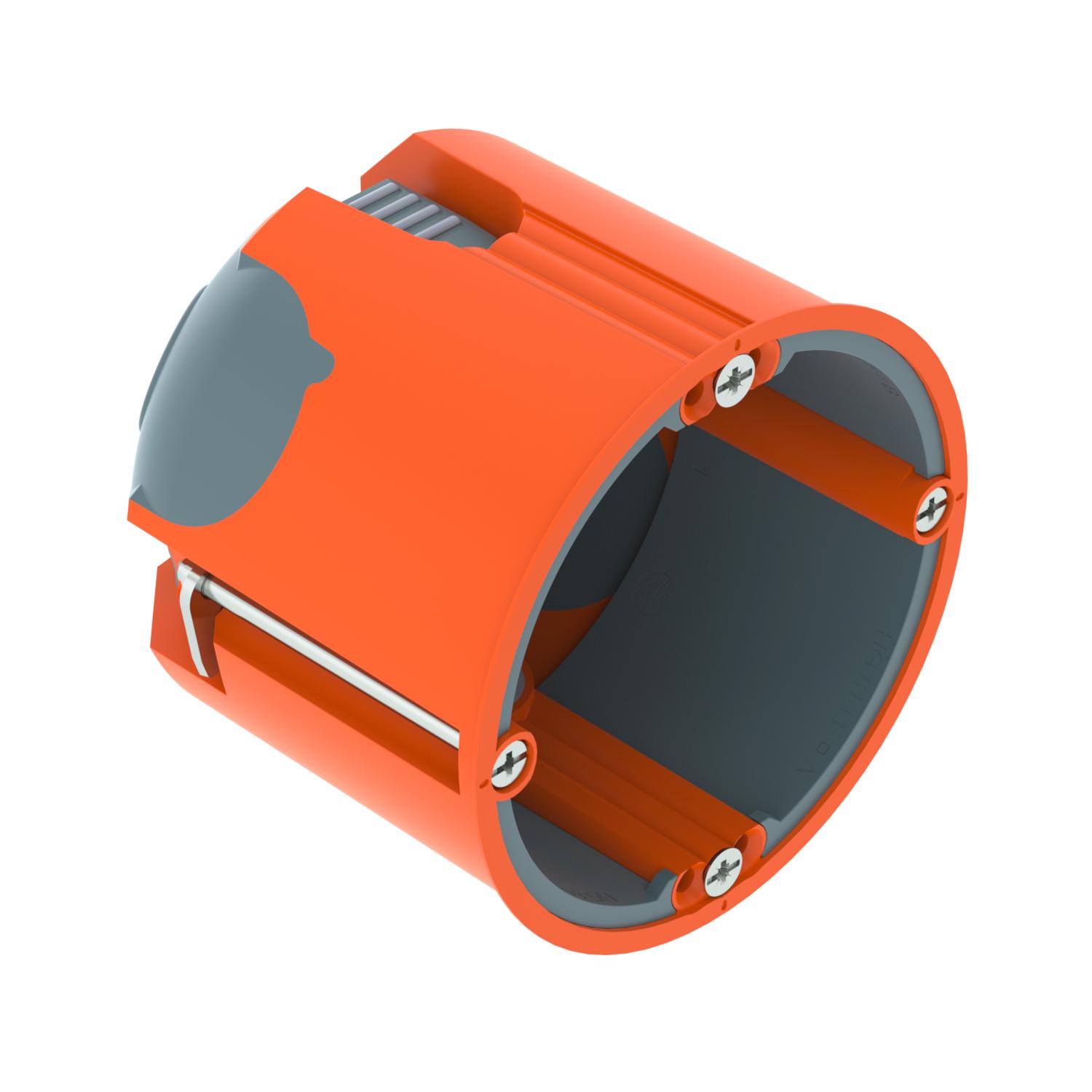

HG 61-LF fire protection cavity wall socket, air-tight

Št. art. 7204324 | EAN 4012197384548

Opis izdelka

Opis izdelka

Fire protection cavity wall socket to close off electrical installation openings in fire-resistant walls.

• Device and connection socket, deep
• 2 x 3 screw domes
• Air-tight connection with other device sockets via connection nozzle, type ZH 11-V
• Max. 8 entries approved for cables with diameter ≤ 11 mm
• 2 M20/M25 entries (cable diameter ≤ 14 mm)
Delivery accessories: 5 x connection nozzles, type ZH 11-V
EI120/EI90 fire resistance (fire-resistant)
Approved in all installation zones according to DIN 18015-3, DIN 18040-2, DIN EN 17210
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Tehnični podatki

Tehnični podatki

Barva oranžna/siva

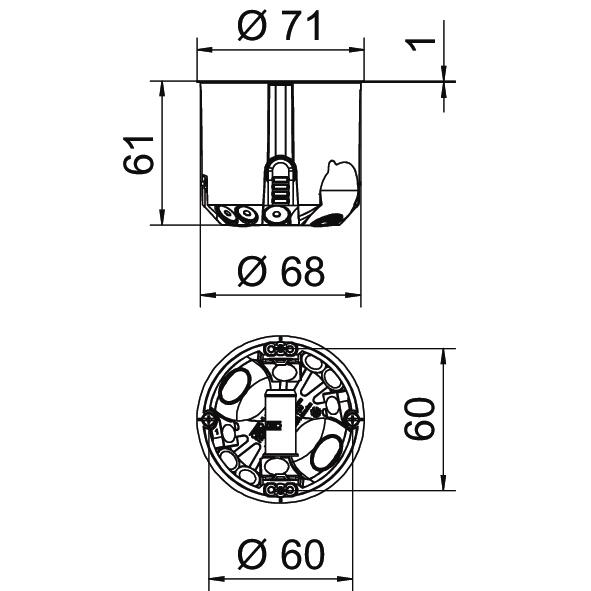

Dimenzija Ø68mm, H61mm
Material Polipropilen/termoplastični elastomer
Vsi tipi

Vsi tipi

Tip Višina Premer Premer odprtine za rezkanje Za premer cevi Število uvodnic Št. art. Količina Min. prodajna enota
HG 61-LF 7204324
10 Kos
Prenosi

Prenesi

Prenesi

Za ta proizvod informativna besedila niso na voljo
