Hollow core anchor Easy
Št. art. 3498770 | EAN 4012196412075
- Opis izdelka
-

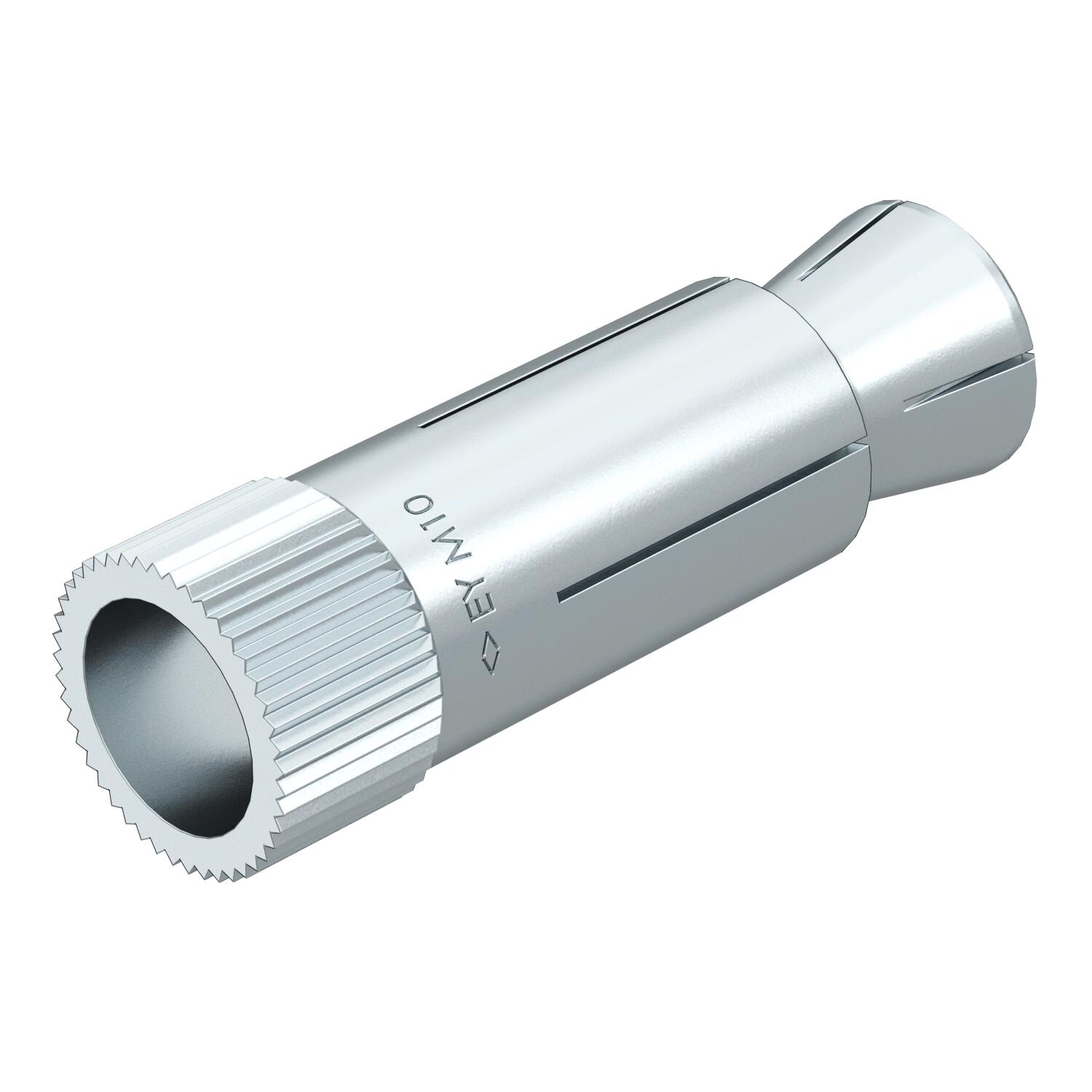

Opis izdelkaHollow core anchor "Easy" for mounting in prestressed hollow concrete slabs. When the screw or the nut is tightened, the cone is released from the anchor sleeve and pulled into it. This makes the anchor expand in the hollow space, thereby creating form lock. The hollow core anchor can also be used when the expansion area is not located in the cavity.
The fastening of the component can be done with standard screws and threaded rods.
- Tehnični podatki
-
Tehnični podatki
Barva cink Dimenzija M8 Dolžina 44 mm Globina izvrtine 55 mm Material Jeklo Mera L 44 mm Metrični navoj 8 Min. premer izvrtine 12 mm Navoj M8 Površina galvansko cinkano Z navojem da Z vijaki ne - Vsi tipi
- Prenosi
-
Podatkovni list Easy M8 / 3498770 , 0.20MB , pdfKatalog Kabeltragsysteme , 45.23MB , pdfNavodila za montažo General information on the mounting , 2.61MB , pdfNavodila za montažo Navodila za montažo sidra za votli strop Easy , 0.98MB , pdf
