Instalacijski steber, tip ISSRHSM45 675 | globoko črna; RAL 9005

Instalacijski steber, tip ISSRHSM45

Št. art. 6290054 | EAN 4012197441685

Št. art. / Tip

Dolžina	675 mm

Barva

Opis izdelka

Opis izdelka

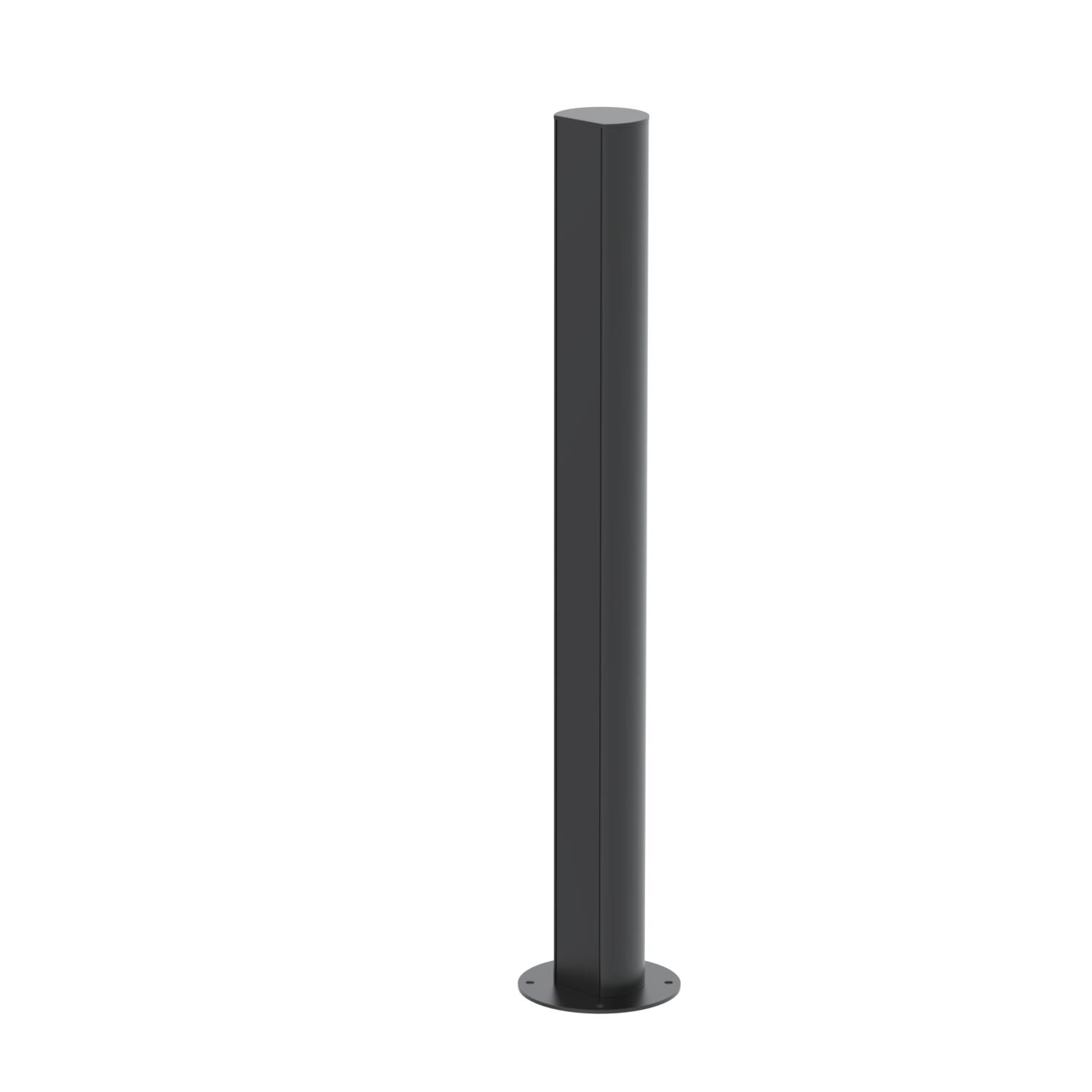

ISS aluminium service pole with a 45 mm system opening.
Set consisting of:
1-compartment pole with stand
Total length: 675 mm
1 cover, aluminium
Length: 675 mm
The design of the ISS service pole is based on an extremely slim and round aluminium profile that to the front side shows a smooth cover of the Rapid 45 device installation series. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices. The installation compartment is theoretically sufficient for 14 Modul 45® devices. If Modul 45connect® is used or in the case of cabling requiring a lot of space, the number of the max. installable devices is reduced. There is the option of installing a partition, type 2371/40 (6023096).

Tehnični podatki

Tehnični podatki

Barva	globoko črna; RAL 9005
Brez halogenov	da

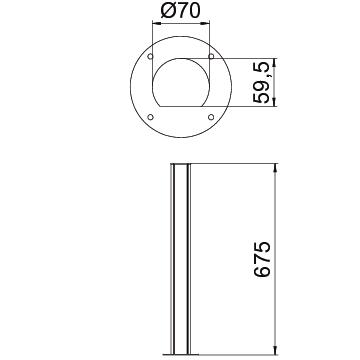

Dimenzija	675x70x60
Dolžina	675 mm
Izvedba	enostransko
Kabelski skoznjik	spodaj
Material	aluminij
Min. višina stebra	675 mm
Način pritrditve	Podstavek
Nastavljiv	ne
Neprekinjeni profil	da

Oblika stebra	okroglo
Površina	plastificirano
Širina	70 mm
Širina pokrova	45 mm
Spremenljiva lokacija	ne
Število potegov	1 St.
Število vstavljivih pokrovov	1
strop	ne
Talna montaža	da
Višina	59,5 mm
Vnaprej ožičeno	ne
