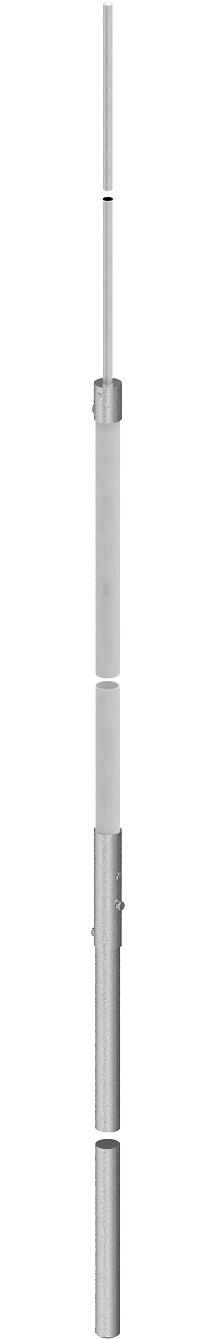

Insulated air-termination rod
Št. art. 5408942 | EAN 4012195670056
- Opis izdelka
-
Opis izdelka
• For isolated creation of air-termination systems
• Suitable for isFang air-termination rod stand, type isFang 3B-100/150
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• For installation on the building structure with isFang support
• Fastening of the OBO isCon® conductor possible using accessories
• Suitable for externally routed isCon® conductors
• Stainless steel standpipe (V2A)
• Centre section made of fibre-glass reinforced plastic (GRP)
• Aluminium air-termination tip
-
- Tehnični podatki
-
Tehnični podatki

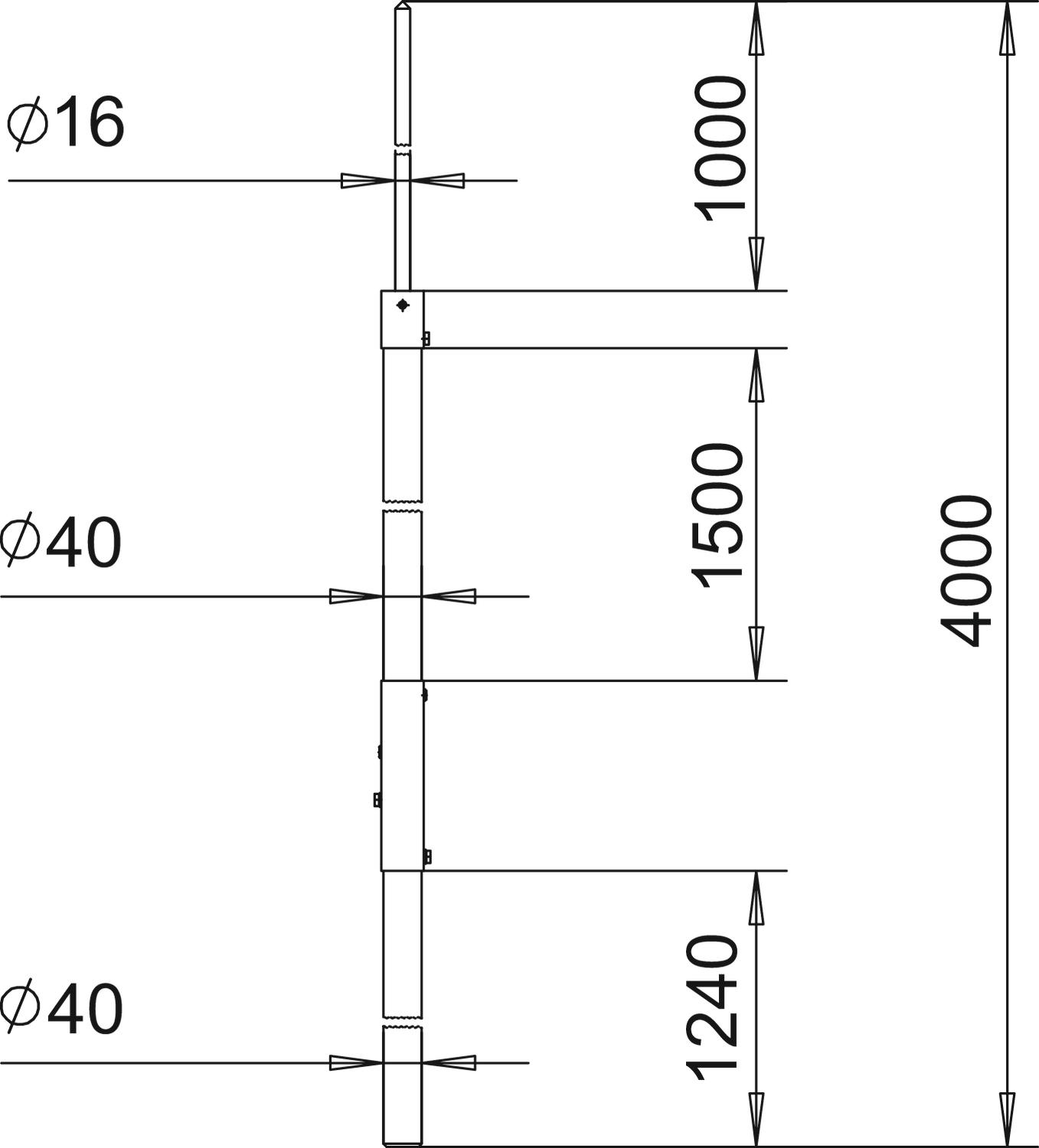

Barva svetlo siva Dimenzija 4000mm Dolžina 4000 mm Izvedba Lovilni drog Material S steklenimi vlakni ojačana umetna masa Mera A 1240 mm Mera B 1000 mm Mera D min. 40 mm Mera H 1500 mm Priključek Okrogli vodnik Proti visoki napetosti odporna, izolirana izvedba da - Vsi tipi
-
Sistemski dodatki
Proizvodi Tip Št. art. Količina Min. prodajna enota
Betonsko postolje za sustav FangFix 16 kg
F-FIX-S16 5403227 1 Kos
Base for FangFix system 16 kg for mounting the isFang tripod
F-FIX-B16 3B 5403238 10 Kos

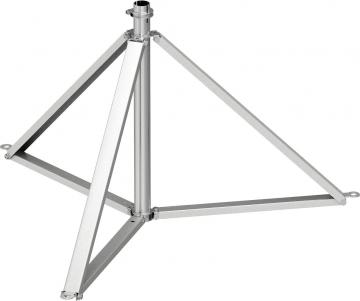

isFang tripod
isFang 3B-100 AL 5408966 1 Kos
isFang-3B threaded rod
isFang 3B-G2 5408972 3 Kos - Prenosi
-
Podatkovni list isFang 4000 / 5408942 , 0.15MB , pdfIzjava o skladnosti isFang 4000 / 5408942 , 0.03MB , pdf
