Insulated air-termination rod for inner-routed isCon® conductor

Št. art. 5408856 | EAN 4012196647859

Opis izdelka

Opis izdelka

• za polaganje odvodov OBO isCon® v cevi
• za montažo na gradbeno strukturo z nosilcem isFang
• primerno za vetrne obremenitve po evrokodi 1: DIN EN 1991-1-4
• preizkušeno po standardu VDE V 0185-561-8 (IEC TS 62561-8)

  • Lightning current-tested
Tehnični podatki

Tehnični podatki

Dimenzija 6000mm
Dolžina 6000 mm
Izvedba Lovilni drog
Material S steklenimi vlakni ojačana umetna masa

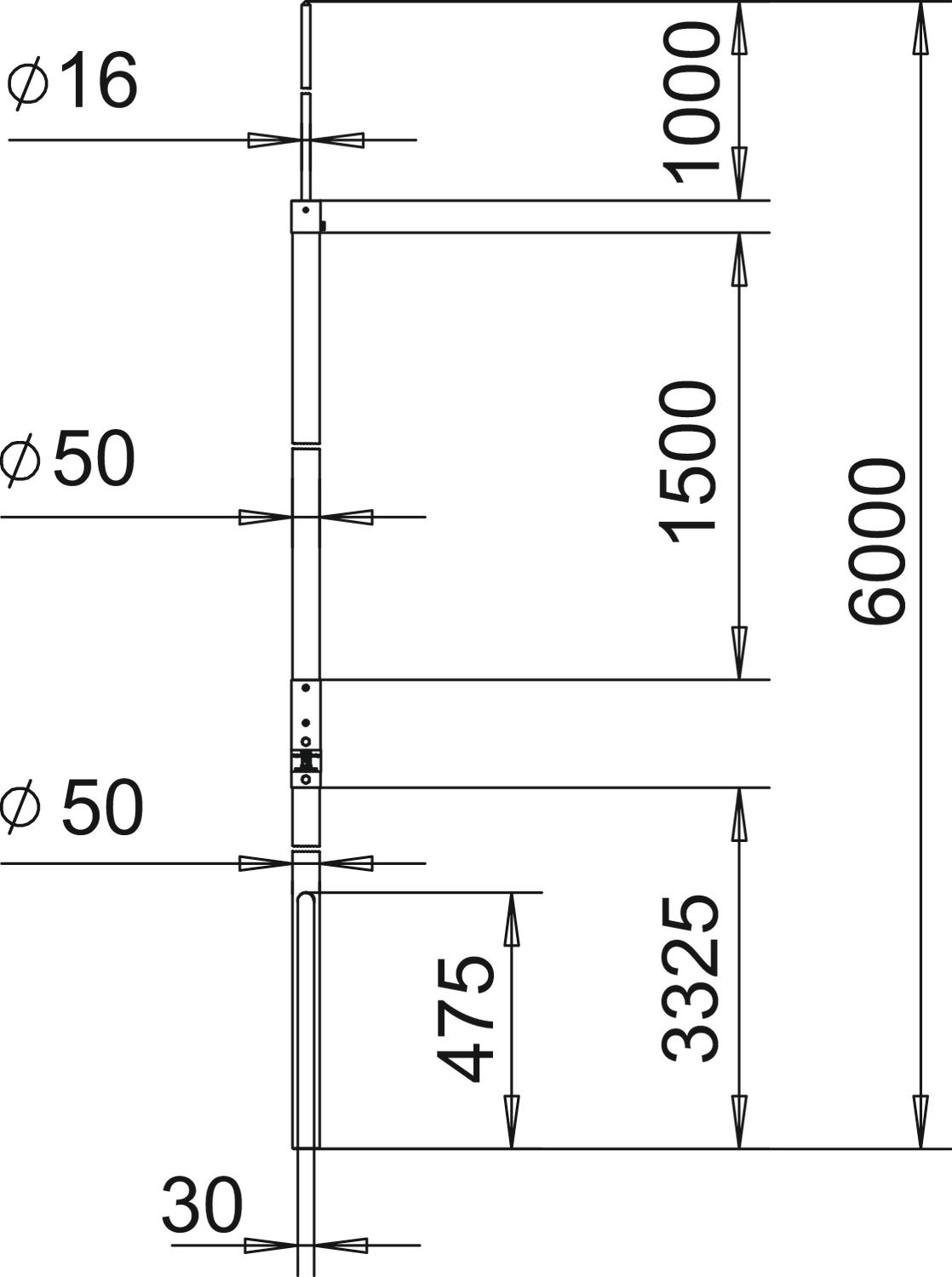

Mera A 3325 mm
Mera B 1000 mm
Mera D min. 50 mm
Mera H 1500 mm
Mera L 6000 mm
Priključek Okrogli vodnik
Proti visoki napetosti odporna, izolirana izvedba da
Vsi tipi

Vsi tipi

Tip Dolžina Št. art. Količina Min. prodajna enota
isFang IN L4 4000 mm 5408854
1 Kos
isFang IN L6 6000 mm 5408856
1 Kos
Pribor

Sistemski dodatki

Proizvodi Tip Št. art. Količina Min. prodajna enota
Betonsko postolje za sustav FangFix 16 kg Betonsko postolje za sustav FangFix 16 kg F-FIX-S16 5403227
1 Kos
Base for FangFix system 16 kg for mounting the isFang tripod Base for FangFix system 16 kg for mounting the isFang tripod F-FIX-B16 3B 5403238
10 Kos
isCon® conductor, Professional black isCon® conductor, Professional black isCon Pro 75 SW 5408008
100 m
isCon® connection element isCon® connection element isCon connect 5408022
2 Kos
Connection element for installation in the insulated interception rod isFang IN Connection element for installation in the insulated interception rod isFang IN isCon IN connect 5408024
1 Kos
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod isCon IN PAE 5408031
1 Kos
isFang tripod isFang tripod isFang 3B-100 5408968
1 Kos
