Insulated air-termination rod for inner-routed isCon® conductor with side exit 6000 |

Insulated air-termination rod for inner-routed isCon® conductor with side exit

Št. art. 5408876 | EAN 4012196647811

Št. art. / Tip

Dolžina

Opis izdelka

Opis izdelka

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)

Tehnični podatki

Tehnični podatki

Dimenzija	6000mm
Dolžina	6000 mm
Izvedba	Lovilni drog
Material	S steklenimi vlakni ojačana umetna masa

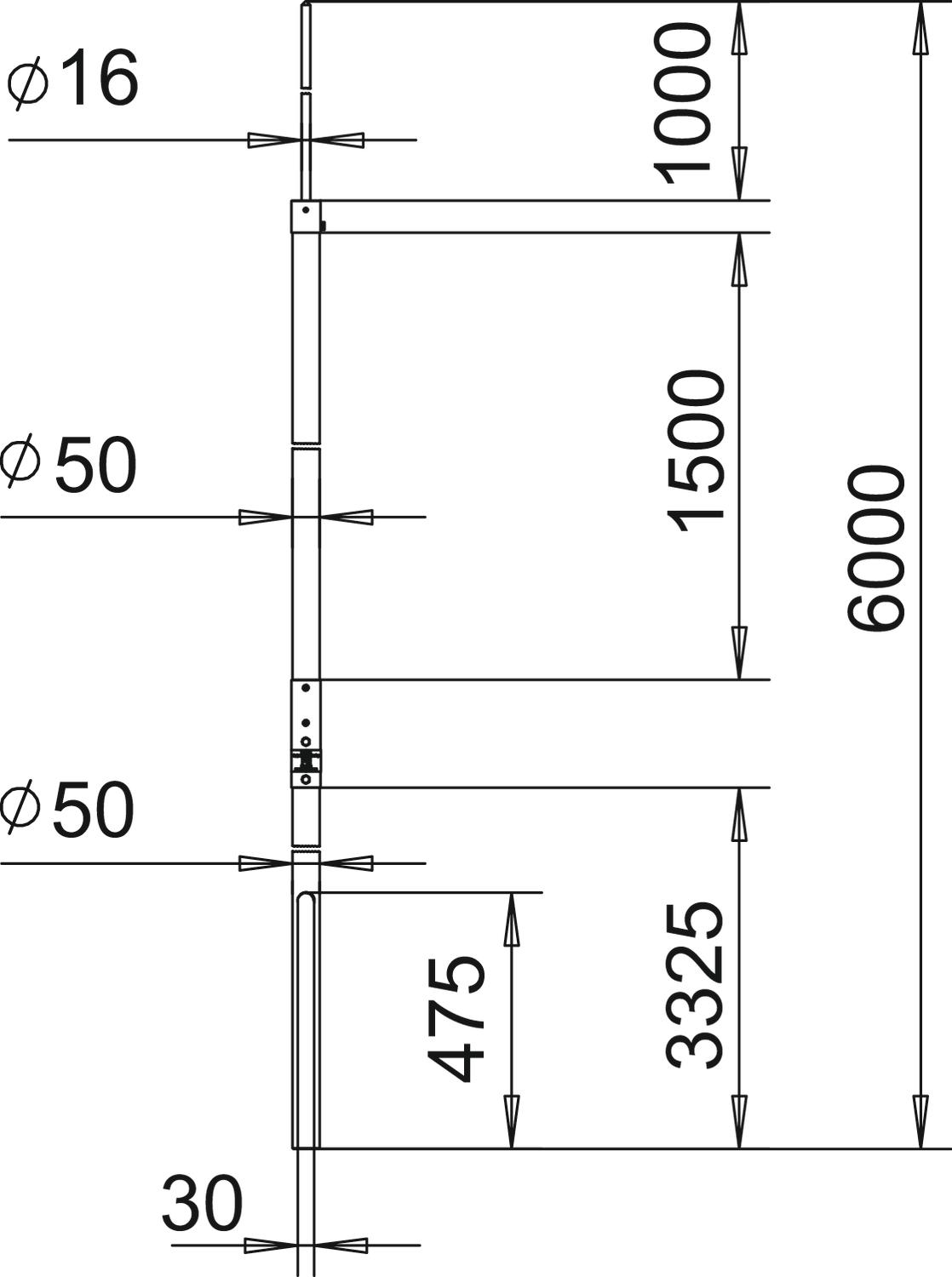

Mera A	3325 mm
Mera B	1000 mm

Mera D min.	50 mm
Mera H	1500 mm
Mera L	6000 mm
Priključek	Okrogli vodnik
Proti visoki napetosti odporna, izolirana izvedba	da

Vsi tipi

Vsi tipi

Tip	Dolžina	Št. art.	Količina	Min. prodajna enota
isFang IN-A L4	4000 mm	5408874	Kos	1 Kos
isFang IN-A L6	6000 mm	5408876	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Betonsko postolje za sustav FangFix 16 kg	F-FIX-S16	5403227	Kos	1 Kos
Base for FangFix system 16 kg for mounting the isFang tripod	F-FIX-B16 3B	5403238	Kos	10 Kos
isCon® conductor, Professional black	isCon Pro 75 SW	5408008	m	100 m
isCon® connection element	isCon connect	5408022	Kos	2 Kos
Connection element for installation in the insulated interception rod isFang IN	isCon IN connect	5408024	Kos	1 Kos
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod	isCon IN PAE	5408031	Kos	1 Kos
isFang tripod	isFang 3B-100	5408968	Kos	1 Kos
