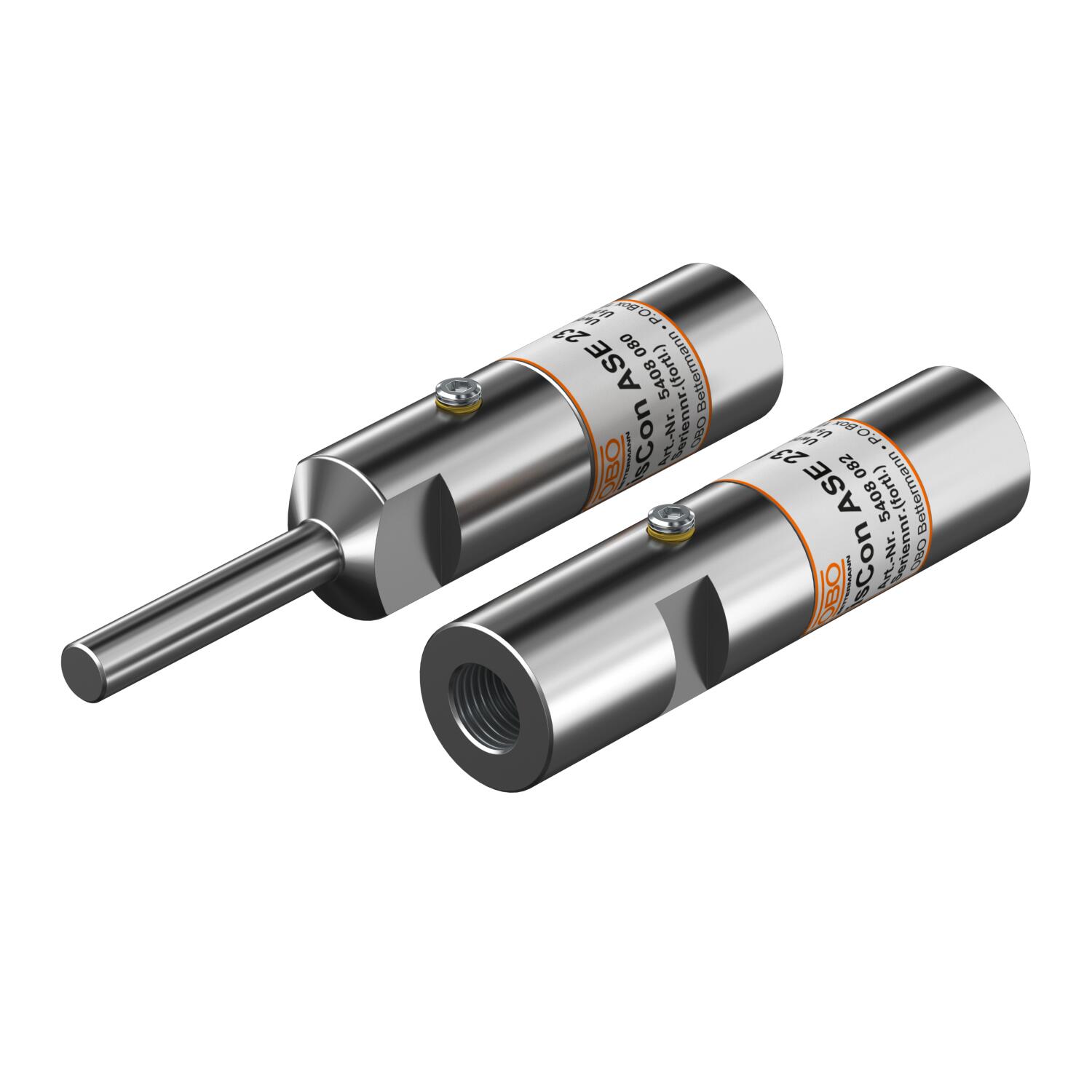

isCon® connection elements set ASE, testable for isFang IN
Št. art. 5408082 | EAN 4012196876600
- Opis izdelka
-
Opis izdelka• For the isCon® Pro+ and Premium conductor
• Set consisting of 2 testable connection elements
• Connection and routing of the cable in the insulated air-termination mast
• For function and state determination with integrated ASE technology (Adaptive Switching Element)
• For comprehensive repeat testing according to VDE 0185-305-3 (IEC/EN 62305-3)
• Screw-on termination
• Testable with the simplest insulation measuring devices (≥ 1 kV DC)
• Can be used in all lightning protection classes
• For highest system availability - no switch-off, dismantling or testing with
dangerous pulse voltages
• QR code to open the test report
• Incl. heat-shrinkable hose and Allen key
-
- Tehnični podatki
-
Tehnični podatki

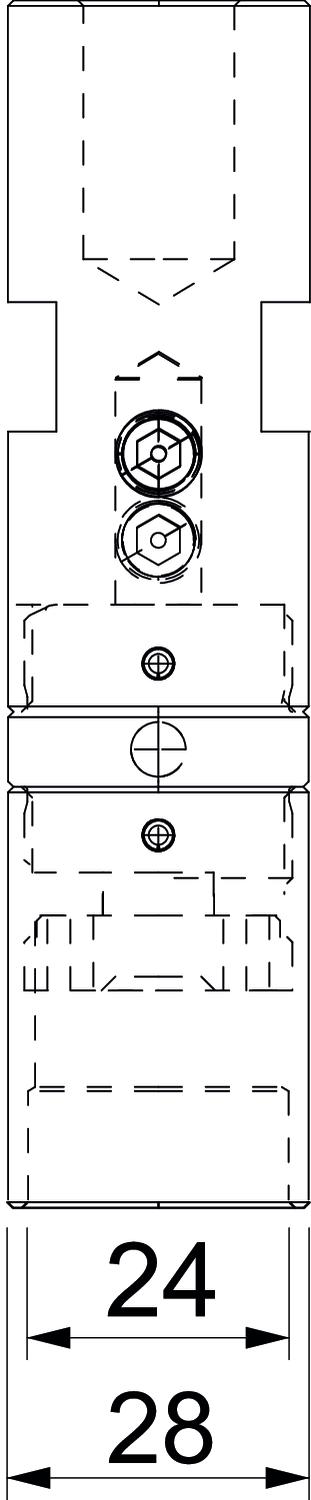

Dimenzija 23mm Maks. vpenjalno območje 23 mm Material Nerjaveče jeklo 1.4301 Mera D min. 28 mm Priključek Okrogli vodnik Prileg 23 mm Vrsta pritrdilnega vijaka drugo - Vsi tipi
-
Montažni pribor
Proizvodi Tip Št. art. Količina Min. prodajna enota
Stripping tool for isCon® conductor
isCon stripper 2 5408013 1 Kos - Prenosi
-
Podatkovni list isCon ASE 23 IN / 5408082 , 0.29MB , pdfPoročilo o pregledu Vzorčni obrazec zapisnika pregleda isCon , 0.82MB , pdfNavodila za montažo Navodila za montažo, dolga isCon® , 11.88MB , pdfNavodila za montažo Navodila za montažo priključnega elementa isCon ASE , 5.49MB , pdf
