MMS-plus F 7.5x80 countersunk head tie 7,5x80 | 80 | 6 | 15,5 | Torx
morepic-1 morepic-2

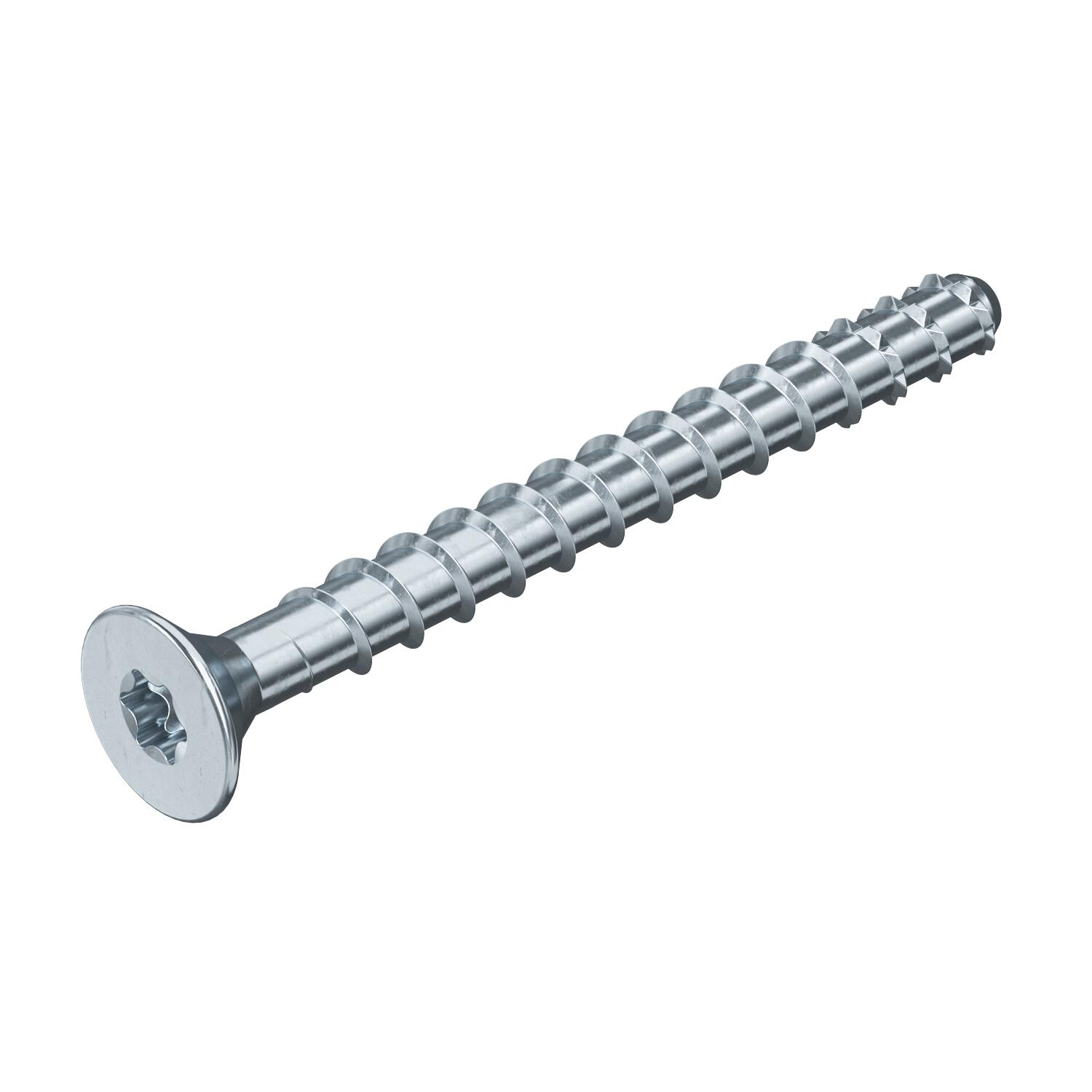

MMS-plus F 7.5x80 countersunk head tie

Št. art. 3498160 | EAN 4012196842681

3498160 / MMS+ F 7.5x80
7,5x80
80 mm
6 mm
15,5 mm
Torx
Opis izdelka
Opis izdelka
Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With countersunk head for universal fastenings. Torx drive T40.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Torx screw
  • Fire protection bolt tie
Tehnični podatki

Tehnični podatki

Dimenzija 7,5x80
Dimenzije 7,5x80
Dolžina 80 mm
Dolžina vložka 80 mm
Izvedba vložkov/žebljev/vijakov Spiralni vložek
Material Jeklo
Mera L 80 mm
Min. premer izvrtine 6 mm
Površina cinkano
Premer glave 15,5 mm
Vijačni sistem Torx
Vsi tipi

Vsi tipi

Tip Dimenzije Dolžina vložka Min. premer izvrtine Premer glave Vijačni sistem Št. art. Količina Min. prodajna enota
MMS+ F 7.5x80 7,5x80 80 mm 6 mm 15,5 mm Torx 3498160
50 Kos
