MMS-plus I 7.5x60 internal thread tie, with combination thread sleeve 7,5x60 | 53,5 | 6 | 13
morepic-1 morepic-2 video-1

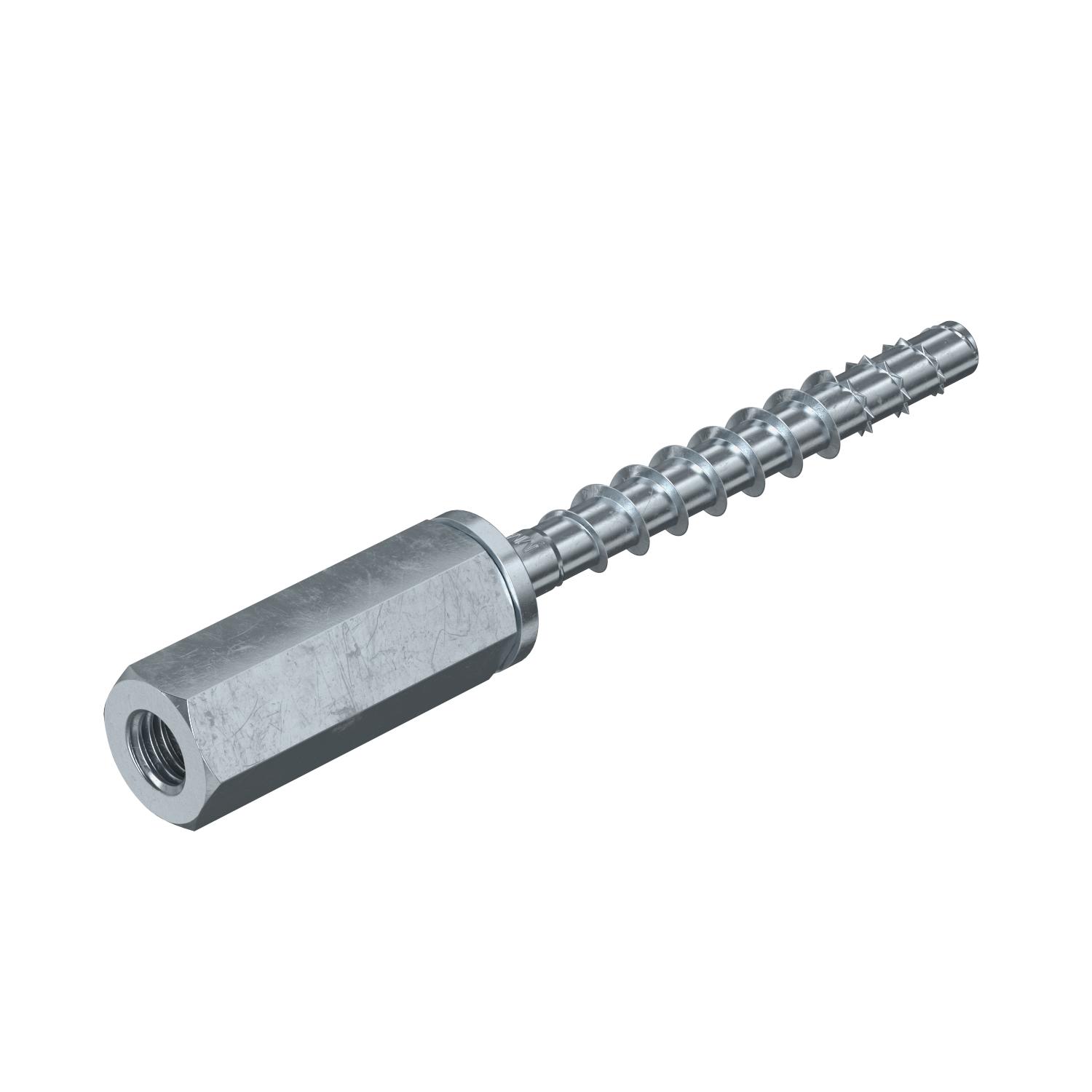

MMS-plus I 7.5x60 internal thread tie, with combination thread sleeve

Št. art. 3498268 | EAN 4012196710911

3498268 / MMS+ I 7.5x60
7,5x60
53,5 mm
6 mm
13
Opis izdelka
Opis izdelka
Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With M8/M10 combination thread sleeve for fastening threaded rods.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection bolt tie
Tehnični podatki

Tehnični podatki

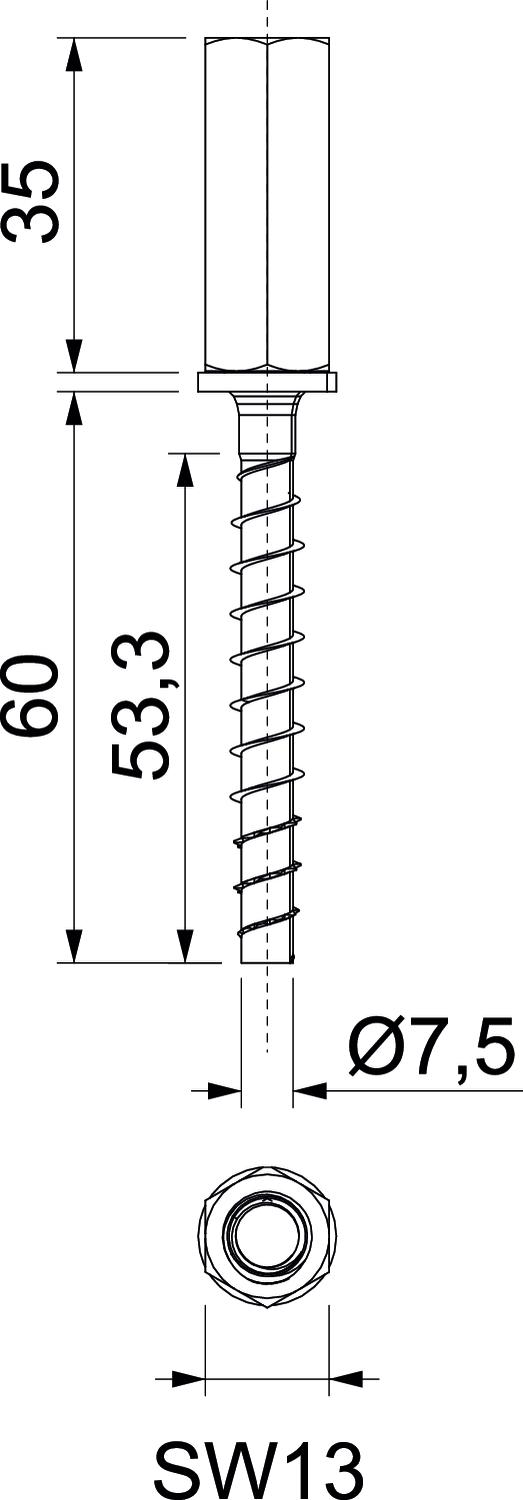

Dimenzija 7,5x60
Dimenzije 7,5x60
Dolžina 60 mm
Dolžina vložka 53,5 mm
Material Jeklo
Mera L 60 mm
Min. premer izvrtine 6 mm
Oblika glave Šestkotnik (heksagonalen)
Površina galvansko cinkano
Velikost ključa 13
Vijačni sistem Šestkotnik (heksagonalen)
Vsi tipi

Vsi tipi

Tip Dimenzije Dolžina vložka Min. premer izvrtine Velikost ključa Št. art. Količina Min. prodajna enota
MMS+ I 7.5x60 7,5x60 53,5 mm 6 mm 13 3498268
40 Kos
