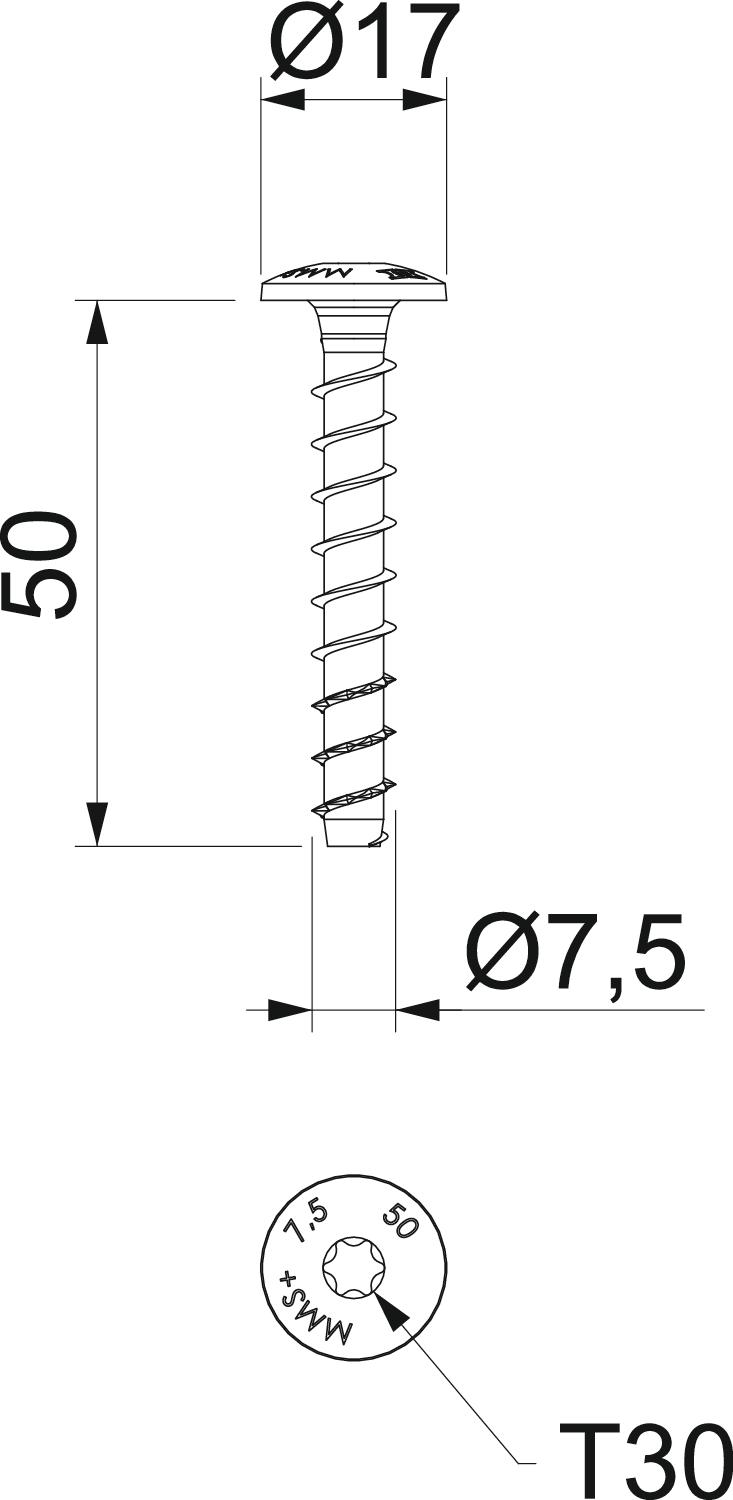

MMS-plus MS 7.5x50 mounting bolt tie, with flat pan head

Št. art. 3498261 | EAN 4012196559664

6 mm
17 mm
Torx
Opis izdelka

Opis izdelka

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With large round head to fasten mounting and profile rails. Torx drive T30.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Torx screw
  • Fire protection bolt tie
Tehnični podatki

Tehnični podatki

Dimenzija 7,5x50mm
Dimenzije 7,5 x 50
Dolžina 50 mm
Dolžina vložka 50 mm
Material Jeklo
Mera L 50 mm
Min. premer izvrtine 6 mm
Oblika glave drugo
Površina galvansko cinkano
Premer glave 17 mm
Vijačni sistem Torx
Vsi tipi

Vsi tipi

Tip Dimenzije Dolžina vložka Min. premer izvrtine Premer glave Vijačni sistem Št. art. Količina Min. prodajna enota
MMS+ MS 7.5x50 7,5 x 50 50 mm 6 mm 17 mm Torx 3498261
100 Kos
MMS+ MS 7.5x60 7,5 x 60 60 mm 6 mm 17 mm Torx 3498262
50 Kos
