Opomba: ta izdelek je ukinjen.

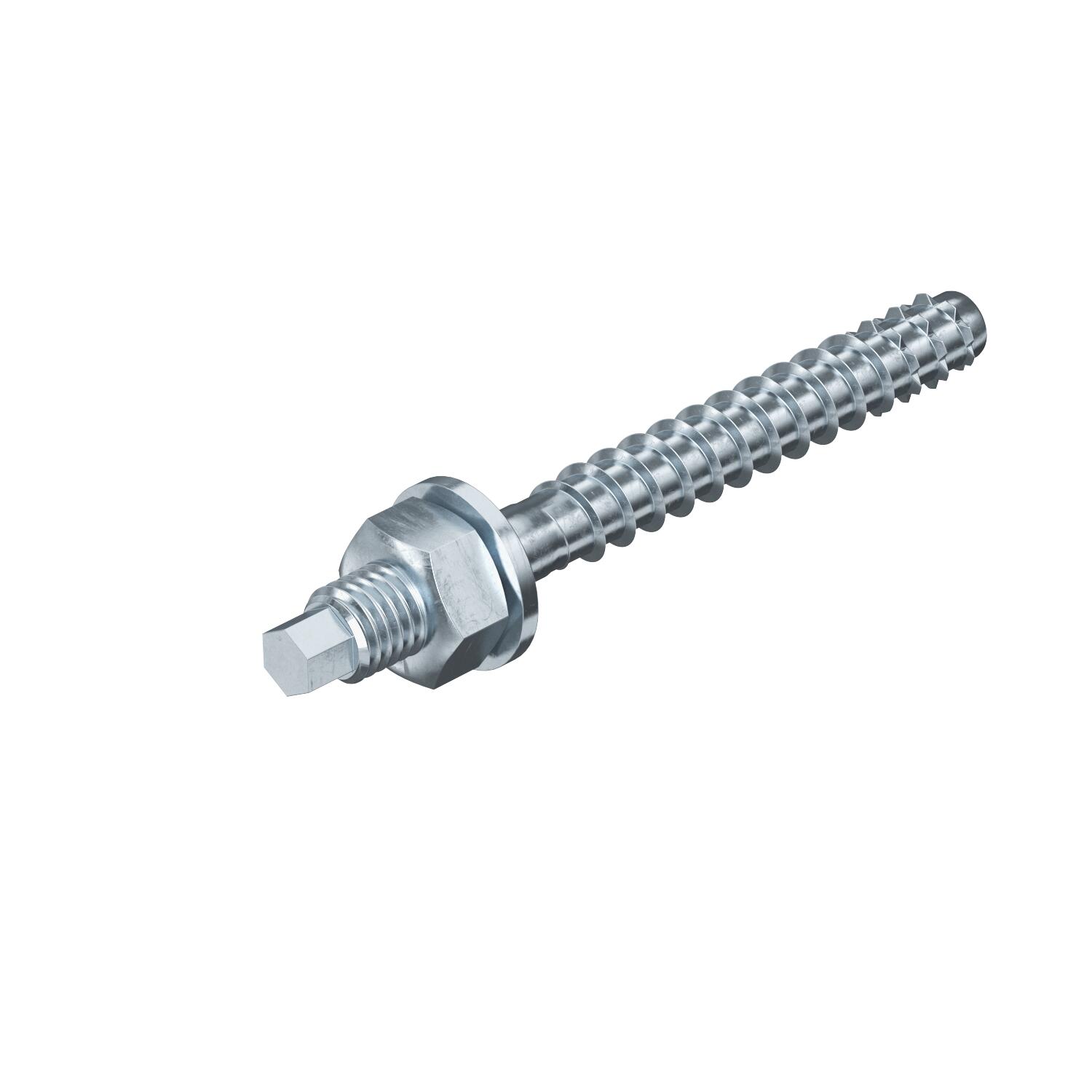

MMS-plus V 10x90 pre-push tie, with connection thread

Št. art. 3498190 | EAN 4012196842629

8 mm
7
Opis izdelka

Opis izdelka

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With connection thread and washer to accept large loads. Suitable for fastening suspended loads from suspended supports and wall brackets in push-through mounting.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Fire protection bolt tie
Tehnični podatki

Tehnični podatki

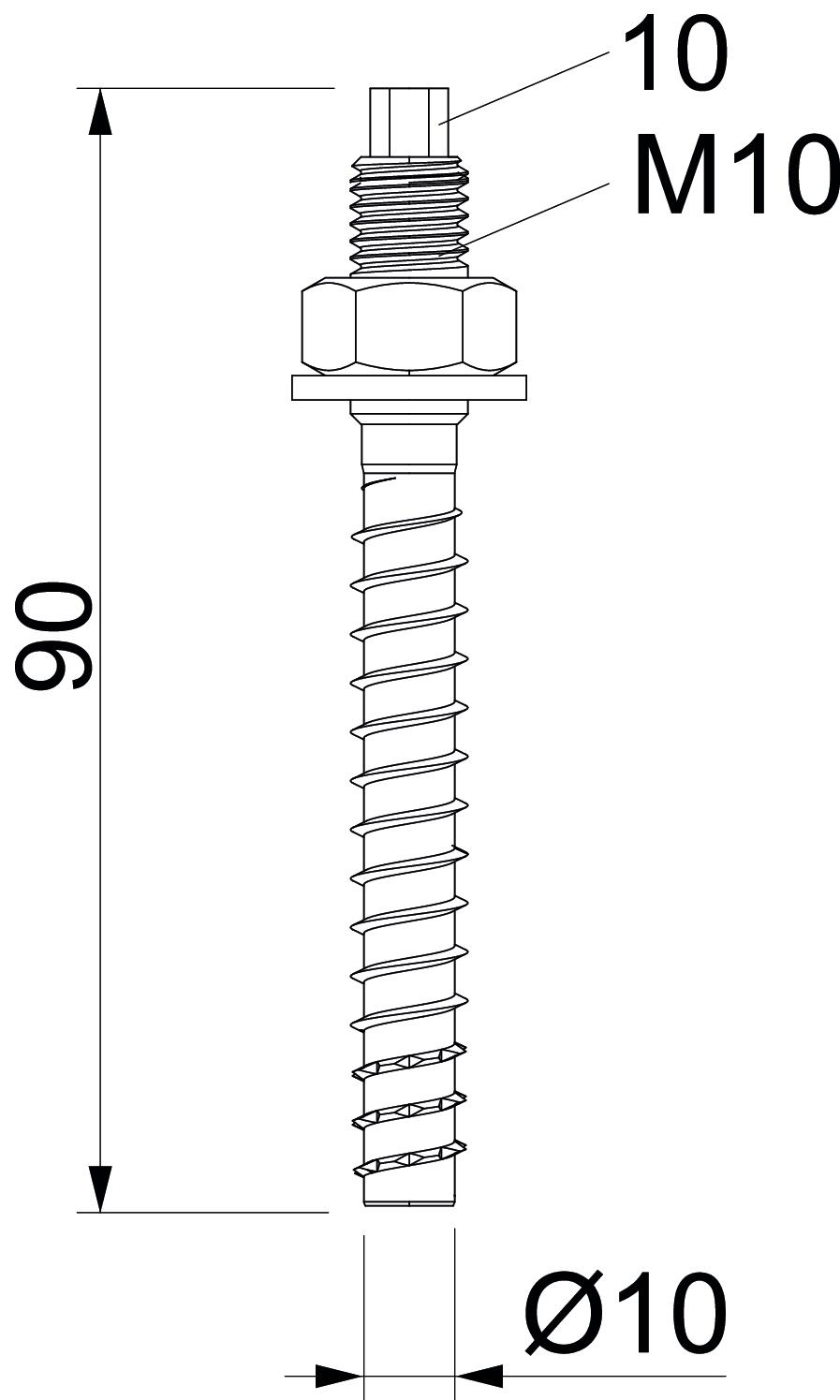

Dimenzija 10x90
Dimenzije 10x90
Dolžina 90 mm
Material Jeklo
Mera L 90 mm
Min. premer izvrtine 8 mm
Oblika glave drugo
Površina cinkano
Velikost ključa 7
Vijačni sistem Šestkotnik (heksagonalen)
Vsi tipi

Vsi tipi

Tip Dimenzije Min. premer izvrtine Velikost ključa Št. art. Količina Min. prodajna enota
MMS+ V 10x90 10x90 8 mm 7 3498190
25 Kos
MMS+ V 10x110 10x110 8 mm 7 3498192
25 Kos
Prenosi

Prenesi

Za ta proizvod informativna besedila niso na voljo
