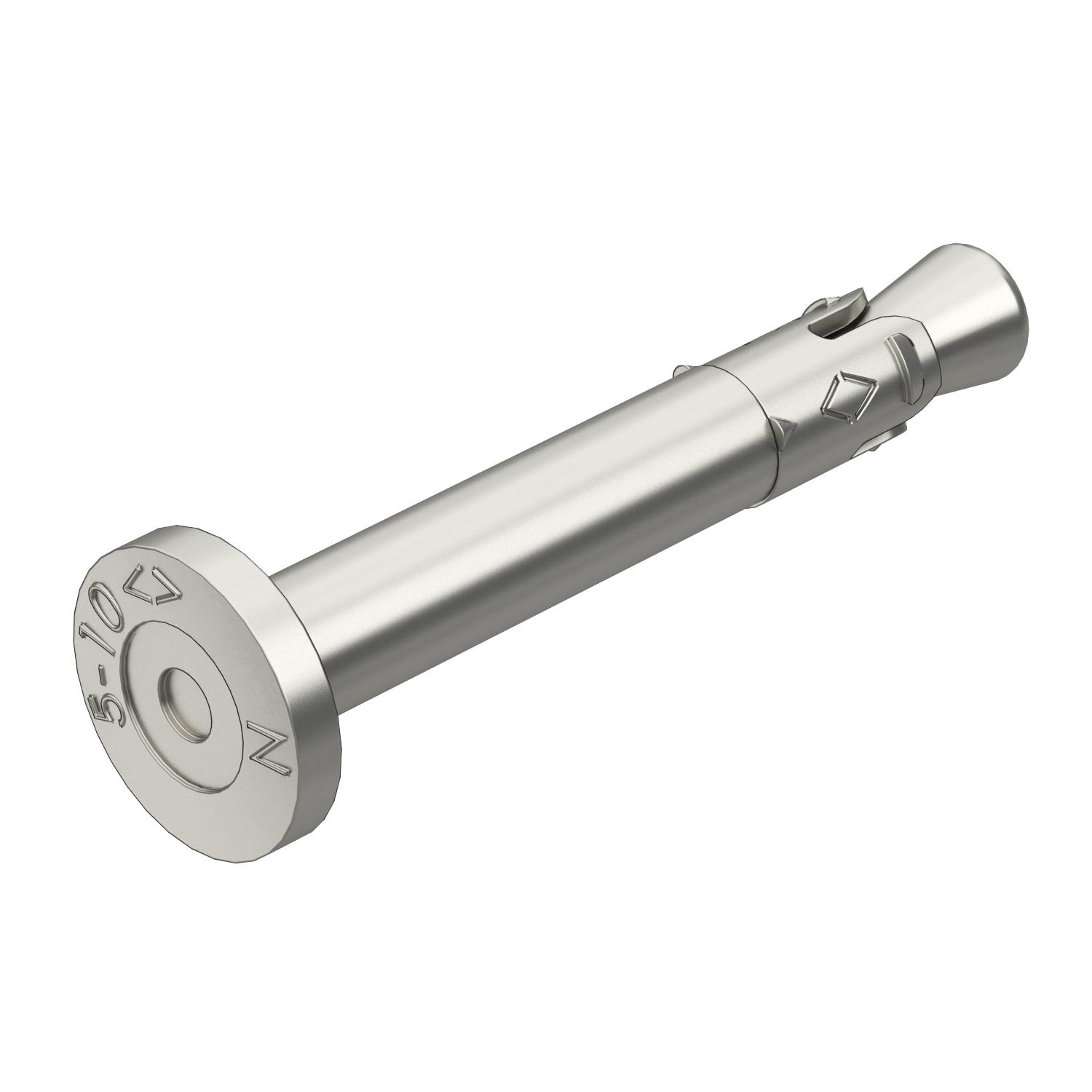

Nail anchor N-K with nail head, A5
Št. art. 3498392 | EAN 4012196411931
- Opis izdelka
-
Opis izdelkaThe nail anchor N can be used for multiple fastenings of non-load-bearing systems in areas with highly corrosive impacts in cracked and non-cracked concrete, thereby combining the benefits of a bolt tie with even easier mounting.
The nail anchor only needs to be hammered into the drill hole. When the load occurs, the nail anchor spreads itself and bolts itself in the drill hole.
-
- Tehnični podatki
-
Tehnični podatki

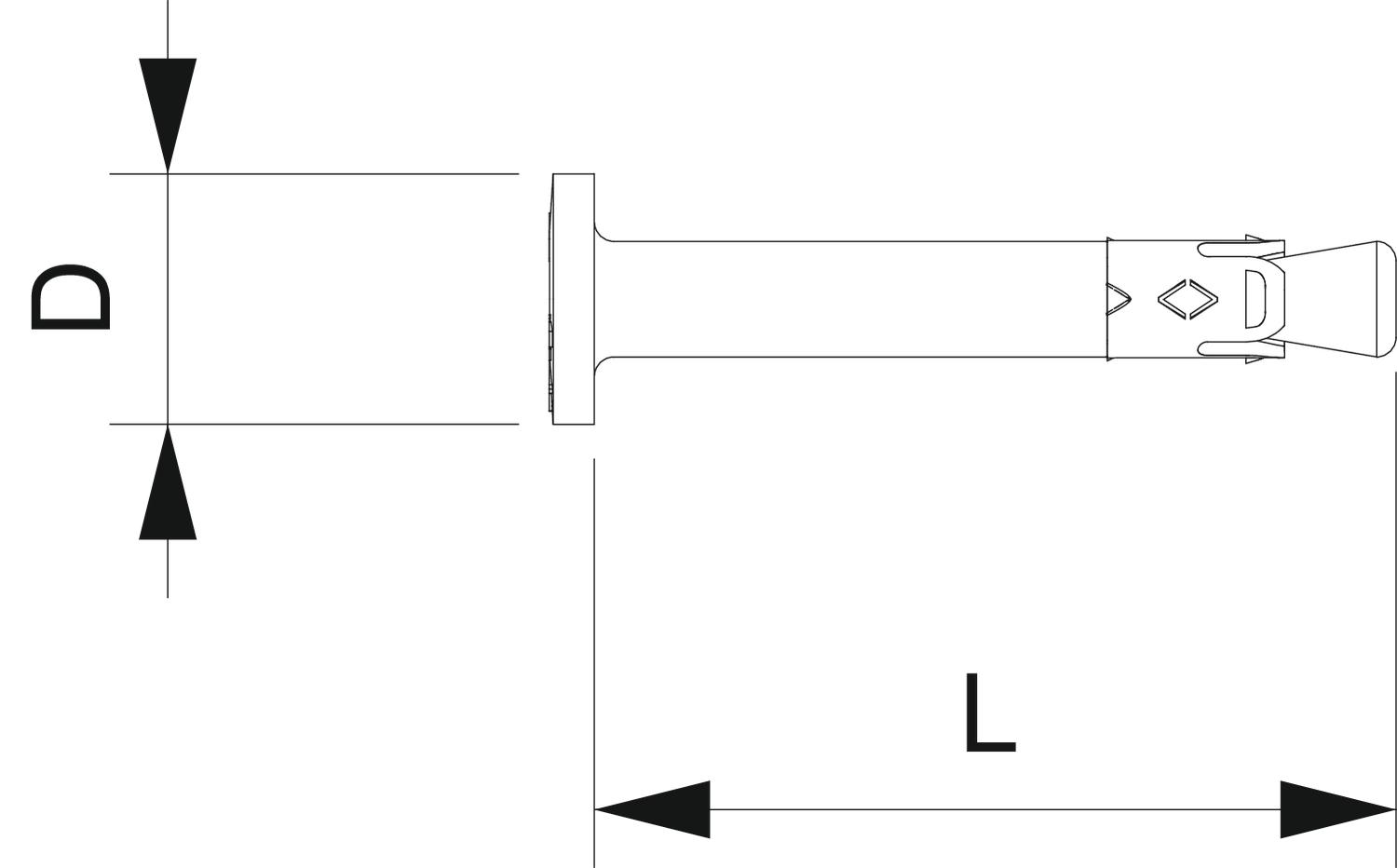

Barva legirano jeklo Dimenzija 6x44mm Dolžina 44 mm Dovoljenja so na voljo da Globina izvrtine 40 mm Izvedba Udar Material Nerjaveče jeklo Mera D min. 13 mm Mera L 44 mm Min. premer izvrtine 6 mm Način montaže vložkov, sider Montaža skozi luknje Primerno za gradbeni material Beton Pritrdilna priprava drugo Prižemna debelina 5 mm Samovrtalen ne - Vsi tipi
- Prenosi
-
Podatkovni list N-K 6-5/44 HCR / 3498392 , 0.17MB , pdfKatalog Kabeltragsysteme , 45.23MB , pdfEU-Izjava o skladnosti N-K 6-5/44 HCR / 3498392 , 0.25MB , pdfNavodila za montažo General information on the mounting , 2.61MB , pdfNavodila za montažo Navodila za montažo udarnega sidra N; N-K , 0.98MB , pdf
