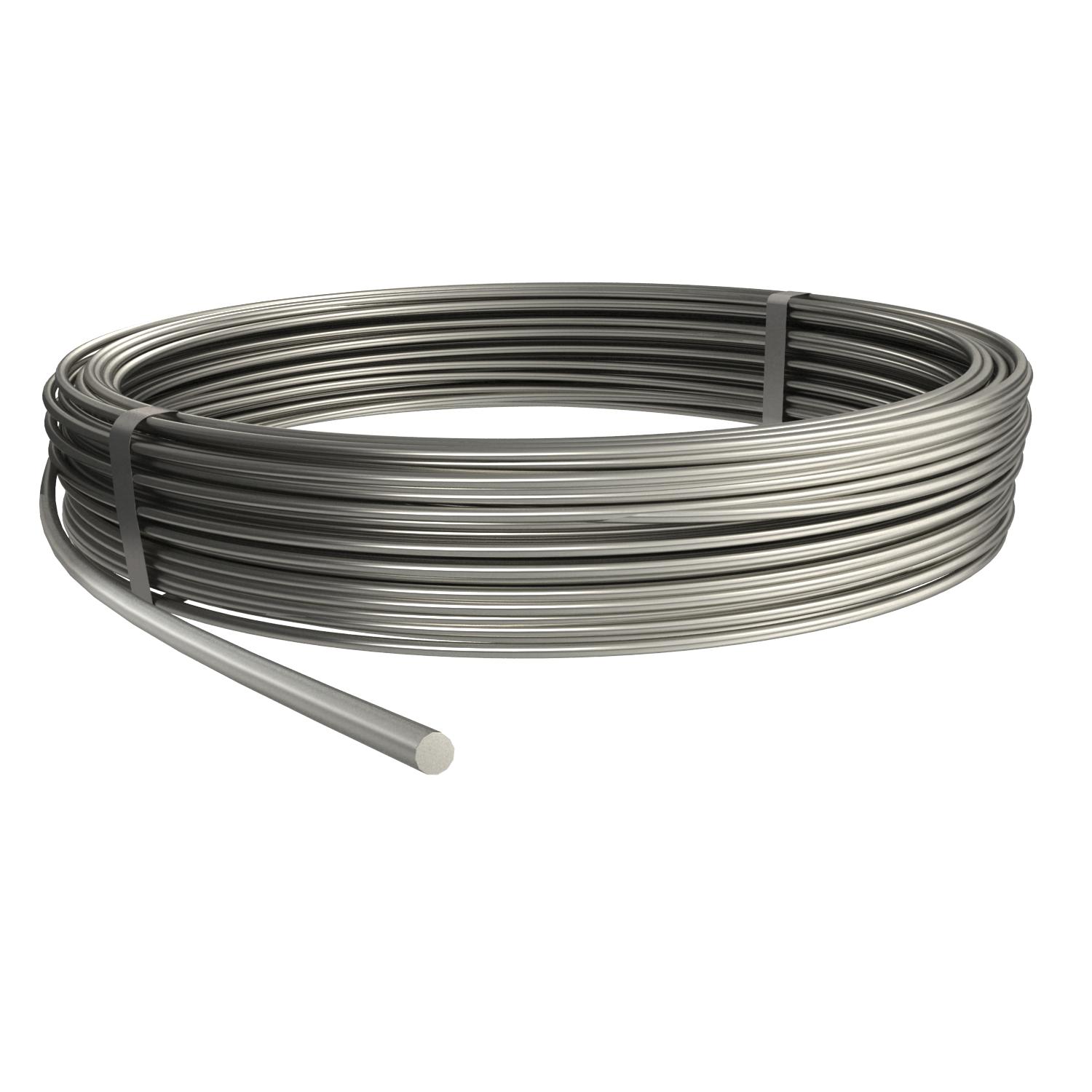

Okrogli prevodnik iz nerjavečega jekla A2

Št. art. 5021227 | EAN 4012195801375

Opis izdelka

Opis izdelka

• možnost uporabe kot odvod po standardu DIN EN 62561-2 (VDE 0185-561-2)
• ustreza zahtevam standarda VDE 0185-305 (IEC 62305)
• RD 10-V4A za uporabo pod zemljo
• v skladu s standardom za ozemljitev temeljev DIN 18014 je pod zemljo zahtevan V4A
  • Lightning current-tested
Tehnični podatki

Tehnični podatki

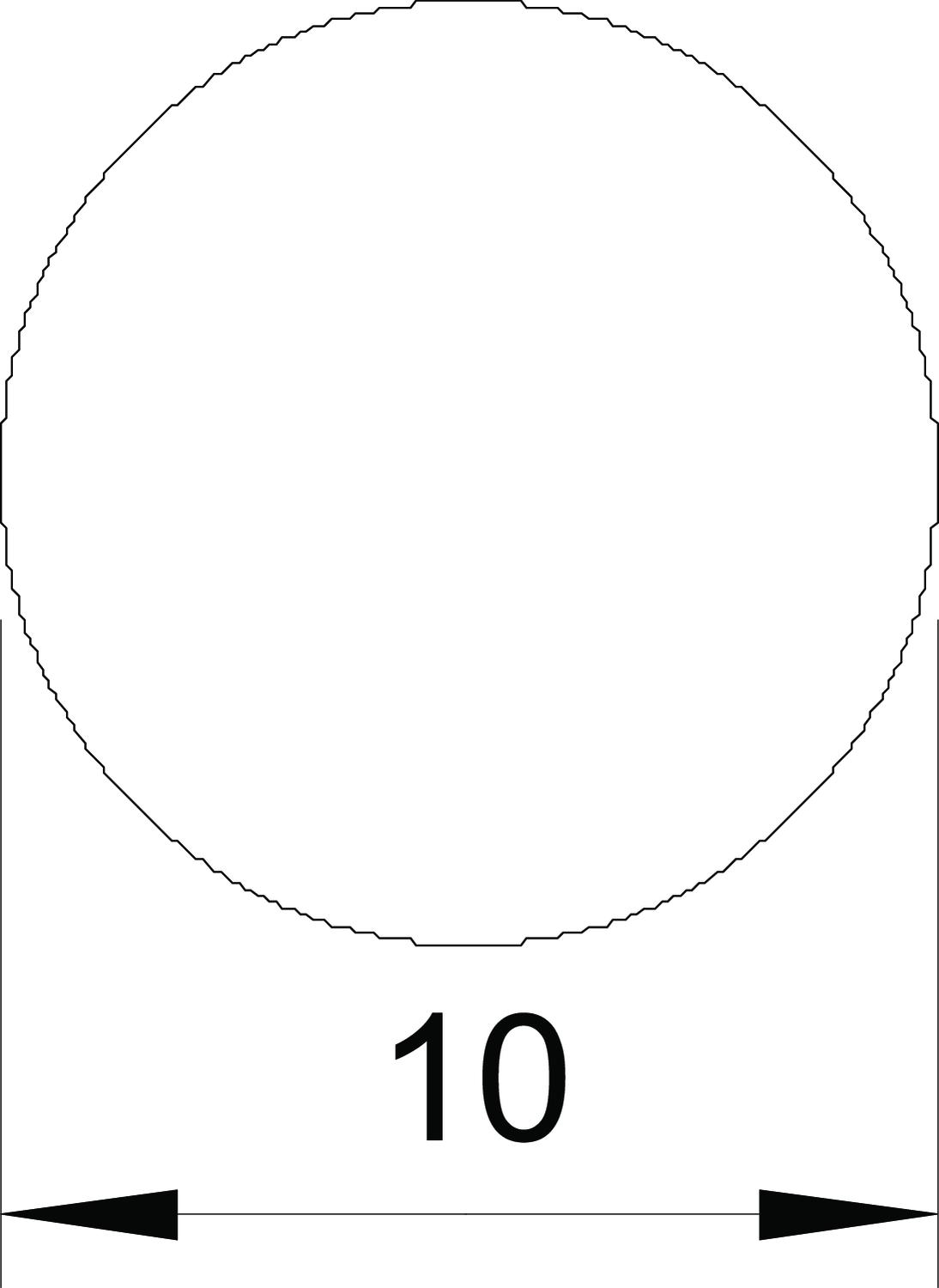

Dimenzija 10mm
Lastnosti materiala drugo
Length tolerance ± 5 %
Material Nerjaveče jeklo 1.4301
Material plašča brez
Mera D 10 mm
Običajni obroč (pribl. kg) 32
Običajni obroč (pribl. m) 50
Premer 10 mm
Presek 78 mm²
Proti visoki napetosti odporna, izolirana izvedba ne
Število posameznih žic 1
Vsi tipi

Vsi tipi

Tip Premer Običajni obroč (pribl. kg) Običajni obroč (pribl. m) Presek Material Št. art. Količina Min. prodajna enota
RD 10-V2A 10 mm 32 50 78 mm² Nerjaveče jeklo 1.4301 5021227
50 m
RD 8-V2A 8 mm 50 125 50 mm² Nerjaveče jeklo 1.4301 5021235
125 m
RD 10-V4A 10 mm 32 50 78 mm² Edelstahl, rostfrei 1.4571/1.4404 5021642
50 m
RD 8-V4A 8 mm 50 125 50 mm² Edelstahl, rostfrei 1.4571/1.4404 5021644
125 m
RD 10-V4A 10 mm 50 80 78 mm² Edelstahl, rostfrei 1.4571/1.4404 5021647
80 m
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Protective cap for connection lugs, reflective Protective cap for connection lugs, reflective ProtectionBall 5018014
25 Kos
Cable bracket for Rd 8 mm, through-way Ø 5 mm Cable bracket for Rd 8 mm, through-way Ø 5 mm 177 20 VA M6 5207339
20 Kos

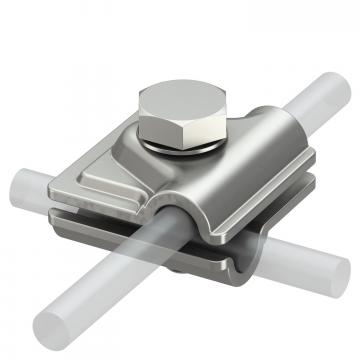

Vario quick connector A4 Vario quick connector A4 249 8-10 V4A 5311404
10 Kos
Cross-connector with intermediate plate for Rd 8−10 mm A4 Cross-connector with intermediate plate for Rd 8−10 mm A4 252 8-10 V4A 5312318
10 Kos
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 252 8-10x16 V4A 5312346
10 Kos
Cross-connector round/round without intermediate plate A4 Cross-connector round/round without intermediate plate A4 253 8-10 V4A 5312582
25 Kos
Cross-connector for round conductors and flat conductors A4 Cross-connector for round conductors and flat conductors A4 252 8-10xFL30V4A 5312656
10 Kos

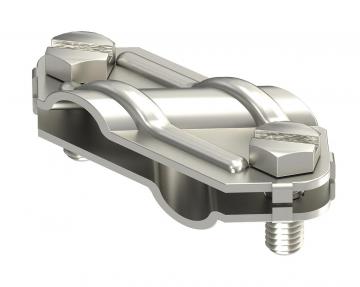

Cross-connector for flat conductors and round conductors stainless steel Cross-connector for flat conductors and round conductors stainless steel 250 VA 5312922
25 Kos

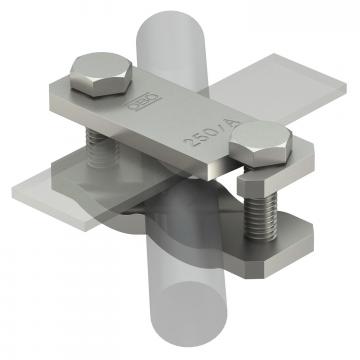

Diagonal clamp for flat conductors and round conductors A2 Diagonal clamp for flat conductors and round conductors A2 250 A-VA 5313023
10 Kos
