Prazno ohišje X 06 z nosilnim profilom s kapico

Št. art. 2005490 | EAN 4012196582822

2005490 / X06C R LGR
137x105x68 mm
IP67
svetlo siva RAL 7035
Opis izdelka

Opis izdelka

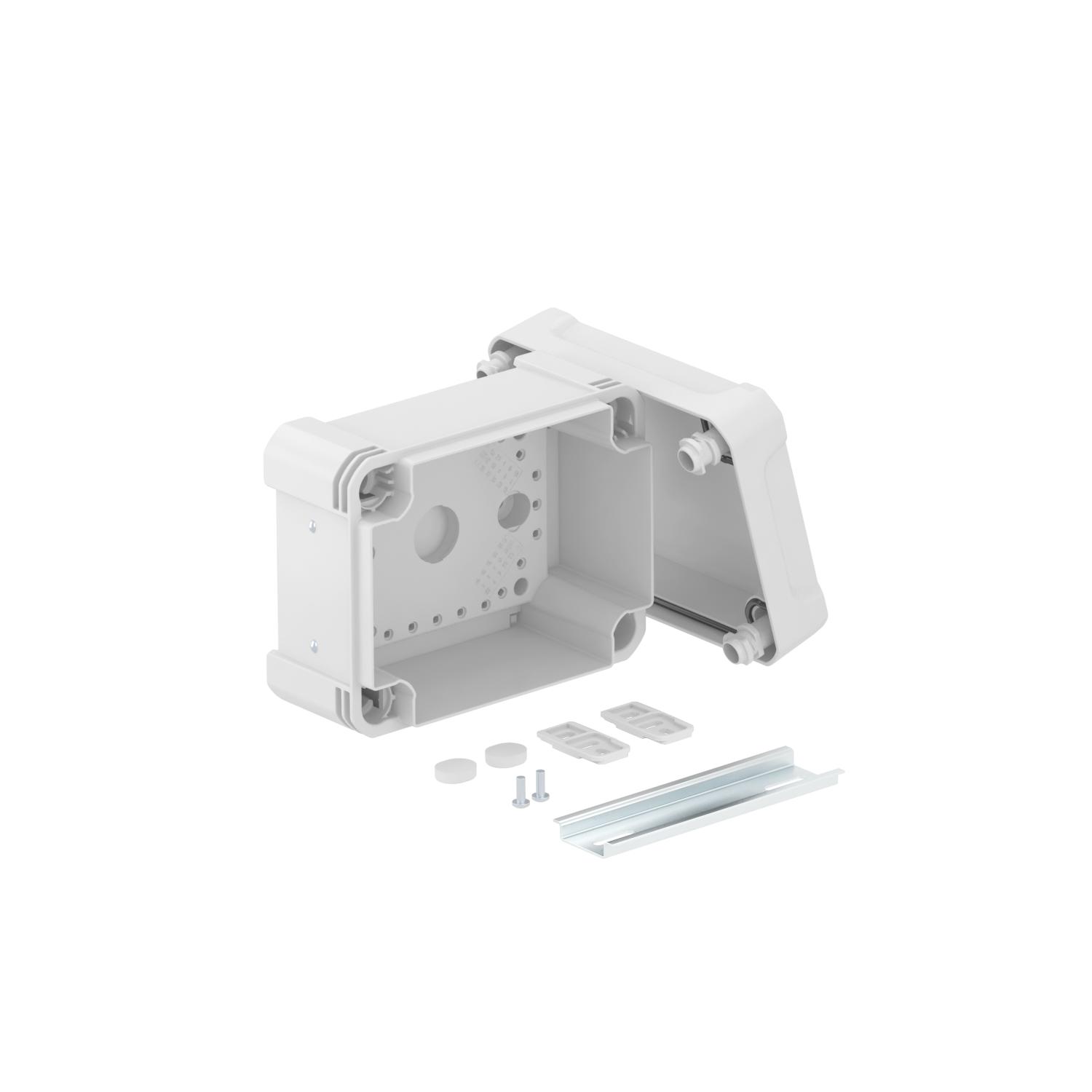

Junction box with hat profile rail for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

With hat profile rail, type 2069, and fastening set.

Junction box according to EN 60670. Impact resistance IK09 according to EN 50102. Protection rating IP67 according to EN 60529.


  • ENEC Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 67
  • Nominal voltage 750 V
  • IK Code 09
Tehnični podatki

Tehnični podatki

Barva svetlo siva RAL 7035

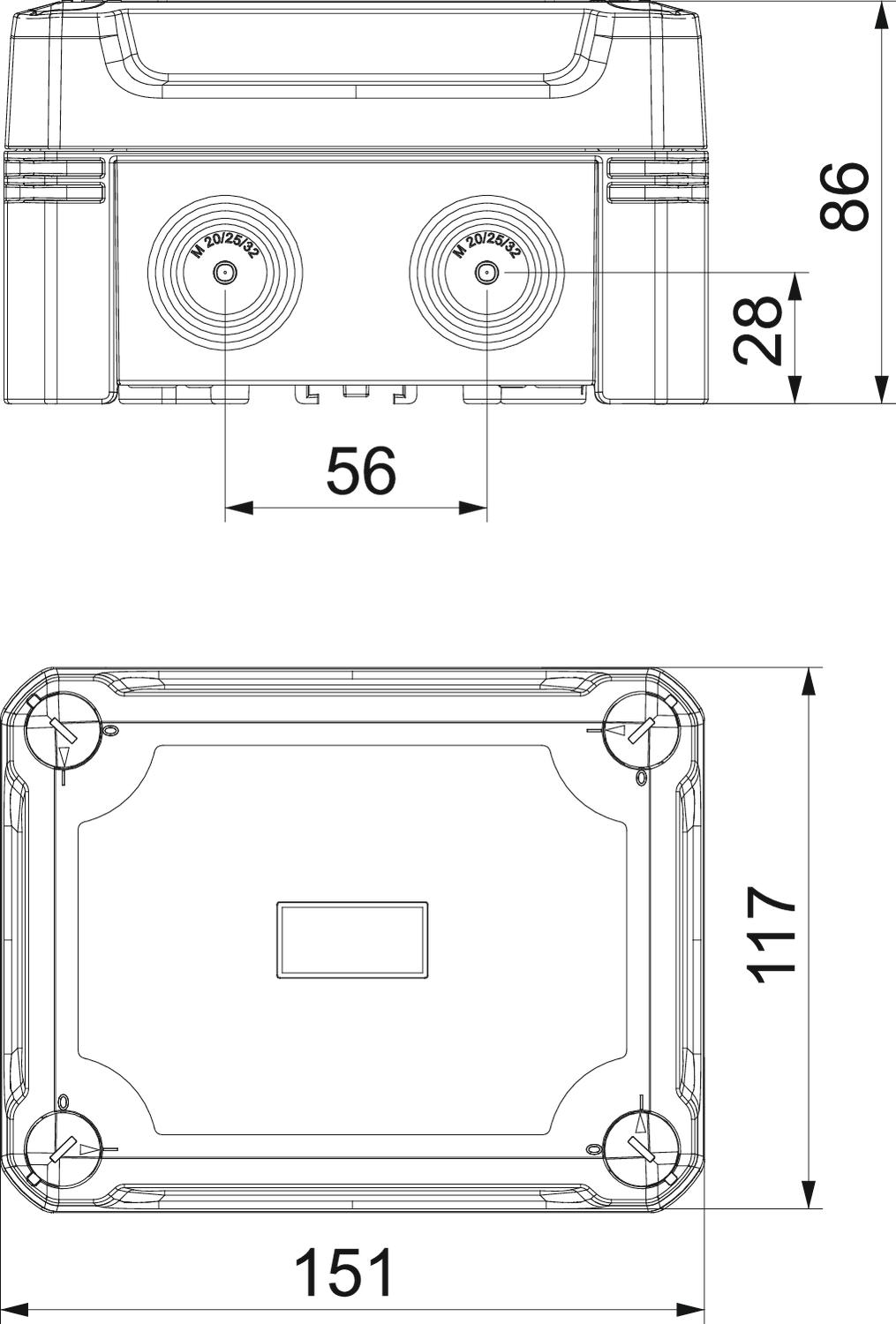

Dimenzija 150x116x86
Dolžina 151 mm
IK-koda stopnje zaščite IK09
Maks. temperaturno območje uporabe 60 °C
Material Polikarbonat
Min. temperaturno območje uporabe -5 °C
Možnost priključitve ne
Notranje mere 137x105x68 mm
Oblika pravokotno
Odporen proti vremenskim vplivom da
Primerno za zunanjo uporabo da
Pritrditev pokrova privito
S pokrovom da
Širina 117 mm
Višina 86 mm
Vrsta zaščite IP67
Vsi tipi

Vsi tipi

Tip Notranje mere Vrsta zaščite Barva Št. art. Količina Min. prodajna enota
X06C R LGR 137x105x68 mm IP67 svetlo siva RAL 7035 2005490
1 Kos
