Prazno telo Terazzo za nivelirne kasete velikosti R4
Št. art. 7404382 | EAN 4012196633944
- Opis izdelka
-
Opis izdelka

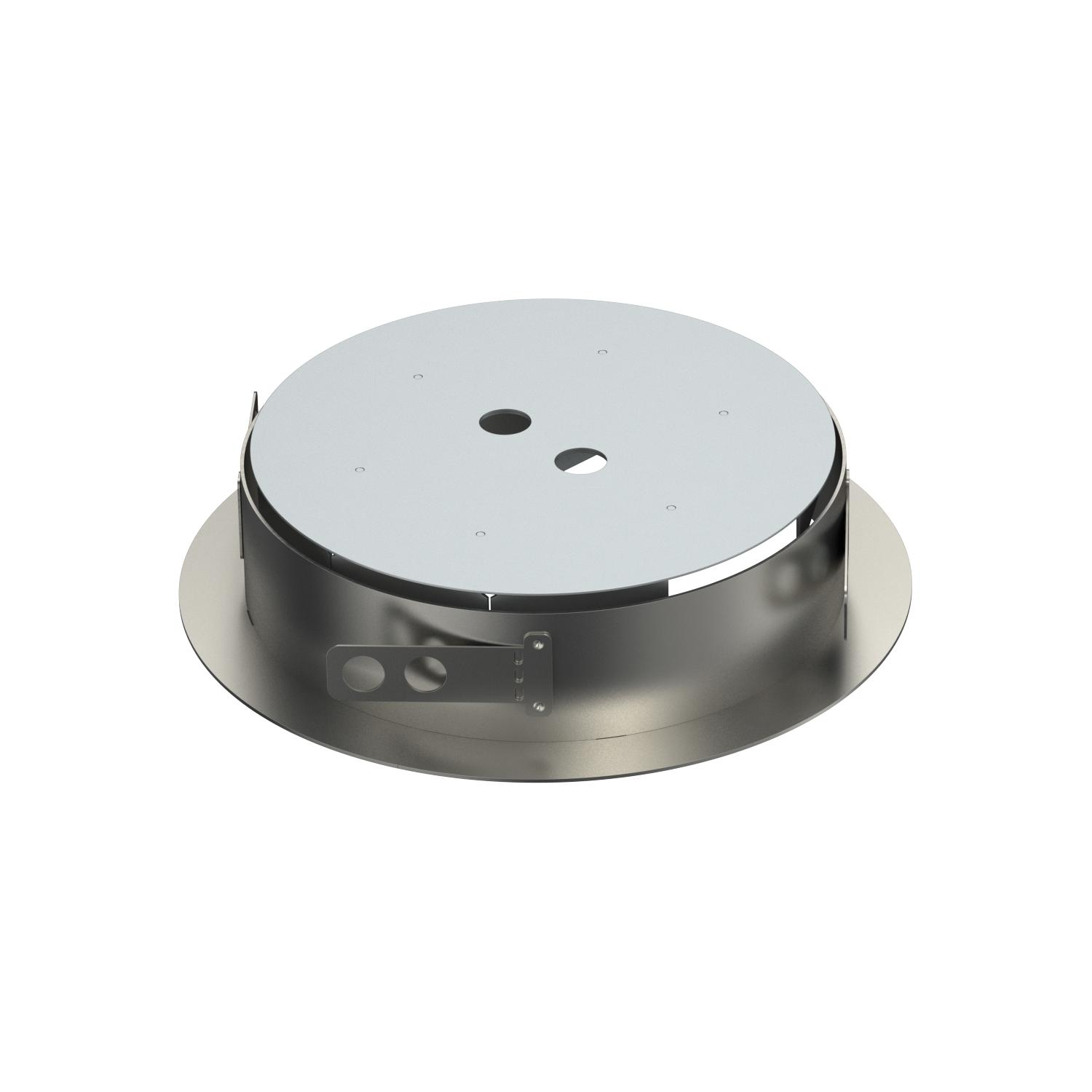

Lined body, suitable for polishing, for the direct and jointless installation of round height-adjustable cassettes, nominal size 4, into surface-finished screeds/terrazzo floorings. The casing is laid floatingly onto underfloor boxes with mounting lids of nominal size 4, closing the gaps between underfloor box and cassette frame. The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.
- Tehnični podatki
-
Tehnični podatki

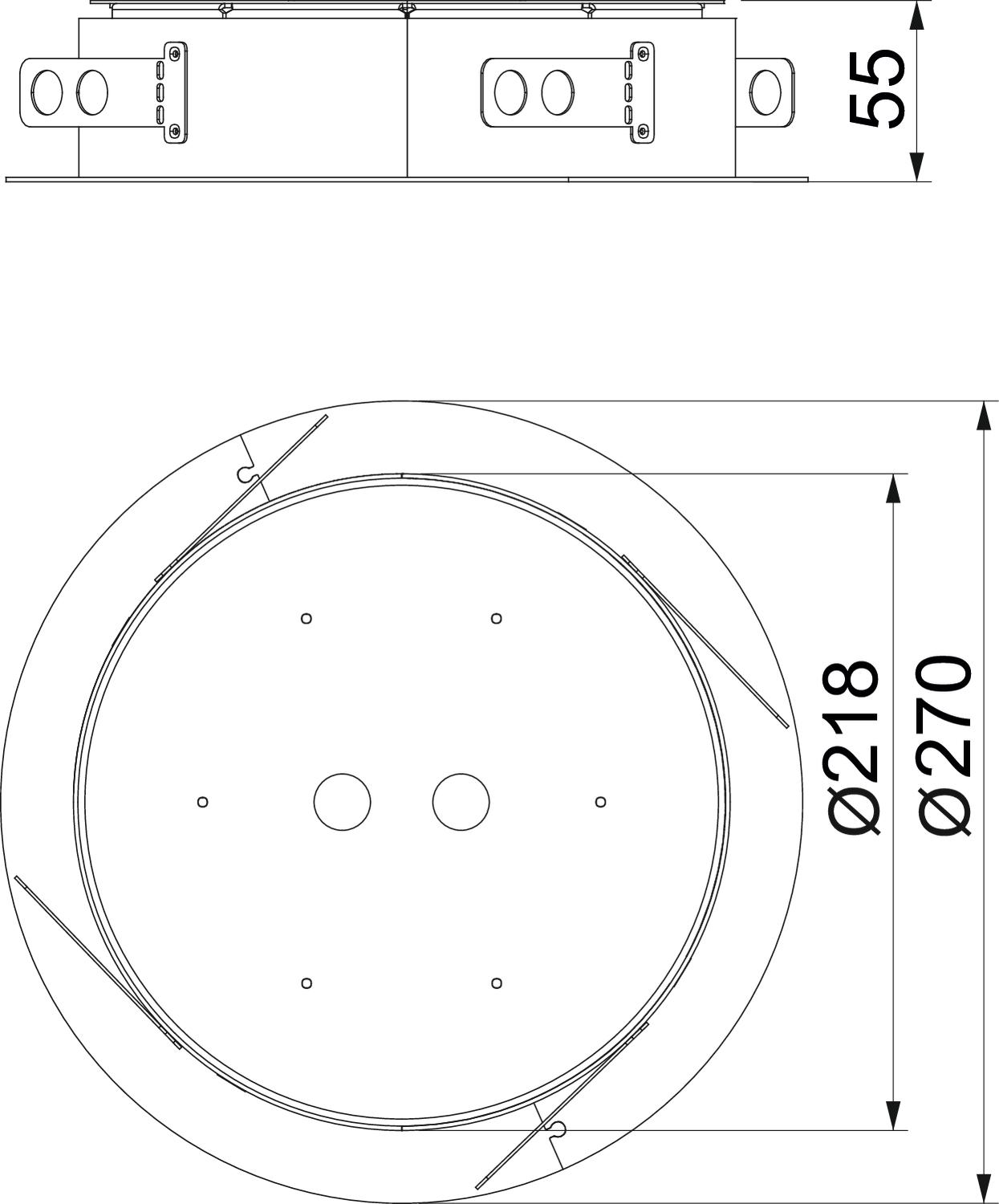

Dimenzija Ø270x55 Maks. višina tal 200 mm Material Jeklo Mera A 270 mm Mera a 218 mm Mera H 55 mm Min. višina tal 130 mm Nazivna velikost za enote za vgradnjo aparatov R4 Površina neprekinjeno cinkano v ognju Višina 55 mm - Vsi tipi
- Prenosi
-
Podatkovni list SK RK4R / 7404382 , 0.29MB , pdfNavodila za montažo Navodila za montažo SK RK, SK RKR , 0.04MB , pdf
