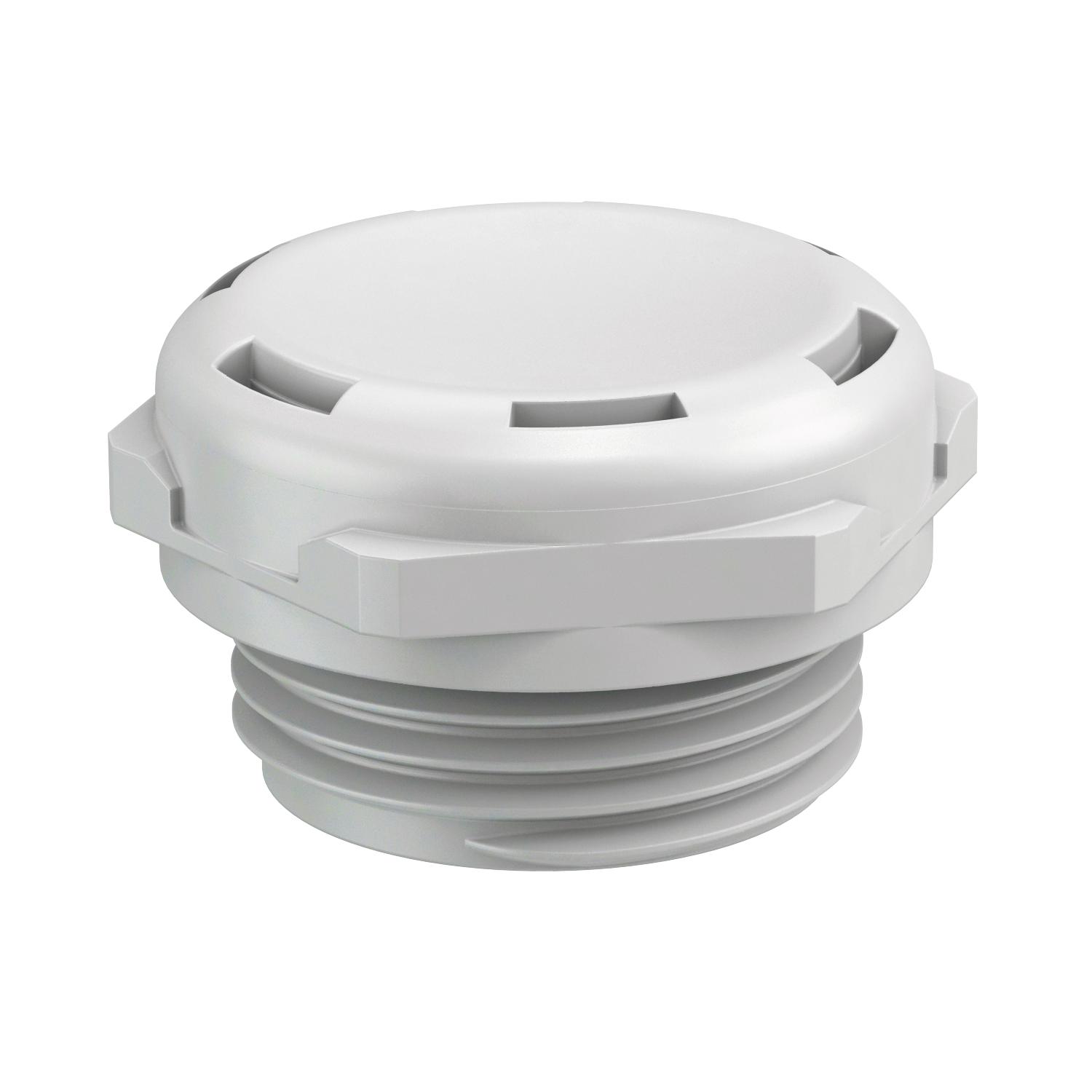

Pressure compensation element

Št. art. 2034680 | EAN 4012196595723

2034680 / 109 M20 LGR
M20 x 1,5
Opis izdelka

Opis izdelka

The pressure compensation element, type 109 M20 LGR compensates for pressure differences in junction boxes, small distributors and connection sockets with an M20 opening and avoids the formation of condensation water in sealed housings. The polyamide pressure compensation element has an IP68/IP69 protection rating. This remains intact, even after the installation of the pressure compensation element. The pressure compensation element is suitable for use in industrial environments and in exterior areas.
The pressure compensation element is surrounded by an ePTFE membrane, which is permeable in both directions to air. The air throughput at a pressure difference of 70 mbar is 110 L/h. At the same time, moisture cannot enter the housing from outside.
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Tehnični podatki

Tehnični podatki

Barva svetlo siva RAL 7035
Dimenzija M20x1,5
Maks. temperaturno območje uporabe 100 °C

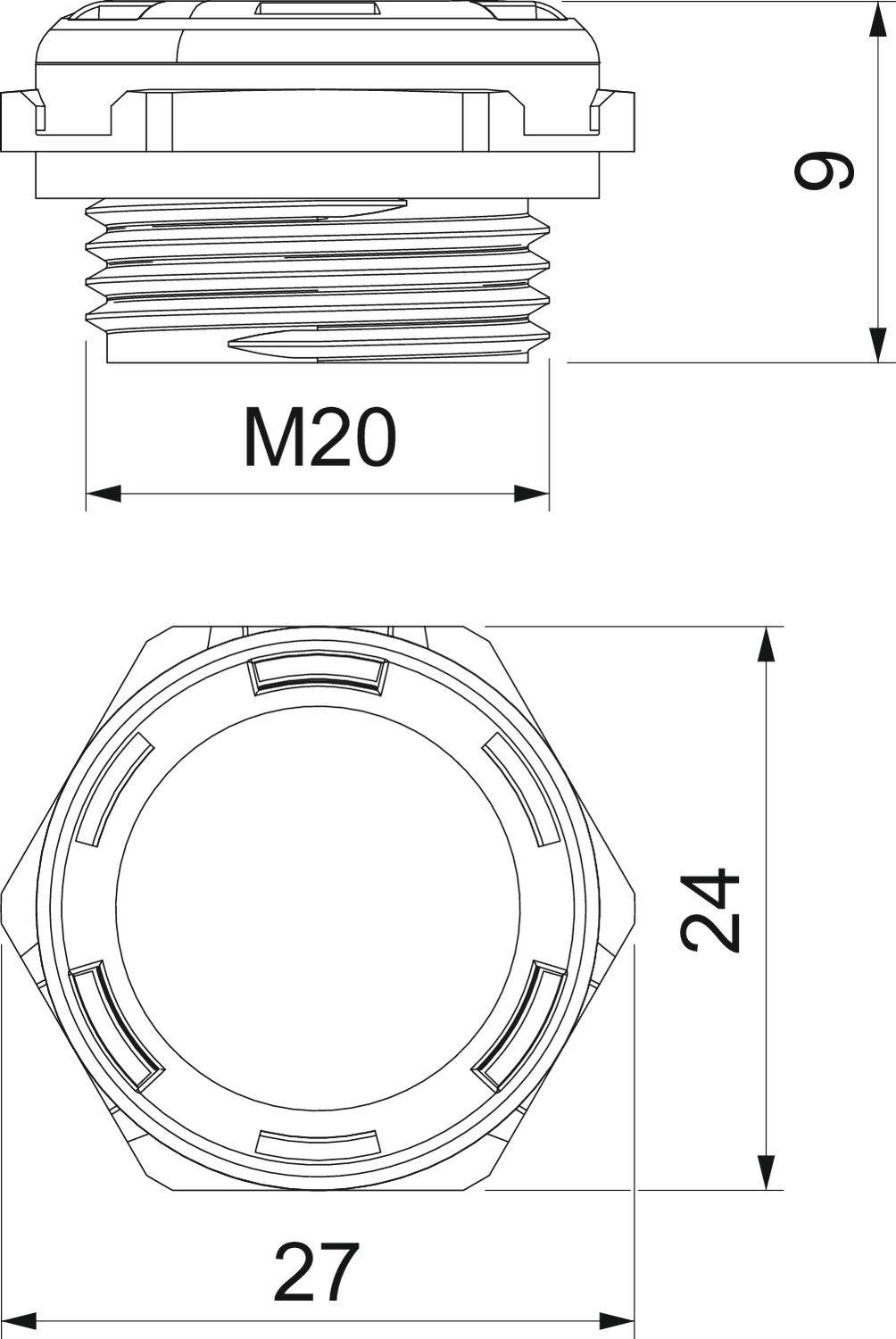

Mera e 27 mm
Mera L 9 mm
Min. temperaturno območje uporabe -40 °C
Navoj M20 x 1,5
Nazivna velikost navoja, metrični/PG 20
Ojačan s steklenimi vlakni da
Strmina navoja 1,5 mm
Tip navoja metrično
Udarna trdnost da
Velikost ključa 24
Višina 15,4 mm
Vrsta zaščite IP68
Zaščiten pred eksplozijo ne
Vsi tipi

Vsi tipi

Tip Navoj Št. art. Količina Min. prodajna enota
109 M20 LGR M20 x 1,5 2034680
1 Kos
