Opomba: ta izdelek je ukinjen.

PYROLINE® Con D BSK I90/E30 fire protection duct 1000 | 320 | 260 | 150 | 105

PYROLINE® Con D BSK I90/E30 fire protection duct

Št. art. 7215166 | EAN 4012196025312

Št. art. / Tip

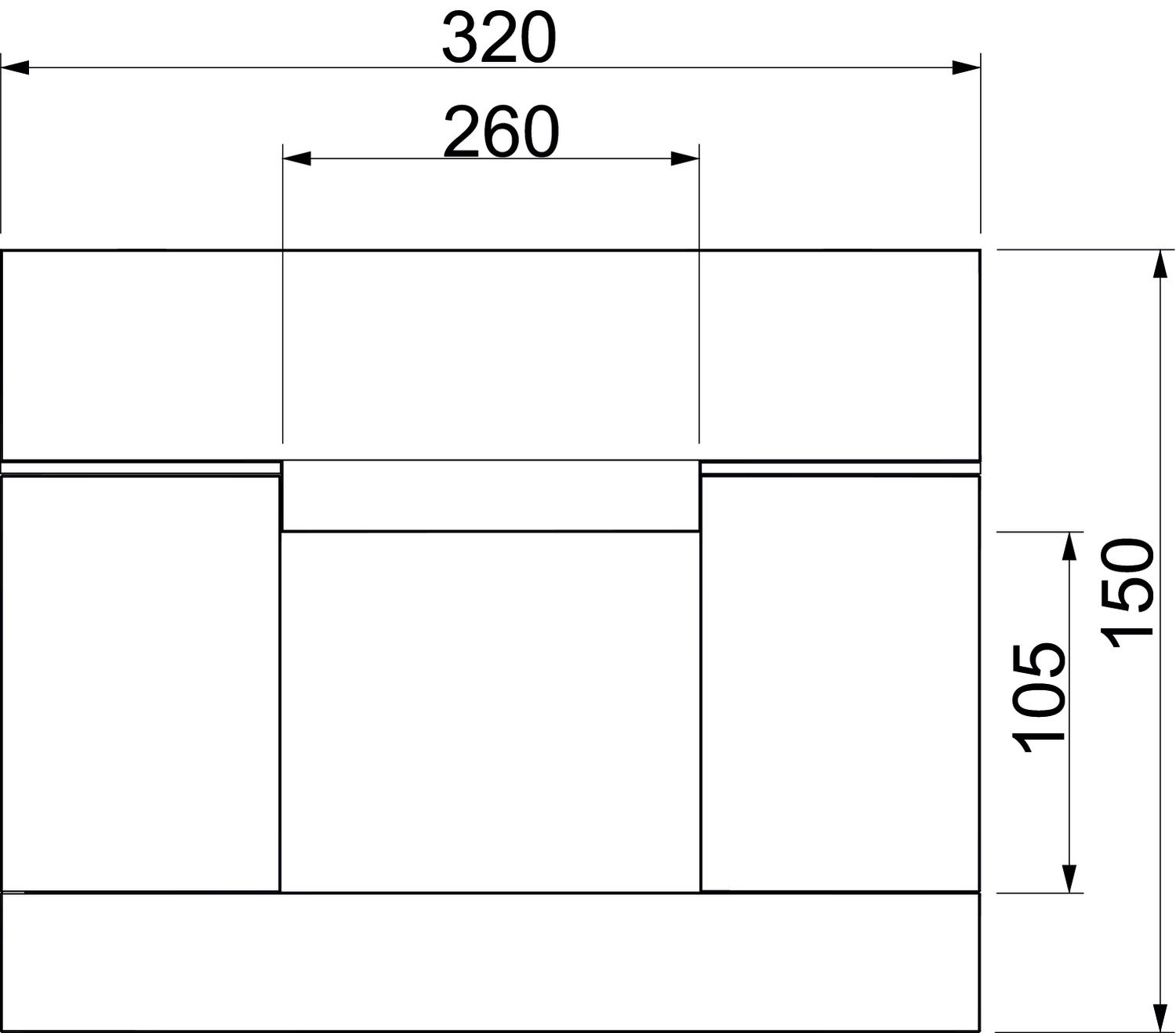

Dolžina	1000 mm

Mera B

Mera b

Mera H	150 mm

Mera H	105 mm

Opis izdelka

Opis izdelka

Fire protection duct made from water and frost-proof fibreglass lightweight concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I90 as I duct according to DIN 4102 Part 11 and classification E30 as E duct according to DIN 4102 Part 12.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.

Tehnični podatki

Tehnični podatki

Barva	siva
Dimenzija	105x260
Dolžina	1000 mm
Material	Beton s steklenimi vlakni
Material izolirnega materiala	Lahko beton s steklenimi vlakni
Mera B	320 mm
Mera b	260 mm
Mera H	105 mm

Mera H	150 mm
Možnost ločilnih pregrad	da
Oplaščenje	brez
Pritrditev pokrova	priviti
Razred požarne odpornosti E – ohranjevanje funkcij	30
Razred požarne odpornosti I – inštalacijski kanal	90
S perforacijo	ne
Število proti ognju odpornih strani	3

Vsi tipi

Vsi tipi

Tip	Dolžina	Mera B	Mera b	Mera H	Mera H	Št. art.	Količina	Min. prodajna enota
BSK 091016	1000 mm	220 mm	160 mm	150 mm	105 mm	7215162	m	1 m
BSK 091026	1000 mm	320 mm	260 mm	150 mm	105 mm	7215166	m	1 m

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464	Kos	1 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm	LHS 20	7215288	Kos	10 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm	LHS 40	7215290	Kos	10 Kos
Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm	LHS 60	7215292	Kos	10 Kos
