PYROLINE® Con D PLC fire protection duct EI90 1000 | 180 | 100 | 140 | 80
morepic-1 morepic-2 video-1 video-2

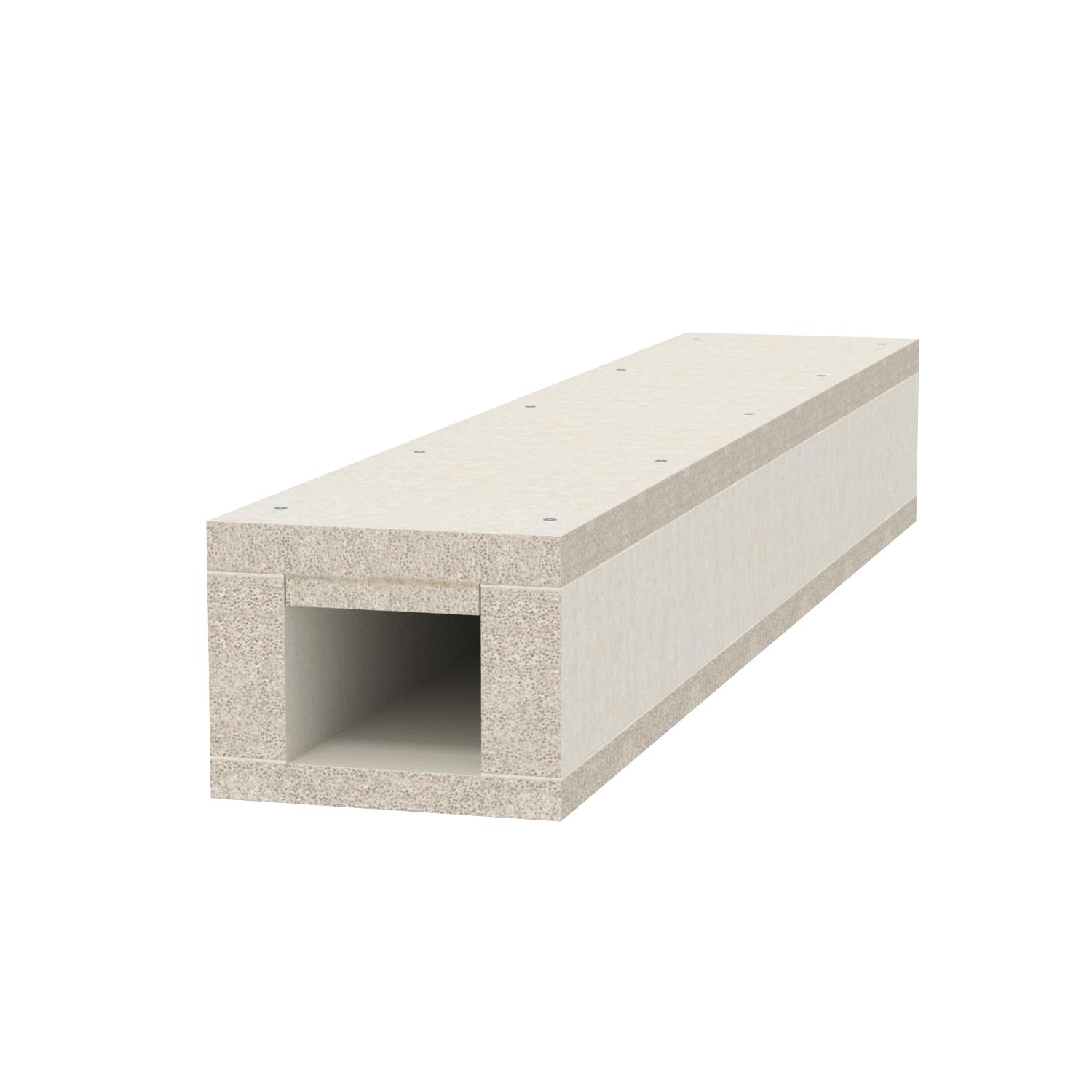

PYROLINE® Con D PLC fire protection duct EI90

Št. art. 7215810 | EAN 4012196836444

7215810 / PLCD D090810
1000 mm
180 mm
100 mm
140 mm
80 mm
Opis izdelka
Opis izdelka
Fire protection duct made of water and frost-resistant fibreglass lightweight concrete of material class A1 according to EN 13501-1 for fireproof routing of cables in escape and rescue routes. EI60 classification as installation duct according to EN 13501-2 on the basis of tests according to EN 1366-5. When there is an internal fire load (cable fire), the duct prevents the spread of fire from one fire section to another.

Mounting of the duct directly on walls or under ceilings.

Including countersunk head screws and sealing strip.


  • Communautés Européennes, EC declaration of conformity according to EC directives
Tehnični podatki

Tehnični podatki

Barva siva
Dimenzija 1000x100x80
Dolžina 1000 mm
Klasifikacija EI – inštalacijski kanal 90
Material Beton s steklenimi vlakni
Material izolirnega materiala Lahko beton s steklenimi vlakni

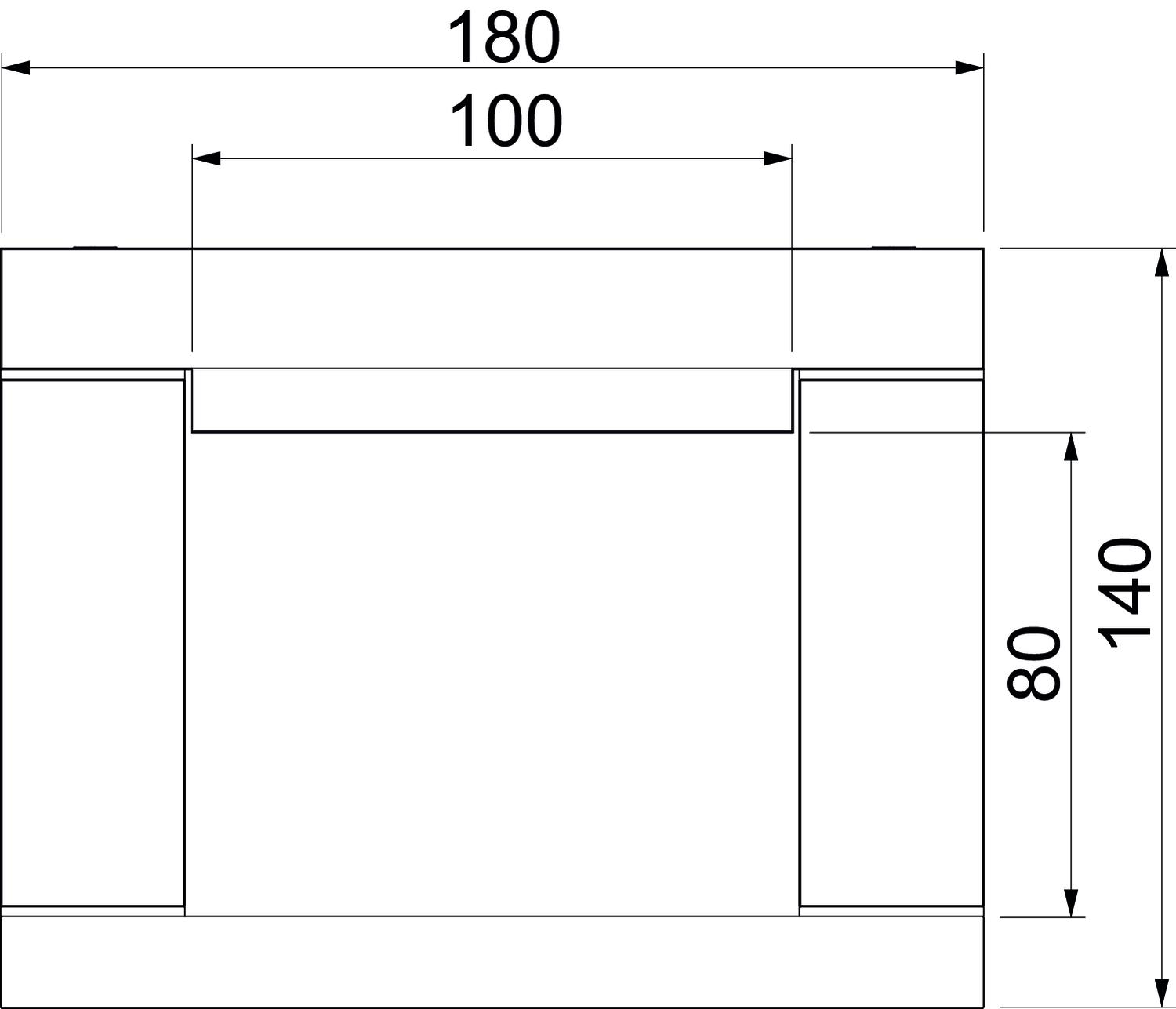

Mera b 100 mm
Mera B 180 mm
Mera H 140 mm
Mera H 80 mm
Oplaščenje brez
Pritrditev pokrova priviti
S perforacijo ne
Število proti ognju odpornih strani 3
Vsi tipi

Vsi tipi

Tip Dolžina Mera B Mera b Mera H Mera H Št. art. Količina Min. prodajna enota
PLCD D090810 1000 mm 180 mm 100 mm 140 mm 80 mm 7215810
1 m
Pribor

Sistemski dodatki

Proizvodi Tip Št. art. Količina Min. prodajna enota

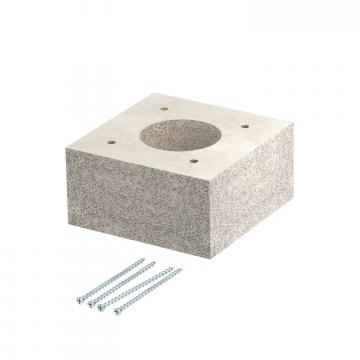

Doubler for PYROLINE® Con fire protection duct Doubler for PYROLINE® Con fire protection duct KAD-8040 7215464
1 Kos
Insulation layer creator in a cartridge Insulation layer creator in a cartridge DSX-K 7202300
1 Kos

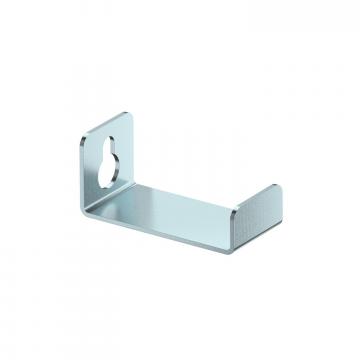

Separating bracket for wall mounting Separating bracket for wall mounting PLCD-SB0810 7215480
25 Kos

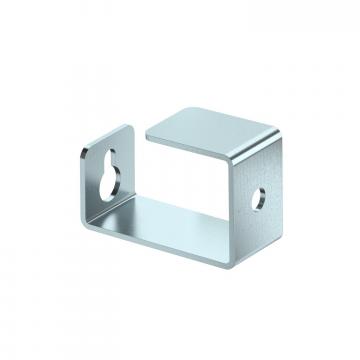

Separating clamp for ceiling mounting Separating clamp for ceiling mounting PLCD-SC0810 7215490
25 Kos

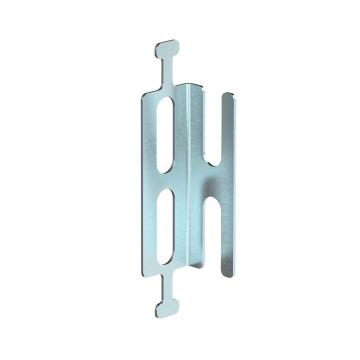

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 20 mm LHS 20 7215288
10 Kos

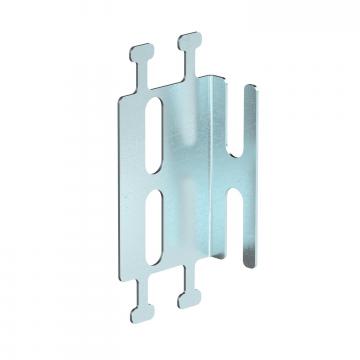

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 40 mm LHS 40 7215290
10 Kos

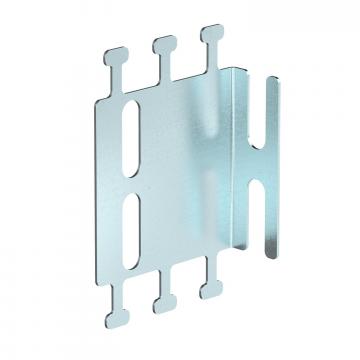

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm LHS 60 7215292
10 Kos
