PYROPLUG® MagicBox, four-sided, interior height 110 mm

Št. art. 7204136 | EAN 4012196811861

114 mm
Opis izdelka

Opis izdelka

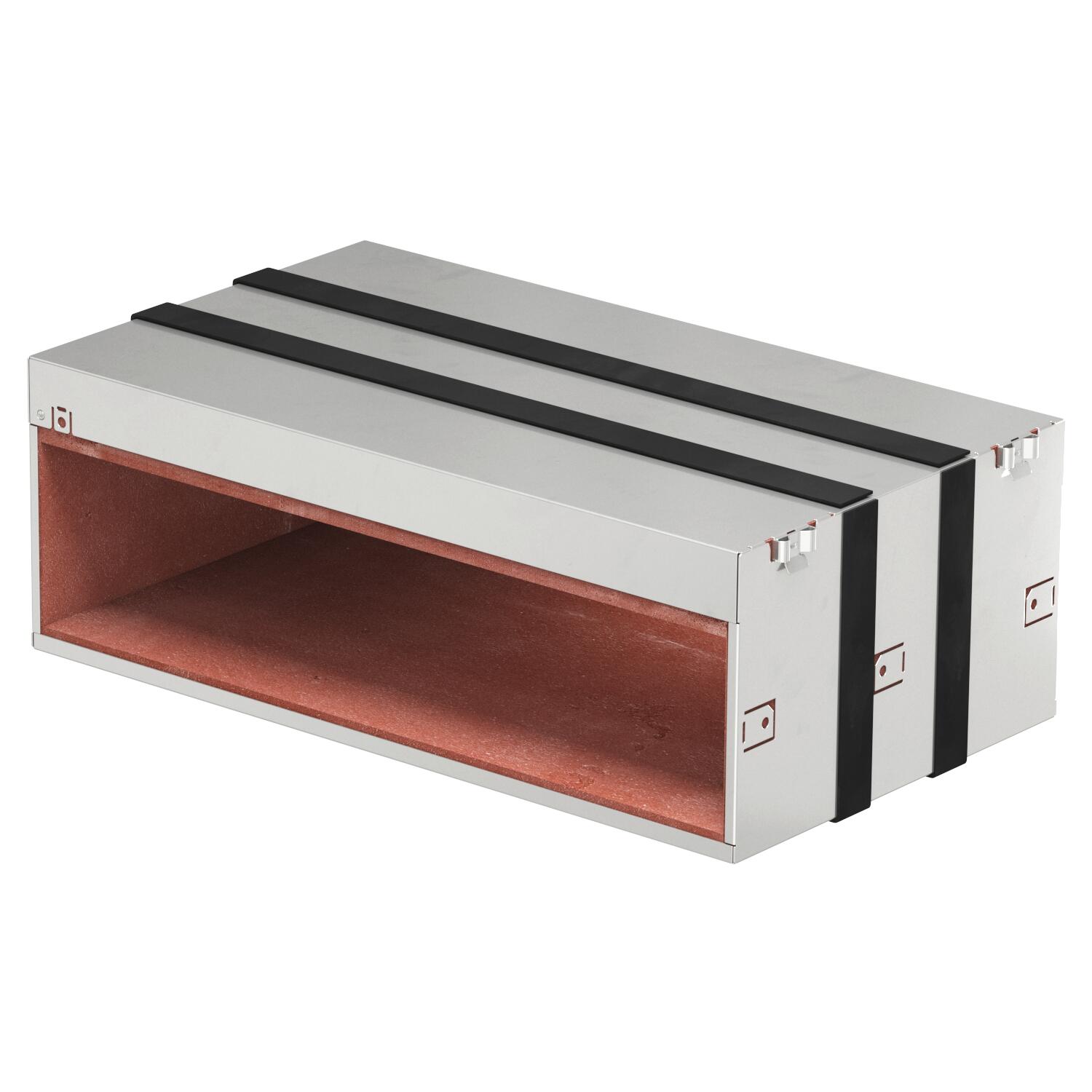

Fire protection box as an insulation system, made of two-part stainless steel housing with intumescent fire protection inlays. Can be used in walls and ceilings. Quick mounting through the releasable Magic connection. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Tehnični podatki

Tehnični podatki

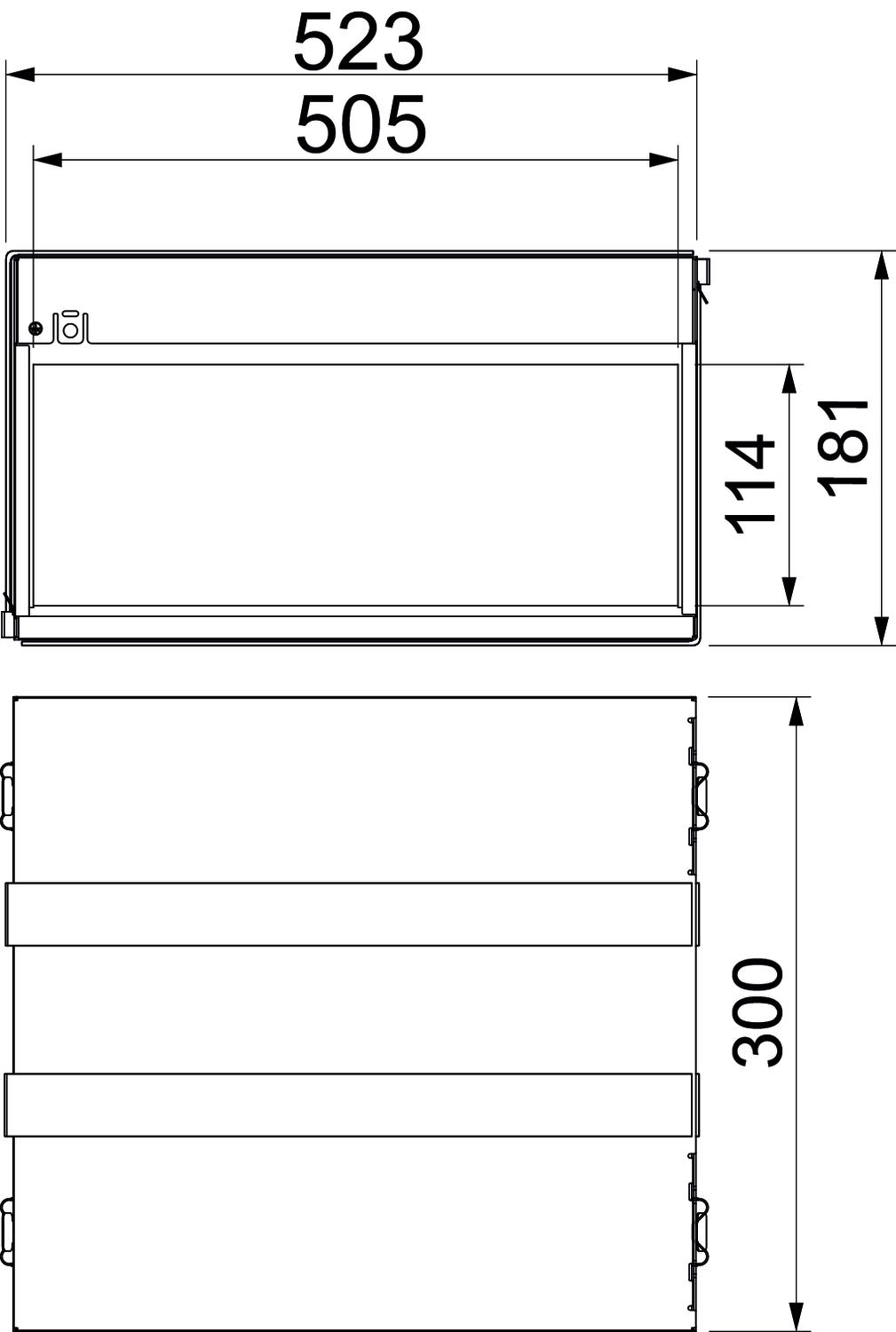

Dimenzija 300x523x181
Dolžina 300 mm
Izvedba protipožarne zaščite Pregradna škatla
Material Nerjaveče legirano jeklo 1.4113
Mera d 505 mm
Mera D min. 523 mm
Notranja širina 505 mm
Notranja višina 114 mm
Oblika kotno
Površina surovo, naknadno obdelano
Širina 523 mm
Višina 181 mm
Zahtevan pribor da
Vsi tipi

Vsi tipi

Tip Notranja višina Notranja širina Št. art. Količina Min. prodajna enota
PMB 110-4 A2 114 mm 105 mm 7204120
1 Kos
PMB 120-4 A2 114 mm 205 mm 7204124
1 Kos
PMB 130-4 A2 114 mm 305 mm 7204128
1 Kos
PMB 140-4 A2 114 mm 405 mm 7204132
1 Kos
PMB 150-4 A2 114 mm 505 mm 7204136
1 Kos
PMB 160-4 A2 114 mm 605 mm 7204140
1 Kos
Pribor

Sistemski dodatki

Proizvodi Tip Št. art. Količina Min. prodajna enota
2-component fire protection foam PYROSIT® NG 2-component fire protection foam PYROSIT® NG FBS-S 7203800
1 Kos

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Support construction for insulations, with bracket Support construction for insulations, with bracket SKA 05 VZ 7202436
1 Kos
Support construction for insulations, with pendulum suspension Support construction for insulations, with pendulum suspension SKP 05 VZ 7202446
1 Kos
