PYROPLUG® MagicBox, four-sided, interior height 110 mm 114 | 605

PYROPLUG® MagicBox, four-sided, interior height 110 mm

Št. art. 7204140 | EAN 4012196811892

Št. art. / Tip

Notranja višina	114 mm

Notranja širina

Opis izdelka

Opis izdelka

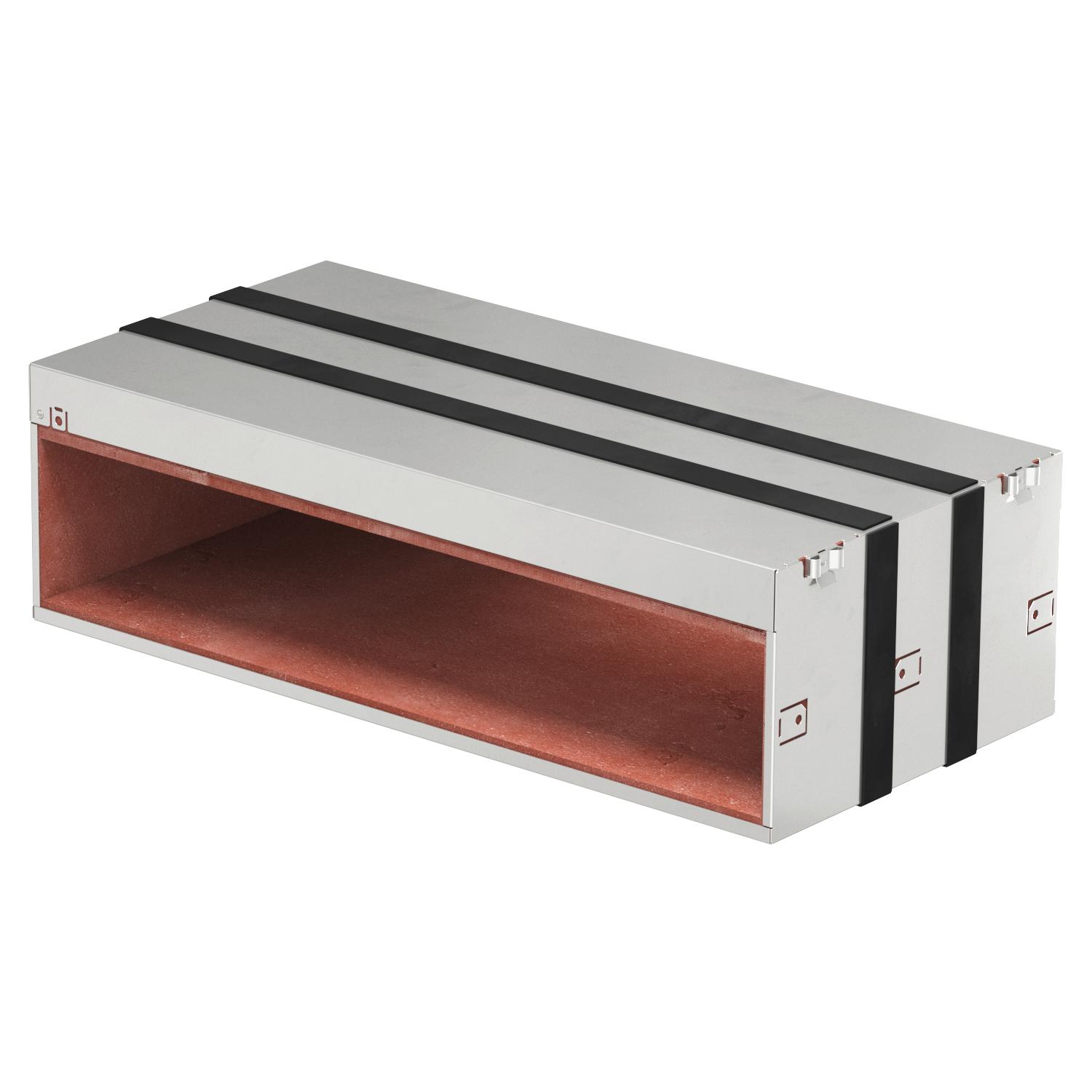

Fire protection box as an insulation system, made of two-part stainless steel housing with intumescent fire protection inlays. Can be used in walls and ceilings. Quick mounting through the releasable Magic connection. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Tehnični podatki

Tehnični podatki

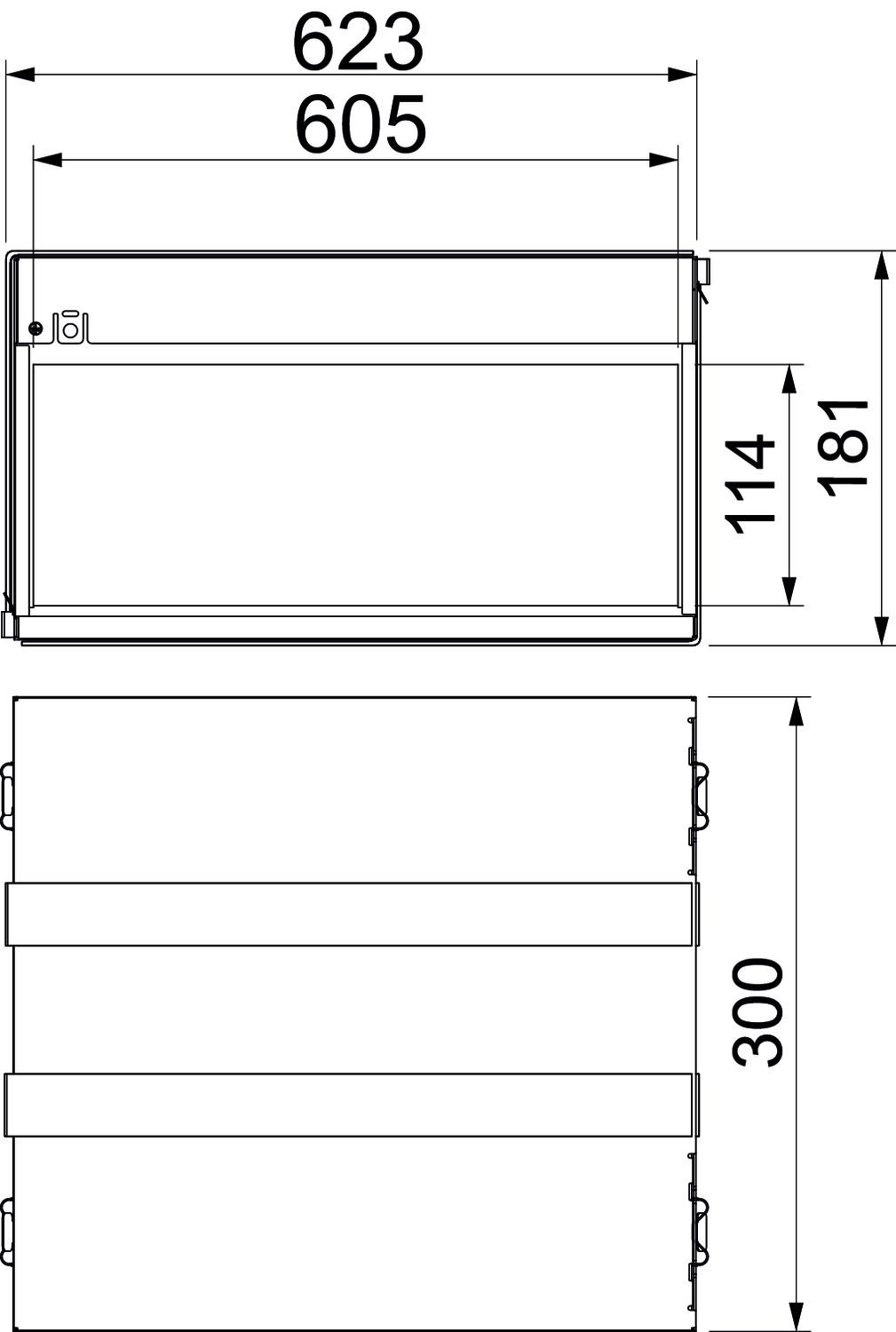

Dimenzija	300x623x181
Dolžina	300 mm
Izvedba protipožarne zaščite	Pregradna škatla
Material	Nerjaveče legirano jeklo 1.4113
Mera d	605 mm
Mera D min.	623 mm
Notranja širina	605 mm

Notranja višina	114 mm
Oblika	kotno
Površina	surovo, naknadno obdelano
Širina	623 mm
Višina	181 mm
Zahtevan pribor	da

Vsi tipi

Vsi tipi

Tip	Notranja višina	Notranja širina	Št. art.	Količina	Min. prodajna enota
PMB 110-4 A2	114 mm	105 mm	7204120	Kos	1 Kos
PMB 120-4 A2	114 mm	205 mm	7204124	Kos	1 Kos
PMB 130-4 A2	114 mm	305 mm	7204128	Kos	1 Kos
PMB 140-4 A2	114 mm	405 mm	7204132	Kos	1 Kos
PMB 150-4 A2	114 mm	505 mm	7204136	Kos	1 Kos
PMB 160-4 A2	114 mm	605 mm	7204140	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	Kos	1 Kos

Montažni pribor

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Support construction for insulations, with bracket	SKA 05 VZ	7202436	Kos	1 Kos
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	Kos	1 Kos
