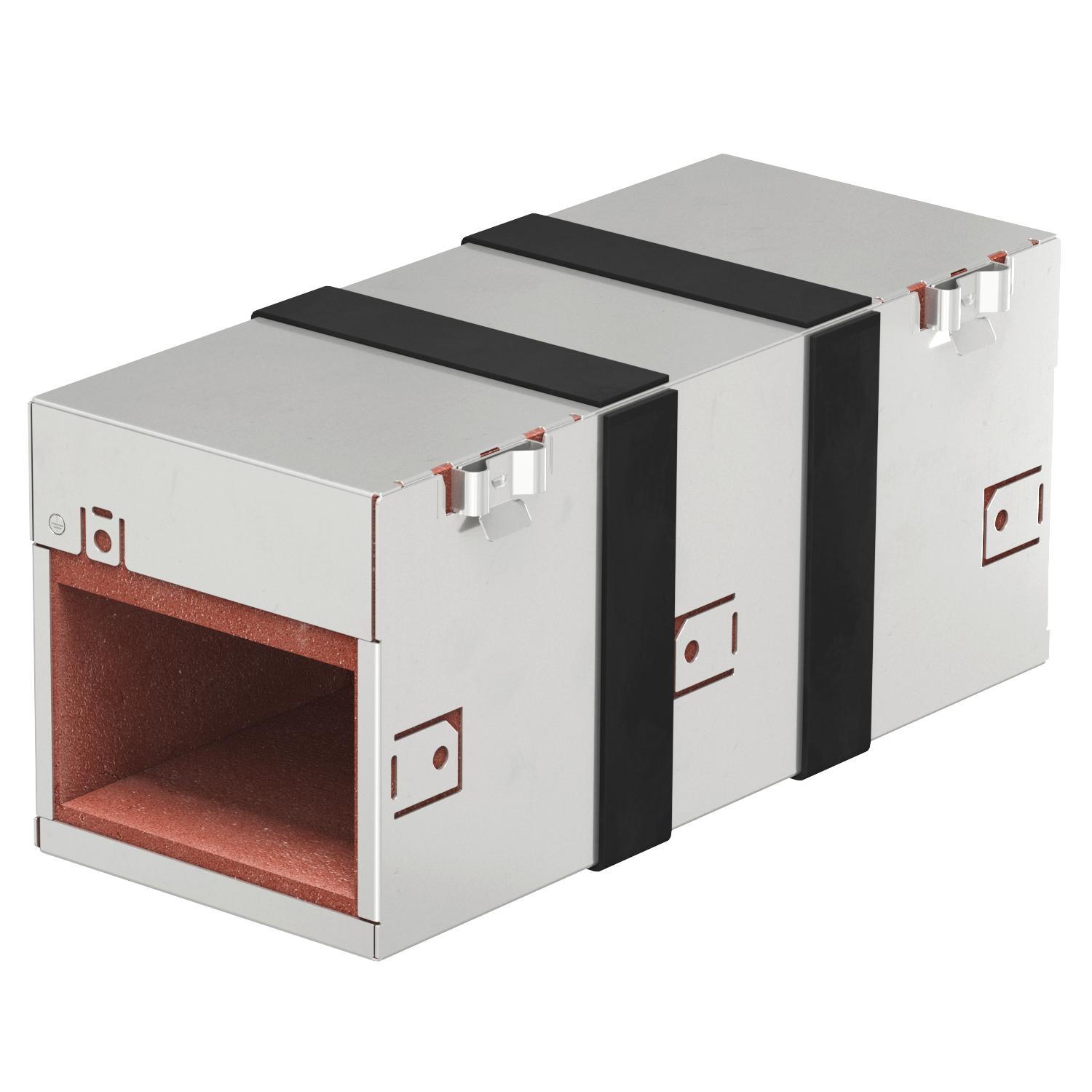

PYROPLUG® MagicBox, four-sided, interior height 60 mm 64 | 105

PYROPLUG® MagicBox, four-sided, interior height 60 mm

Št. art. 7204000 | EAN 4012196811984

Št. art. / Tip

Notranja višina	64 mm

Notranja širina

Opis izdelka

Opis izdelka

Fire protection box as an insulation system, made of two-part stainless steel housing with intumescent fire protection inlays. Can be used in walls and ceilings. Quick mounting through the releasable Magic connection. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Tehnični podatki

Tehnični podatki

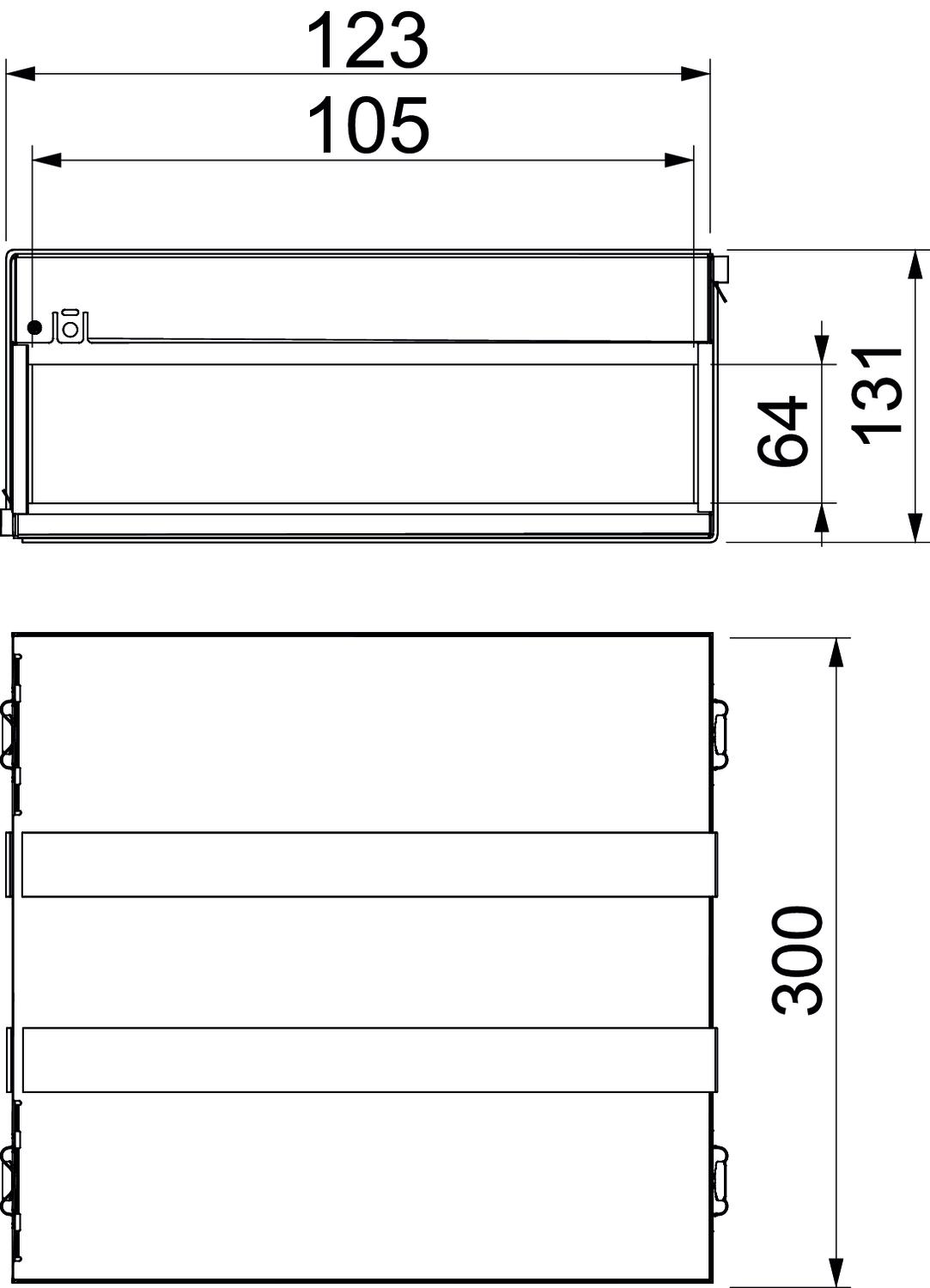

Dimenzija	300x123x130
Dolžina	300 mm
Izvedba protipožarne zaščite	Pregradna škatla
Material	Nerjaveče jeklo 1.4301
Mera d	105 mm
Mera D min.	123 mm
Notranja širina	105 mm

Notranja višina	64 mm
Oblika	kotno
Površina	surovo, naknadno obdelano
Širina	123 mm
Višina	131 mm
Zahtevan pribor	da

Vsi tipi

Vsi tipi

Tip	Notranja višina	Notranja širina	Št. art.	Količina	Min. prodajna enota
PMB 610-4 A2	64 mm	105 mm	7204000	Kos	1 Kos
PMB 620-4 A2	64 mm	205 mm	7204004	Kos	1 Kos
PMB 630-4 A2	64 mm	305 mm	7204008	Kos	1 Kos
PMB 640-4 A2	64 mm	405 mm	7204012	Kos	1 Kos
PMB 650-4 A2	64 mm	505 mm	7204016	Kos	1 Kos
PMB 660-4 A2	64 mm	605 mm	7204020	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	Kos	1 Kos

Montažni pribor

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Support construction for insulations, with bracket	SKA 05 VZ	7202436	Kos	1 Kos
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	Kos	1 Kos
