PYROPLUG® MagicBox, three-sided, interior height 110 mm

Št. art. 7204150 | EAN 4012196811908

115 mm
Opis izdelka

Opis izdelka

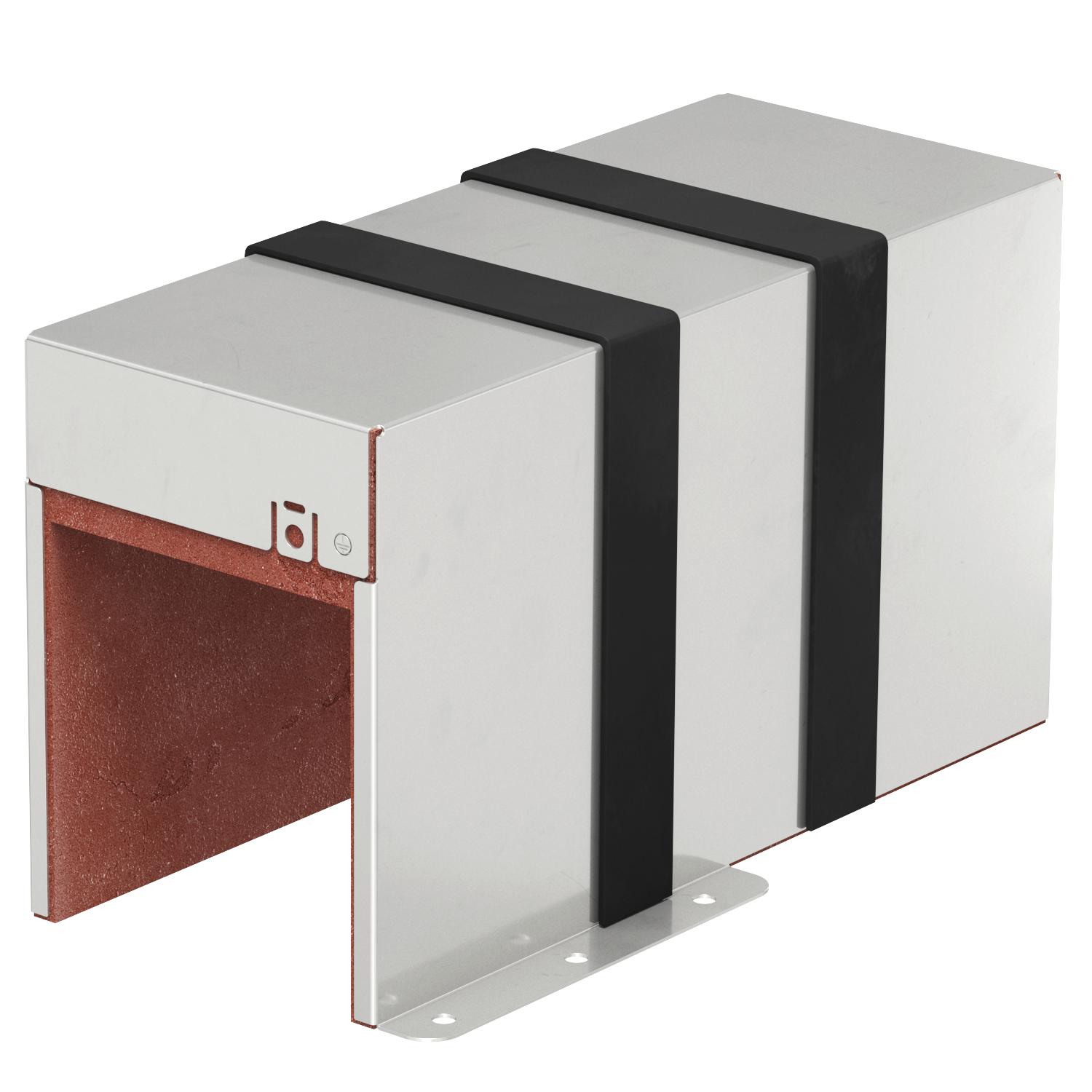

Fire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Tehnični podatki

Tehnični podatki

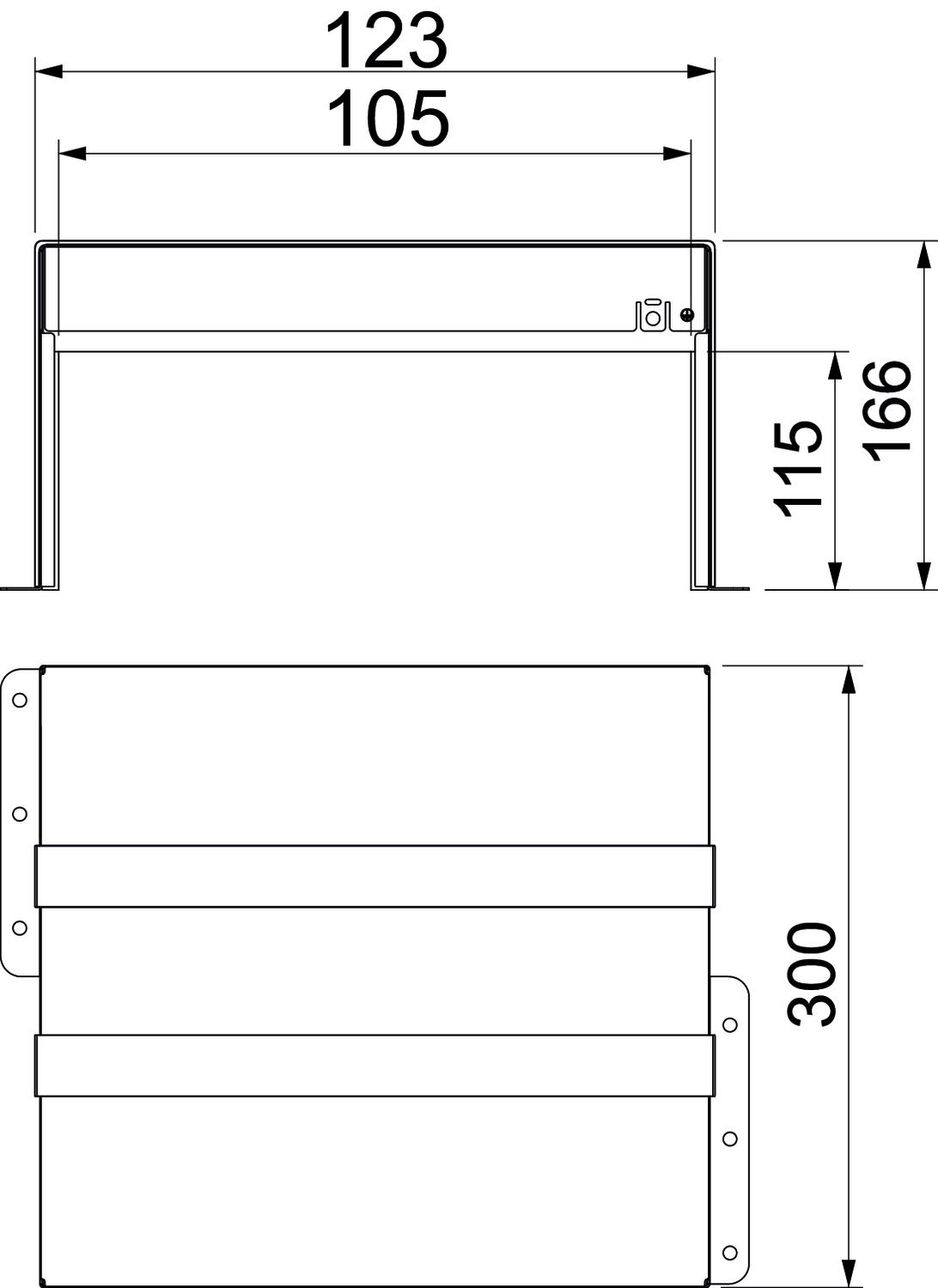

Dimenzija 300x123x166
Dolžina 300 mm
Izvedba protipožarne zaščite Pregradna škatla
Material Nerjaveče legirano jeklo 1.4113
Mera d 105 mm
Mera D min. 123 mm
Notranja širina 105 mm
Notranja višina 115 mm
Oblika kotno
Površina surovo, naknadno obdelano
Širina 123 mm
Višina 166 mm
Zahtevan pribor da
Vsi tipi

Vsi tipi

Tip Notranja višina Notranja širina Št. art. Količina Min. prodajna enota
PMB 110-3 A2 115 mm 105 mm 7204150
1 Kos
PMB 120-3 A2 115 mm 205 mm 7204154
1 Kos
PMB 130-3 A2 115 mm 305 mm 7204158
1 Kos
PMB 140-3 A2 115 mm 405 mm 7204162
1 Kos
PMB 150-3 A2 115 mm 505 mm 7204166
1 Kos
PMB 160-3 A2 115 mm 605 mm 7204170
1 Kos
Pribor

Sistemski dodatki

Proizvodi Tip Št. art. Količina Min. prodajna enota
2-component fire protection foam PYROSIT® NG 2-component fire protection foam PYROSIT® NG FBS-S 7203800
1 Kos

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Support construction for insulations, with bracket Support construction for insulations, with bracket SKA 05 VZ 7202436
1 Kos
Support construction for insulations, with pendulum suspension Support construction for insulations, with pendulum suspension SKP 05 VZ 7202446
1 Kos
