PYROPLUG® MagicBox, three-sided, interior height 110 mm 115 | 205

PYROPLUG® MagicBox, three-sided, interior height 110 mm

Št. art. 7204154 | EAN 4012196811915

Št. art. / Tip

Notranja višina	115 mm

Notranja širina

Opis izdelka

Opis izdelka

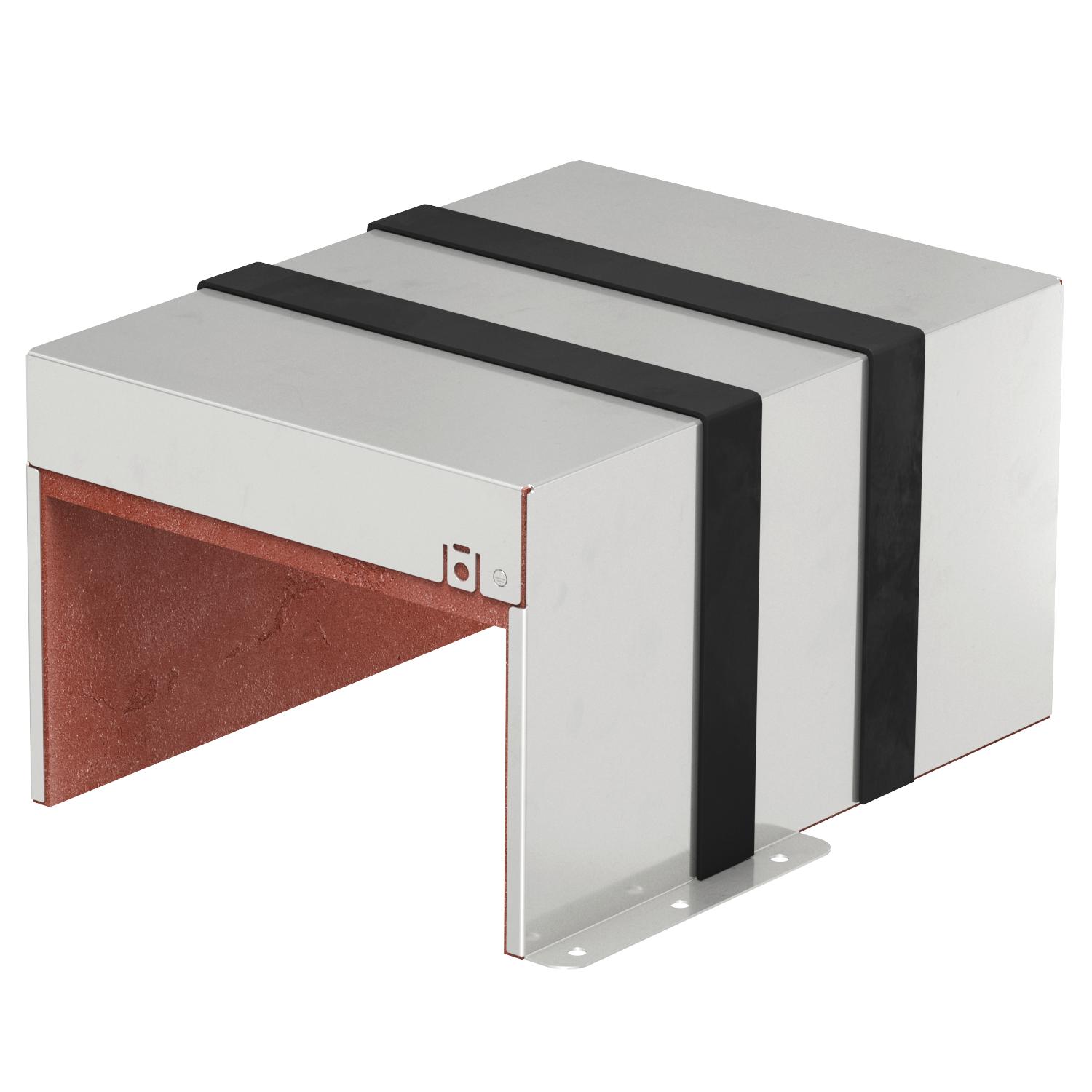

Fire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Tehnični podatki

Tehnični podatki

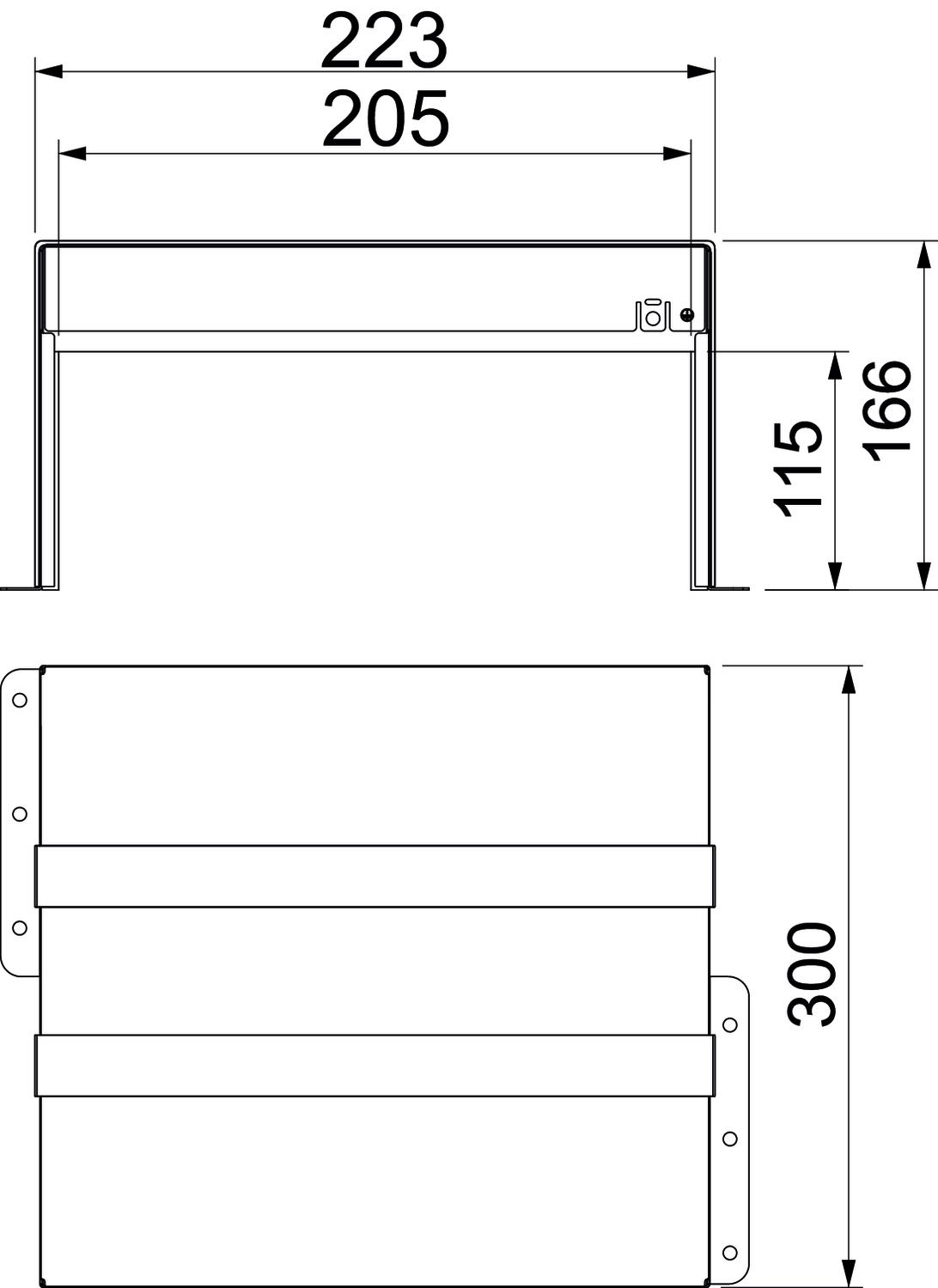

Dimenzija	300x223x166
Dolžina	300 mm
Izvedba protipožarne zaščite	Pregradna škatla
Material	Nerjaveče legirano jeklo 1.4113
Mera d	205 mm
Mera D min.	223 mm
Notranja širina	205 mm

Notranja višina	115 mm
Oblika	kotno
Površina	surovo, naknadno obdelano
Širina	223 mm
Višina	166 mm
Zahtevan pribor	da

Vsi tipi

Vsi tipi

Tip	Notranja višina	Notranja širina	Št. art.	Količina	Min. prodajna enota
PMB 110-3 A2	115 mm	105 mm	7204150	Kos	1 Kos
PMB 120-3 A2	115 mm	205 mm	7204154	Kos	1 Kos
PMB 130-3 A2	115 mm	305 mm	7204158	Kos	1 Kos
PMB 140-3 A2	115 mm	405 mm	7204162	Kos	1 Kos
PMB 150-3 A2	115 mm	505 mm	7204166	Kos	1 Kos
PMB 160-3 A2	115 mm	605 mm	7204170	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	Kos	1 Kos

Montažni pribor

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Support construction for insulations, with bracket	SKA 05 VZ	7202436	Kos	1 Kos
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	Kos	1 Kos
