PYROPLUG® MagicBox, three-sided, interior height 60 mm 65 | 605

PYROPLUG® MagicBox, three-sided, interior height 60 mm

Št. art. 7204050 | EAN 4012196812103

Št. art. / Tip

Notranja višina	65 mm

Notranja širina

Opis izdelka

Opis izdelka

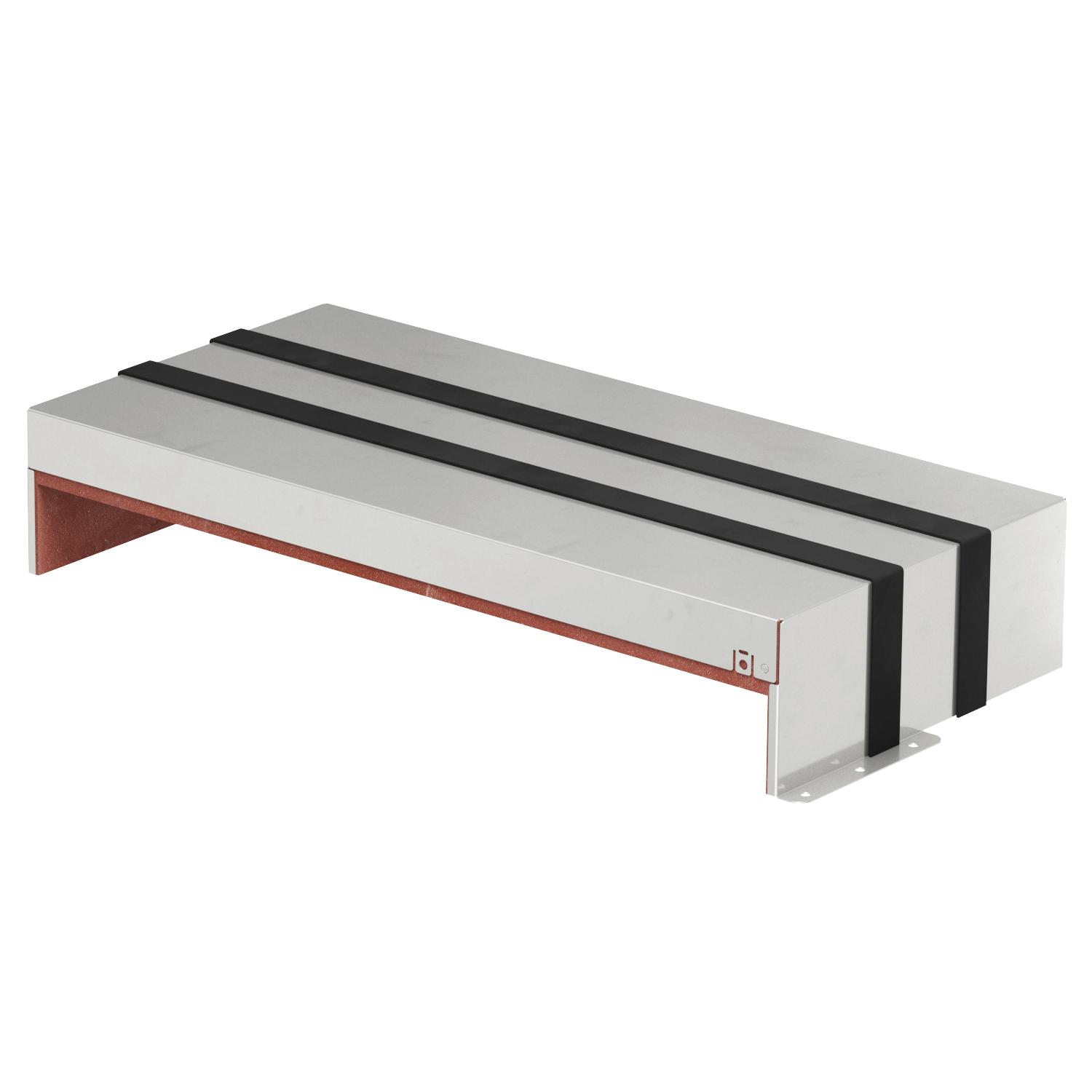

Fire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Tehnični podatki

Tehnični podatki

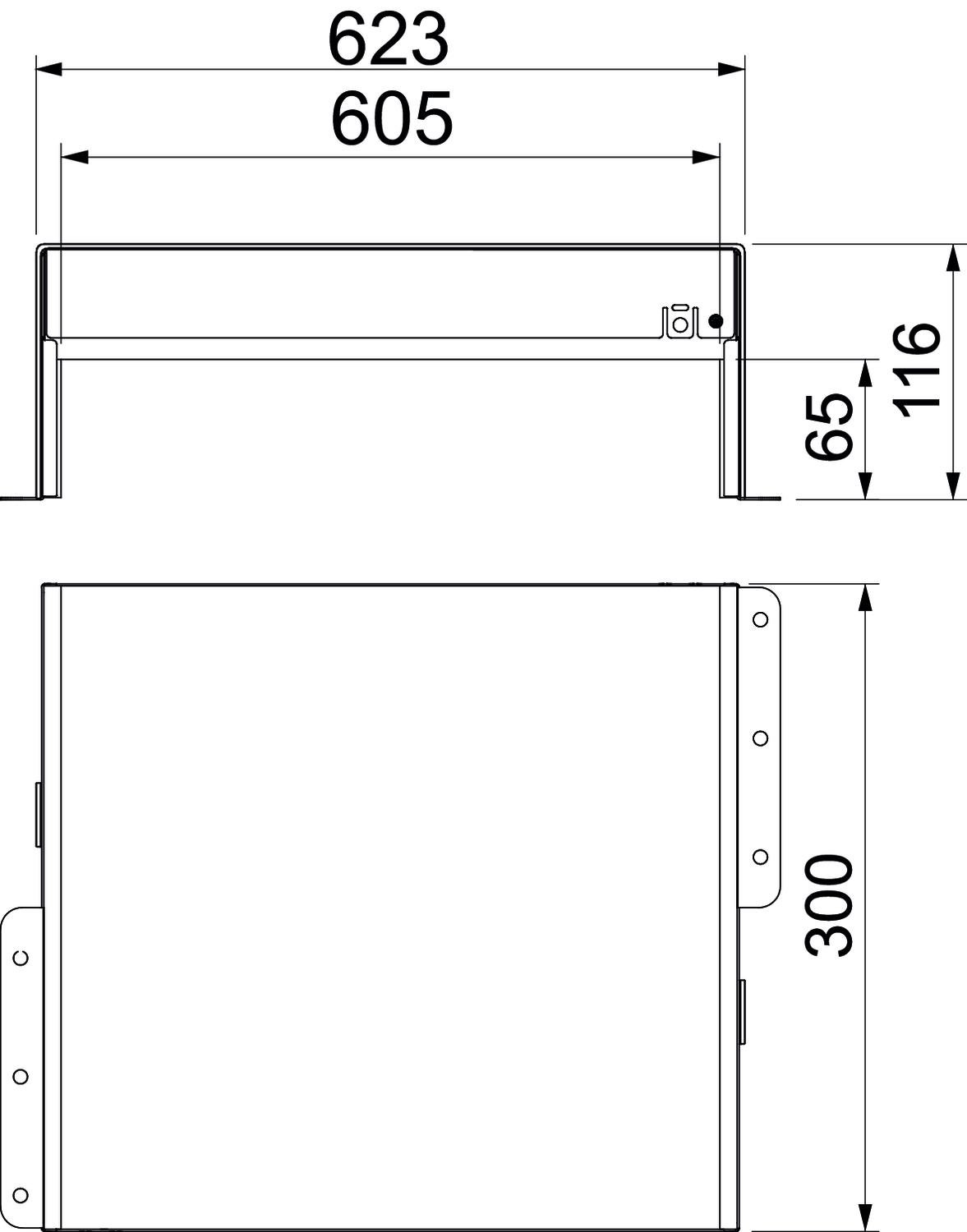

Dimenzija	300x623x116
Dolžina	300 mm
Izvedba protipožarne zaščite	Pregradna škatla
Material	Nerjaveče jeklo 1.4301
Mera d	605 mm
Mera D min.	623 mm
Notranja širina	605 mm

Notranja višina	65 mm
Oblika	kotno
Površina	surovo, naknadno obdelano
Širina	623 mm
Višina	116 mm
Zahtevan pribor	da

Vsi tipi

Vsi tipi

Tip	Notranja višina	Notranja širina	Št. art.	Količina	Min. prodajna enota
PMB 610-3 A2	65 mm	105 mm	7204030	Kos	1 Kos
PMB 620-3 A2	65 mm	205 mm	7204034	Kos	1 Kos
PMB 630-3 A2	65 mm	305 mm	7204038	Kos	1 Kos
PMB 640-3 A2	65 mm	405 mm	7204042	Kos	1 Kos
PMB 650-3 A2	65 mm	505 mm	7204046	Kos	1 Kos
PMB 660-3 A2	65 mm	605 mm	7204050	Kos	1 Kos

Pribor

Sistemski dodatki

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	Kos	1 Kos

Montažni pribor

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Support construction for insulations, with bracket	SKA 05 VZ	7202436	Kos	1 Kos
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	Kos	1 Kos
