Quick pipe T piece, light grey 58 | M16
morepic-1 morepic-2

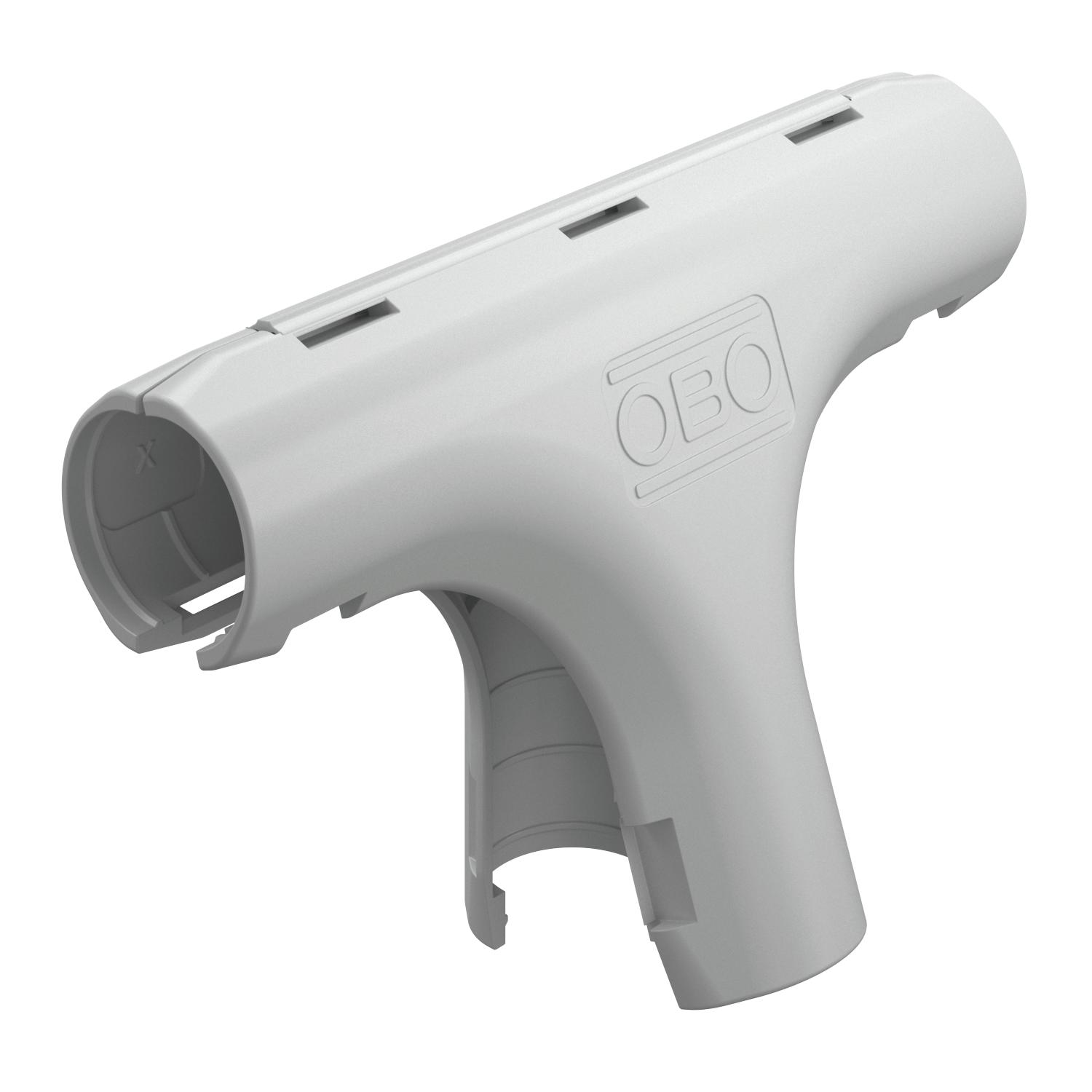

Quick pipe T piece, light grey

Št. art. 2153839 | EAN 4012196868384

Opis izdelka
Opis izdelka
Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Tehnični podatki

Tehnični podatki

Barva svetlo siva RAL 7035
Brez halogenov da
Dimenzija M16
Izvedba Vtič
Maks. temperaturno območje uporabe 60 °C
Material polipropilen

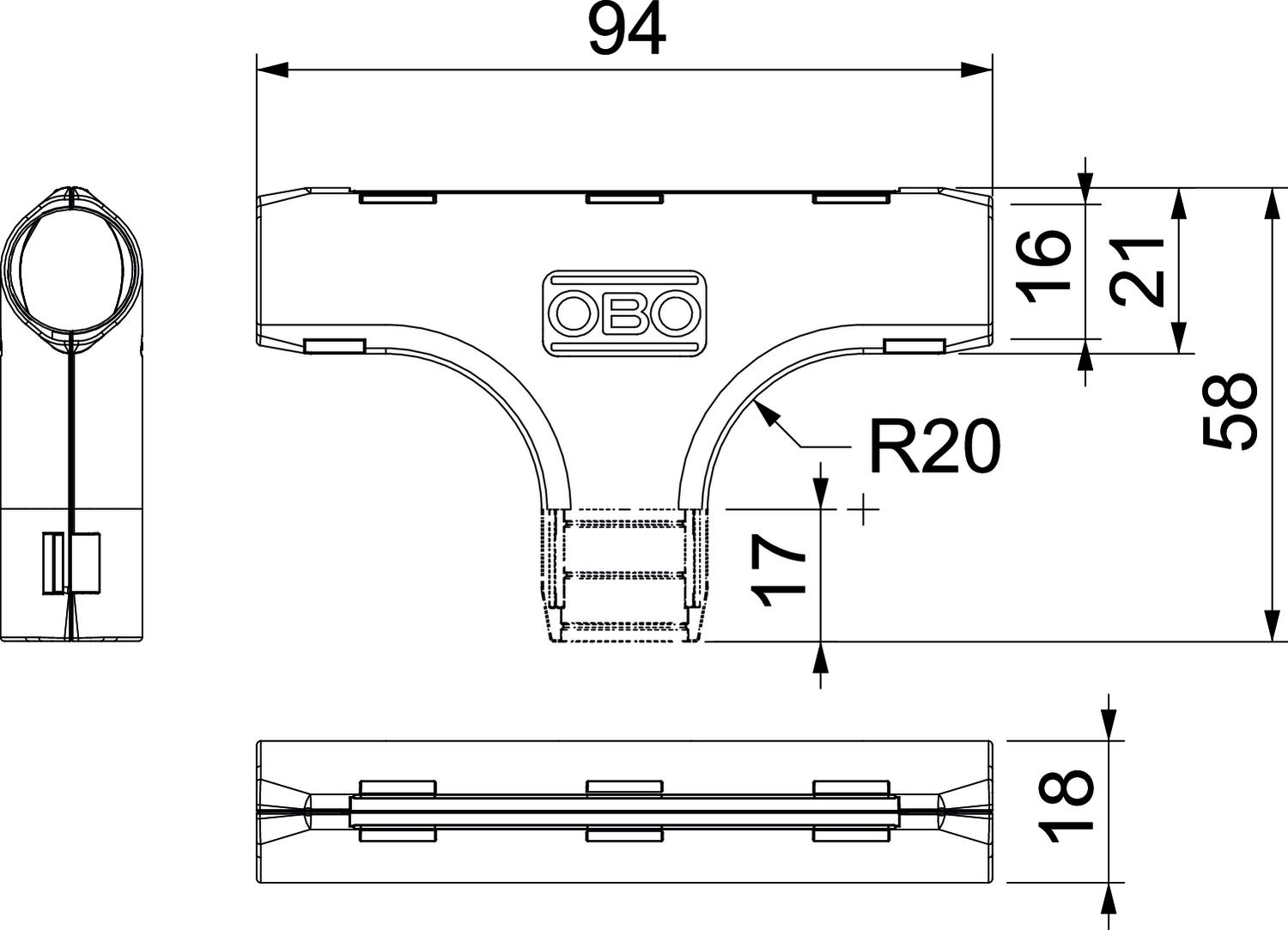

Mera B 21 mm
Mera B2 94 mm
Mera d 16 mm
Mera L 58 mm
Mera L1 17 mm
Mera R 20 mm
Oblika T-element
Polirana površina ne
Ščetkana površina ne
Velikost M16
Z obojko ne
Vsi tipi

Vsi tipi

Tip Mera L Velikost Št. art. Količina Min. prodajna enota
3000 TMS M16 LGR 58 mm M16 2153839
10 Kos
3000 TMS M20 LGR 69 mm M20 2153841
5 Kos
3000 TMS M25 LGR 77 mm M25 2153843
5 Kos
3000 TMS M32 LGR 87 mm M32 2153845
5 Kos
Prenosi

Prenesi

3000 TMS M16 LGR / 2153839
Prenesi
