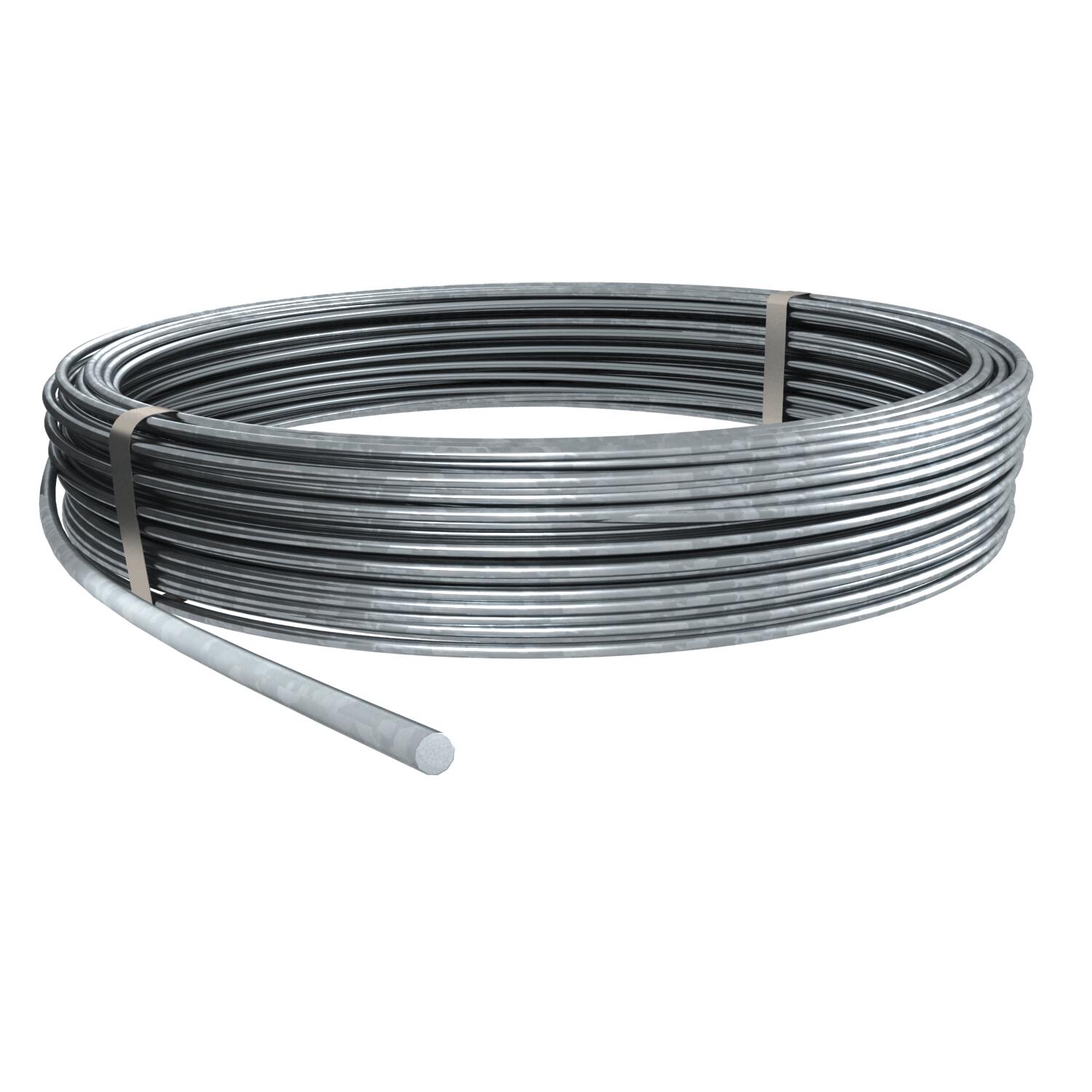

Round conductor, galvanised steel

Št. art. 5021081 | EAN 4012195381556

Jeklo
Opis izdelka

Opis izdelka

• možnost uporabe kot odvod po standardu DIN EN 62561-2 (VDE 0185-561-2)
• ustreza zahtevam standarda VDE 0185-305 (IEC 62305)
• RD 10 uporaben tudi pod zemljo
• cinkov nanos: ≥ 350 g/m² (povprečje pribl. 50 µm)
  • Lightning current-tested
Tehnični podatki

Tehnični podatki

Dimenzija 8mm
Lastnosti materiala drugo
Length tolerance ± 5 %
Material Jeklo
Material plašča brez

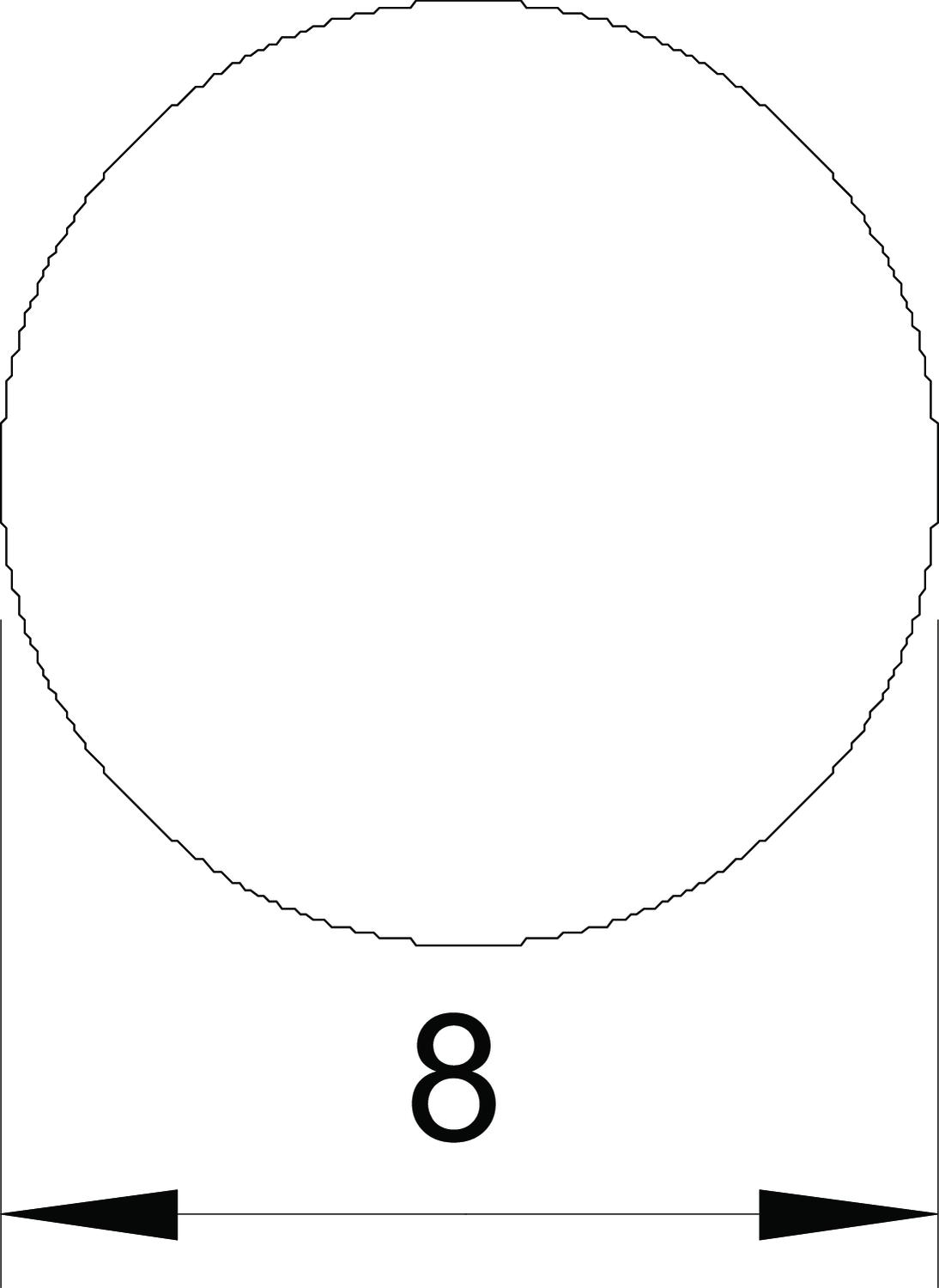

Mera D 8 mm
Običajni obroč (pribl. kg) 50
Običajni obroč (pribl. m) 125
Površina vroče pocinkano
Premer 8 mm
Presek 50 mm²
Proti visoki napetosti odporna, izolirana izvedba ne
Število posameznih žic 1
Vsi tipi

Vsi tipi

Tip Premer Običajni obroč (pribl. kg) Običajni obroč (pribl. m) Presek Material Št. art. Količina Min. prodajna enota
RD 8-FT 50 8 mm 20 50 50 mm² Jeklo 5021050
50 m
RD 8-FT 8 mm 50 125 50 mm² Jeklo 5021081
125 m
RD 10 10 mm 50 80 78 mm² Jeklo 5021103
80 m
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota

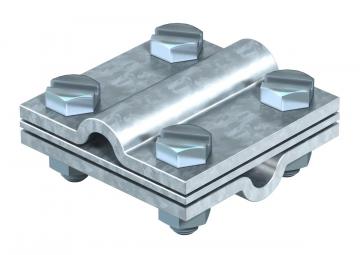

Cross-connector with intermediate plate for Rd 8−10 mm FT Cross-connector with intermediate plate for Rd 8−10 mm FT 252 8-10 FT 5312310
25 Kos

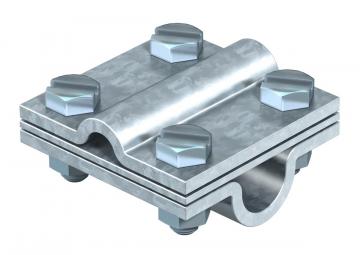

Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT 252 8-10X16 FT 5312345
25 Kos

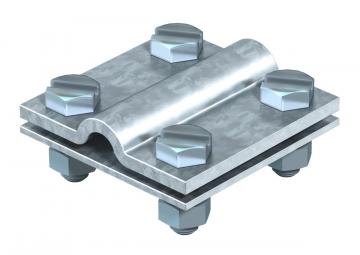

Cross-connector for round and flat conductors FT Cross-connector for round and flat conductors FT 252 8-10XFL30 FT 5312655
25 Kos

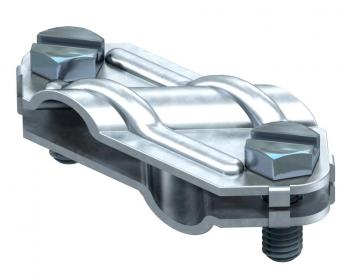

Cross-connector for flat conductors and round conductors FT Cross-connector for flat conductors and round conductors FT 250 5312906
25 Kos

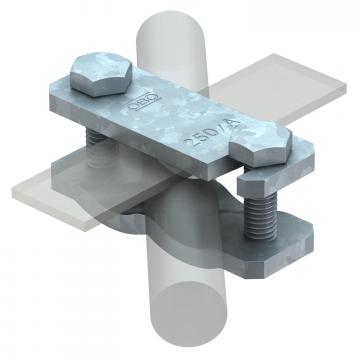

Diagonal clamp for flat conductors and round conductors FT Diagonal clamp for flat conductors and round conductors FT 250 A-FT 5313015
25 Kos
