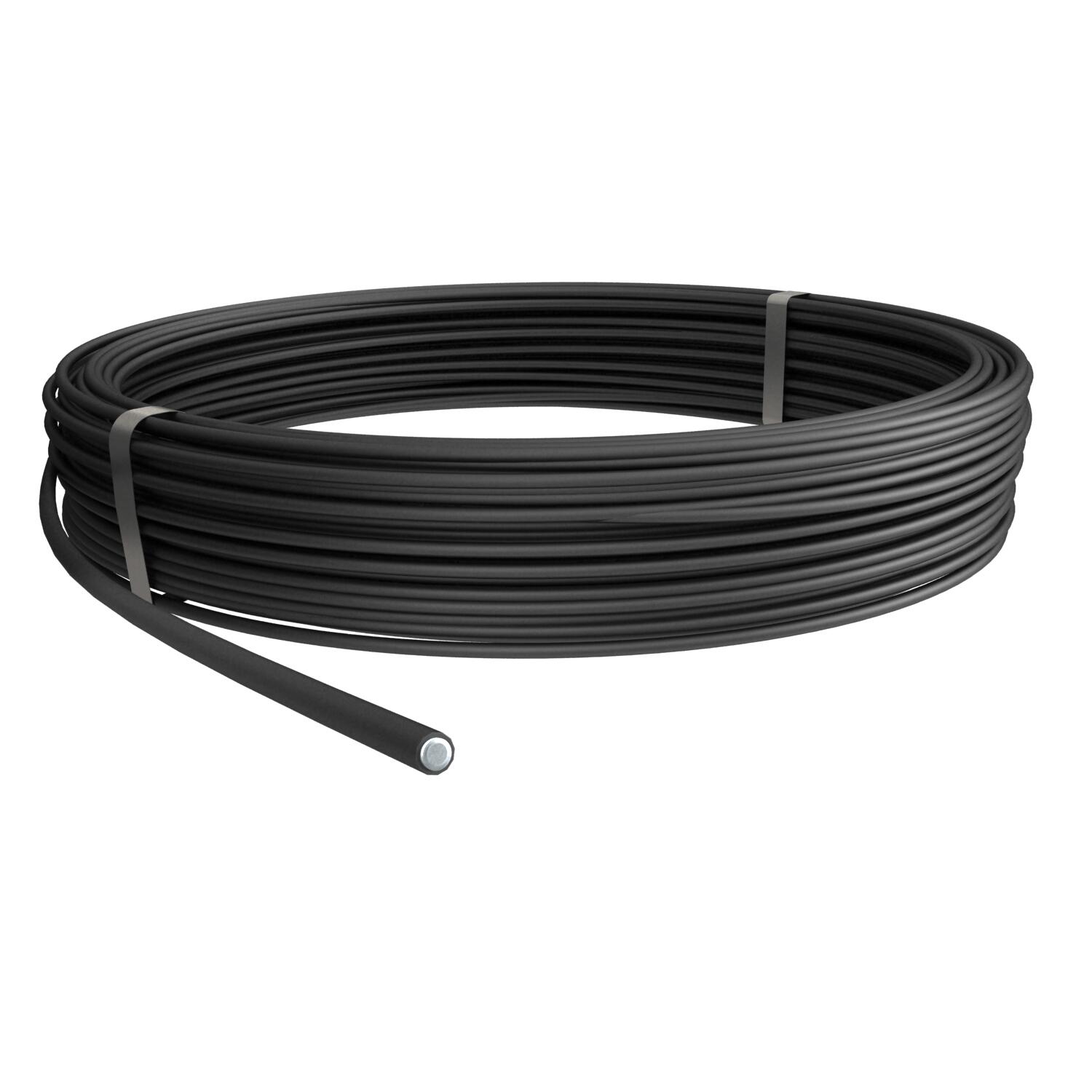

Round conductor, galvanised steel with PVC jacketing

Št. art. 5021162 | EAN 4012195381730

5021162 / RD 10-PVC
10 mm
50
75
78 mm²
Jeklo
Opis izdelka

Opis izdelka

RD ...: Okroglo ozemljilo

• ustreza zahtevam po DIN V VDE V 0185-3, tabeli 7 in 8
  • Lightning current-tested
Tehnični podatki

Tehnični podatki

Barva črna
Dimenzija 10mm
Lastnosti materiala drugo
Length tolerance ± 5 %
Material Jeklo
Material plašča PVC

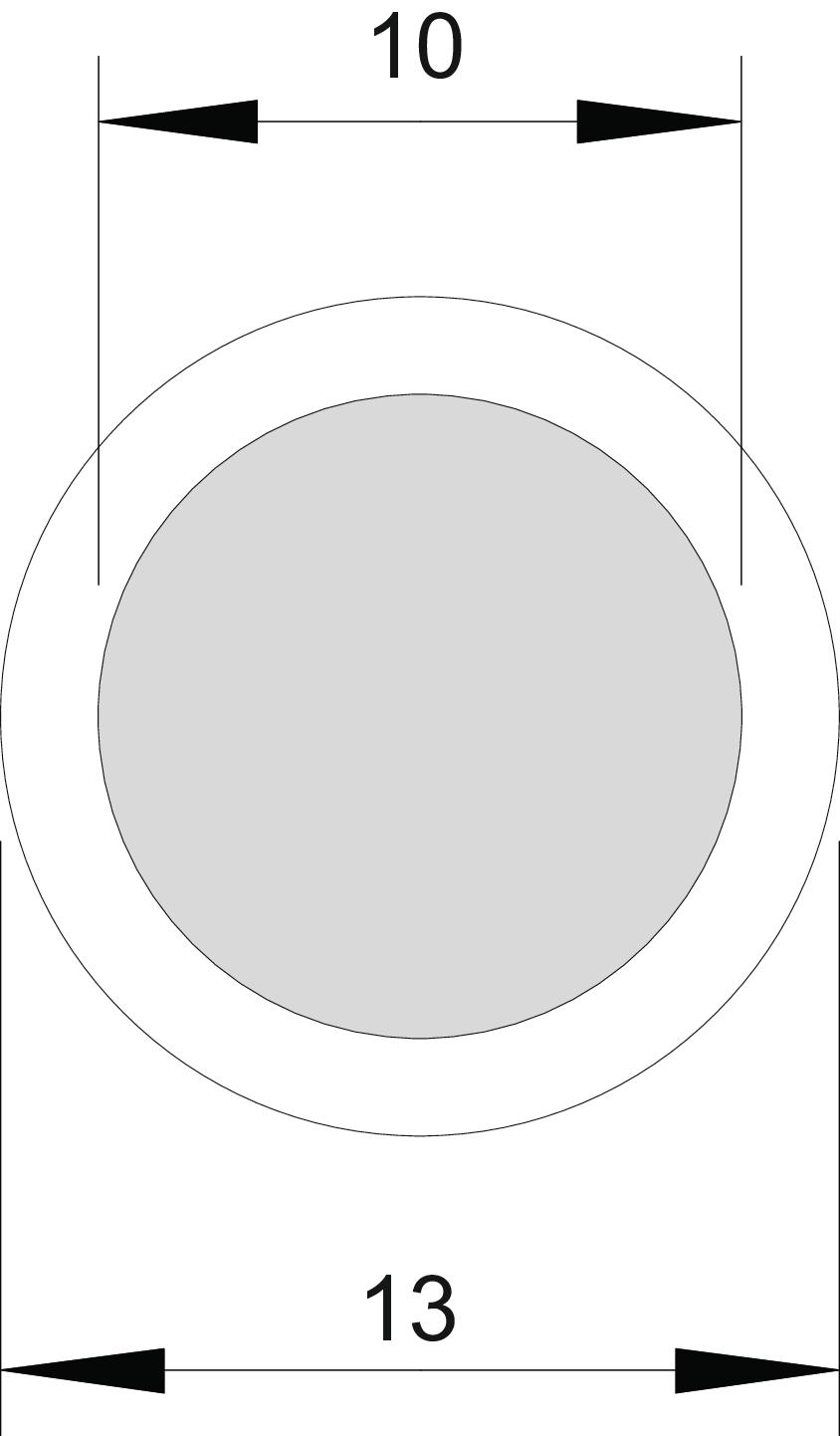

Mera D 13 mm
Mera d 10 mm
Običajni obroč (pribl. kg) 50
Običajni obroč (pribl. m) 75
Površina vroče pocinkano
Premer 10 mm
Presek 78 mm²
Proti visoki napetosti odporna, izolirana izvedba ne
Število posameznih žic 1
Vsi tipi

Vsi tipi

Tip Premer Običajni obroč (pribl. kg) Običajni obroč (pribl. m) Presek Material Št. art. Količina Min. prodajna enota
RD 10-PVC 10 mm 50 75 78 mm² Jeklo 5021162
75 m
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Cross-connector with intermediate plate for Rd 8−10 mm FT Cross-connector with intermediate plate for Rd 8−10 mm FT 252 8-10 FT 5312310
25 Kos
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT 252 8-10X16 FT 5312345
25 Kos
Cross-connector for round and flat conductors FT Cross-connector for round and flat conductors FT 252 8-10XFL30 FT 5312655
25 Kos
Cross-connector for flat conductors and round conductors FT Cross-connector for flat conductors and round conductors FT 250 5312906
25 Kos
Diagonal clamp for flat conductors and round conductors FT Diagonal clamp for flat conductors and round conductors FT 250 A-FT 5313015
25 Kos
