Separating bracket for wall mounting 25 | 76 | 35 | 20

Separating bracket for wall mounting

Št. art. 7215480 | EAN 4012196835386

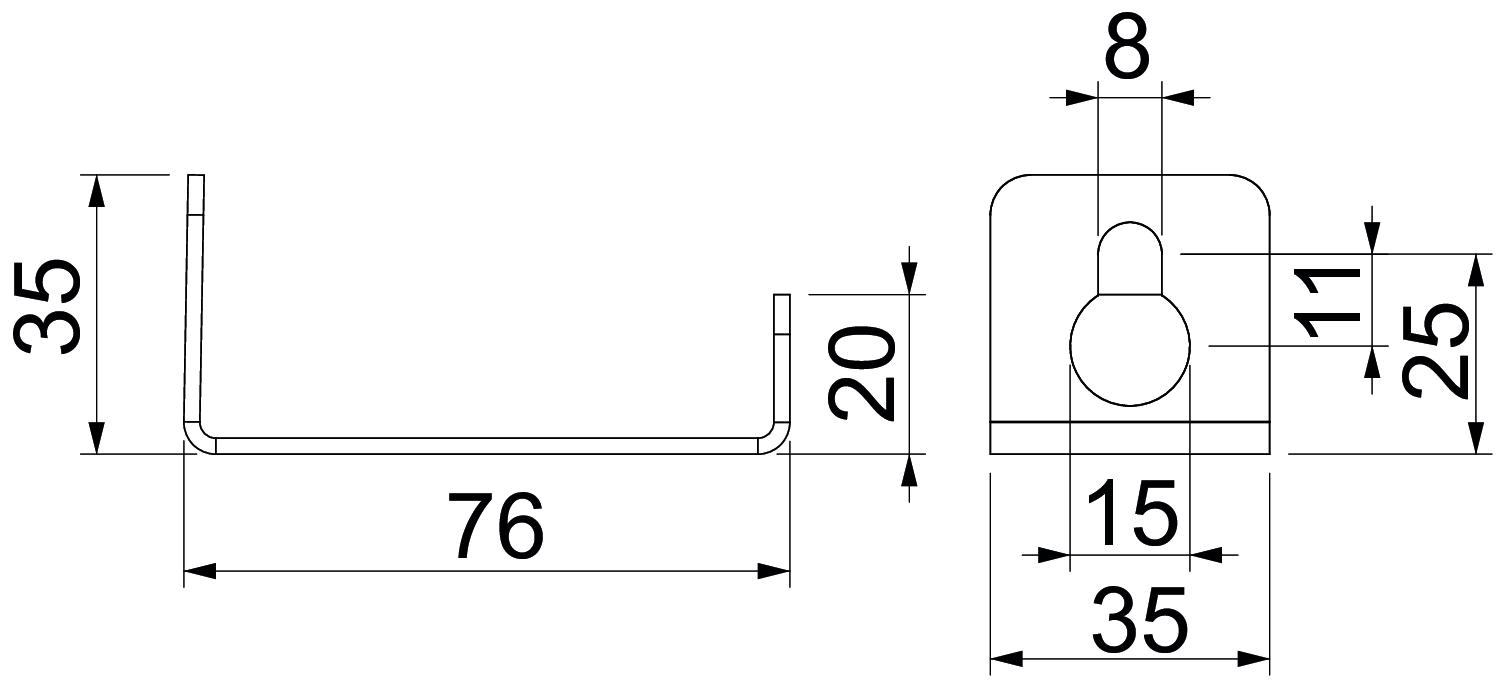

Št. art. / Tip

Mera A

Mera B

Mera H

Mera H

Opis izdelka

Opis izdelka

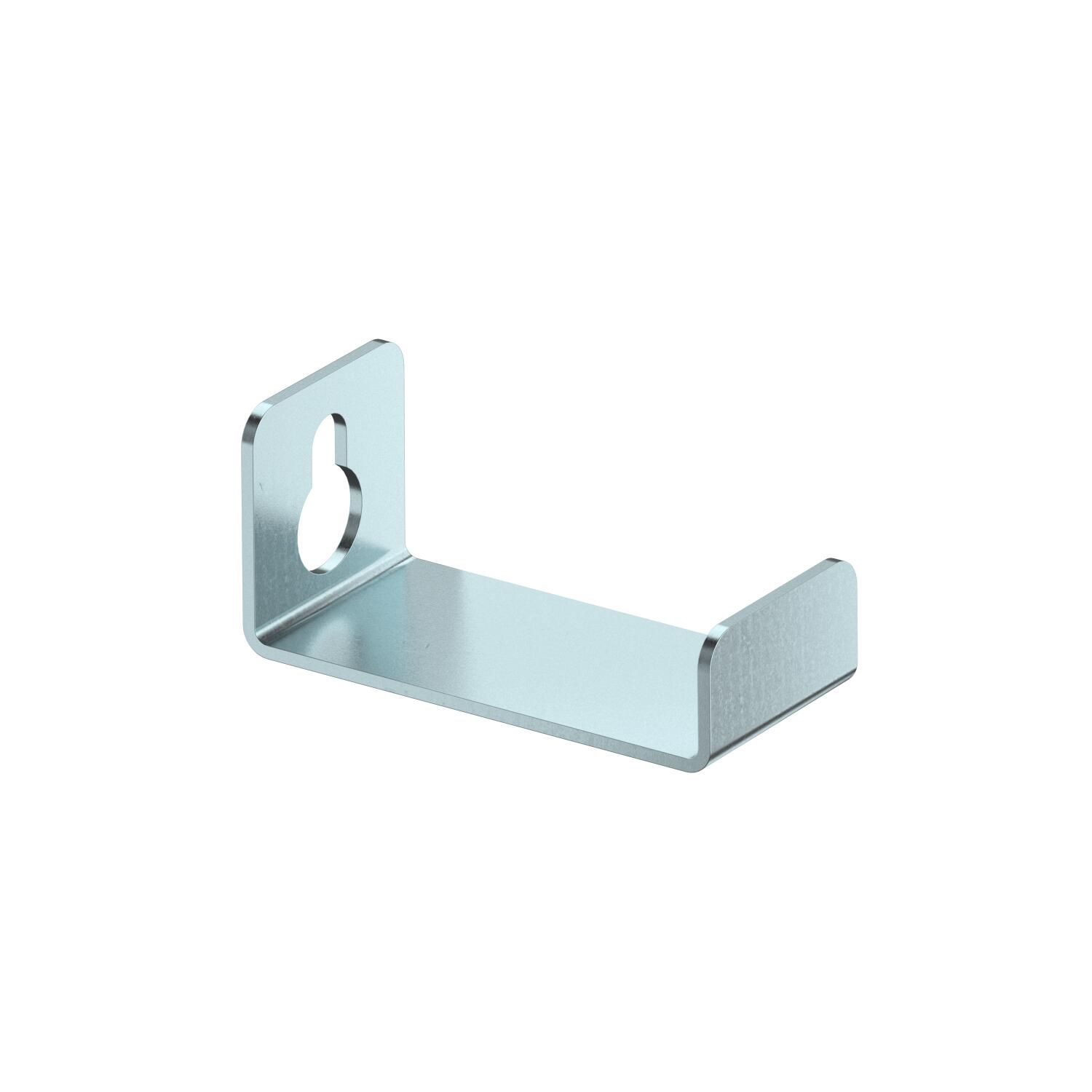

Separating bracket as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the wall, type PLCD D060810 and type PLCD D090810. Mounting of the bracket directly on the fastening anchors of the fire protection duct.

Tehnični podatki

Tehnični podatki

Dimenzija	50x76x35
Material	Jeklo
Mera A	25 mm
Mera B	76 mm
Mera H	35 mm

Mera H	20 mm
Način pritrditve	vijačno
Površina	neprekinjeno cinkano v ognju
Širina kanala znotraj	100 mm
Višina kanal znotraj	80 mm

Vsi tipi

Vsi tipi

Tip	Mera A	Mera B	Mera H	Mera H	Št. art.	Količina	Min. prodajna enota
PLCD-SB0810	25 mm	76 mm	35 mm	20 mm	7215480	Kos	25 Kos
PLCD-SB1220	50 mm	116 mm	60 mm	65 mm	7215484	Kos	25 Kos
PLCD-SC0810	25 mm	50 mm	35 mm	76 mm	7215490	Kos	25 Kos
PLCD-SC1220	50 mm	100 mm	60 mm	116 mm	7215494	Kos	25 Kos
