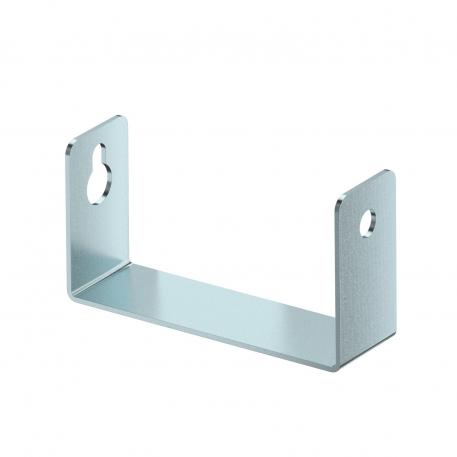

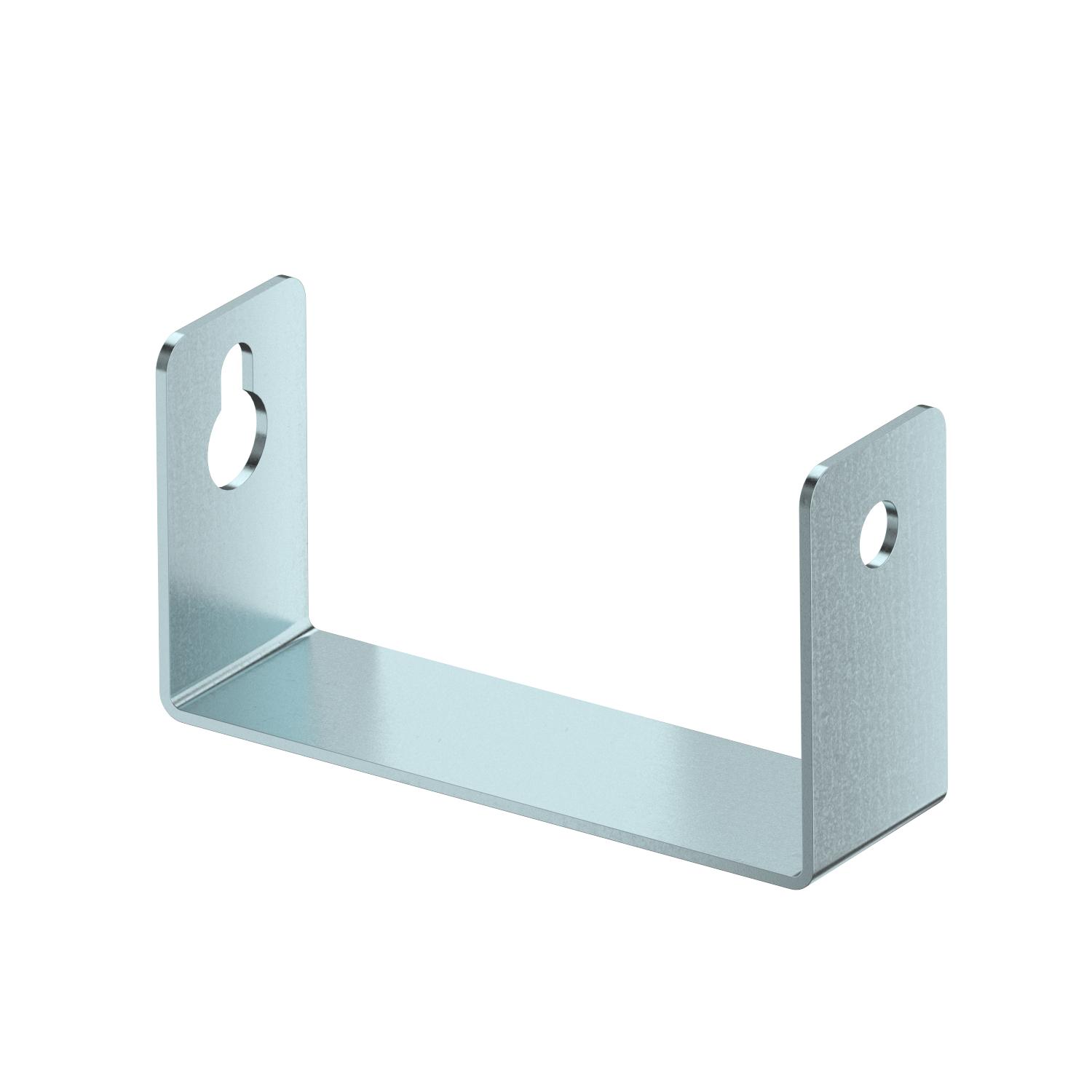

Separating bracket for wall mounting 50 | 116 | 60 | 65

Separating bracket for wall mounting

Št. art. 7215484 | EAN 4012196835416

Št. art. / Tip

Mera A

Mera B

Mera H

Mera H

Opis izdelka

Opis izdelka

Separating bracket as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the wall, type PLCD D061220 and type PLCD D091220. Mounting of the bracket directly on the fastening anchors of the fire protection duct.

Tehnični podatki

Tehnični podatki

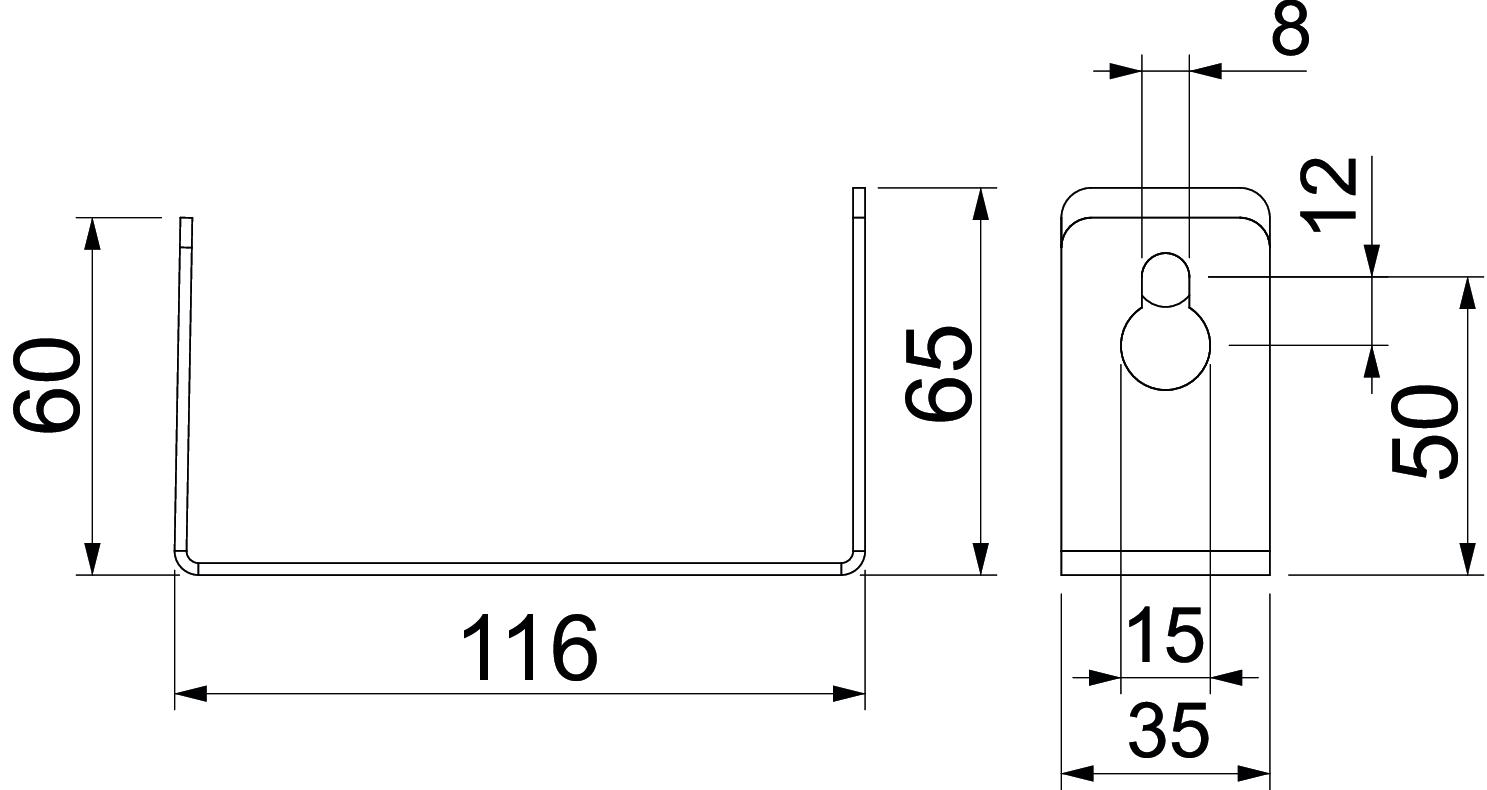

Dimenzija	100x116x35
Material	Jeklo
Mera A	50 mm
Mera B	116 mm
Mera H	65 mm

Mera H	60 mm
Način pritrditve	vijačno
Površina	neprekinjeno cinkano v ognju
Širina kanala znotraj	200 mm
Višina kanal znotraj	100 mm

Vsi tipi

Vsi tipi

Tip	Mera A	Mera B	Mera H	Mera H	Št. art.	Količina	Min. prodajna enota
PLCD-SB0810	25 mm	76 mm	35 mm	20 mm	7215480	Kos	25 Kos
PLCD-SB1220	50 mm	116 mm	60 mm	65 mm	7215484	Kos	25 Kos
PLCD-SC0810	25 mm	50 mm	35 mm	76 mm	7215490	Kos	25 Kos
PLCD-SC1220	50 mm	100 mm	60 mm	116 mm	7215494	Kos	25 Kos
