Service pole, sheet steel, with sheet steel cover 2505 | Teleskop | Jeklo | bela; RAL 9010 |

Service pole, sheet steel, with sheet steel cover

Št. art. 6286530 | EAN 4012195809135

Št. art. / Tip	6286530 / ISS70110STSRW

Dolžina	2505 mm

Način pritrditve	Teleskop

Material	Jeklo

Barva	bela; RAL 9010

Opis izdelka

Opis izdelka

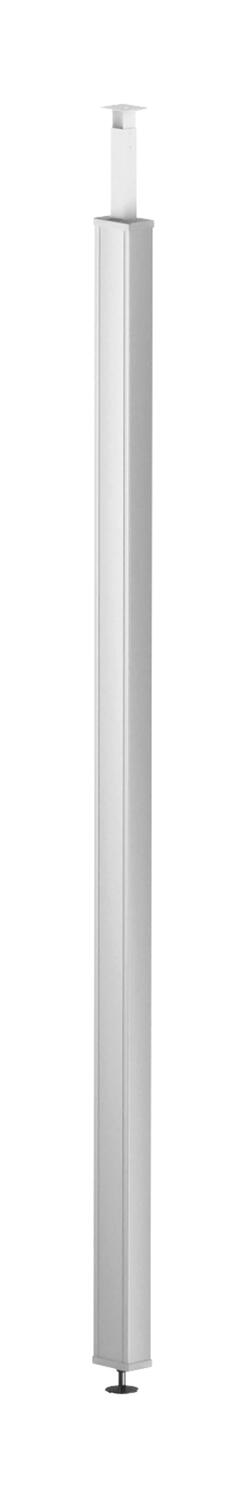

Sheet steel service pole with a 76.5 mm system opening.

Set consisting of:

1 single-compartment pole with clamping fastening

Total length 2,625–3,665 mm

1 ceiling fastening with telescopic profile

1 sheet steel cover

Length: 2,500 mm

A 2 m PVC separating retainer and 2 cover clips are contained in the scope of delivery.

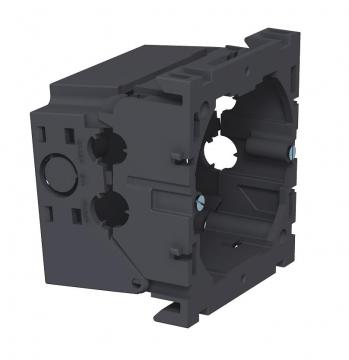

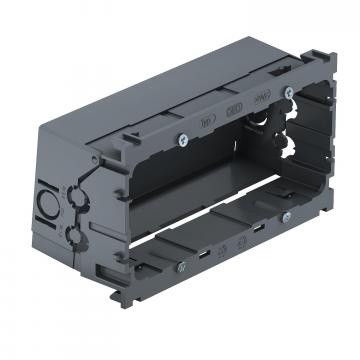

The service pole is suitable for accepting accessory mounting boxes of the

series 71GD...

The service pole is pre-mounted and ready for use immediately. The following accessories can also be used, depending on the mounting situation.

Tehnični podatki

Tehnični podatki

Barva	bela; RAL 9010
Brez halogenov	da

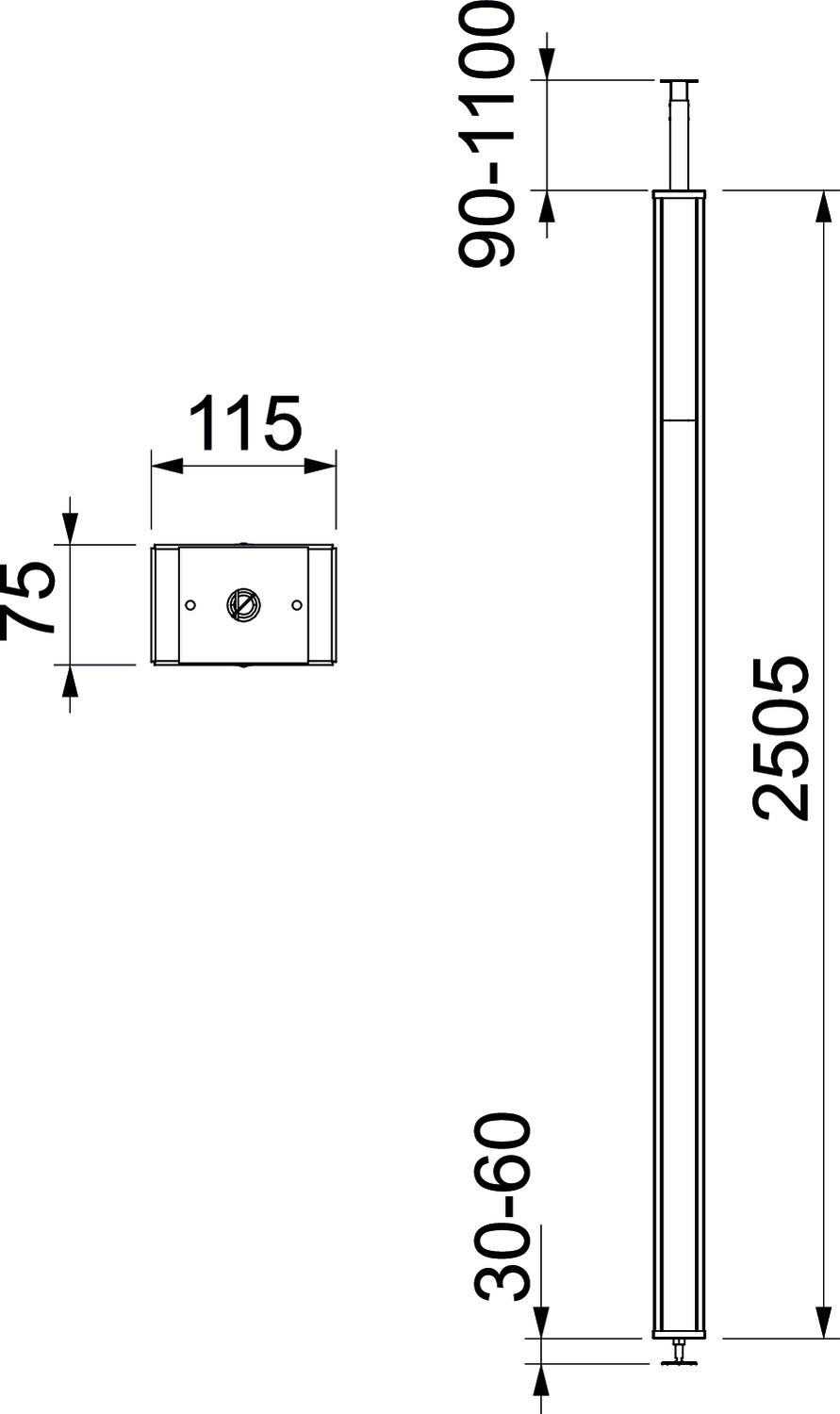

Dimenzija	2505x115x75
Dolžina	2505 mm
Izvedba	enostransko
Kabelski skoznjik	zgoraj
Maks. izenačitev višine	1100 mm
Maks. višina stebra	3700 mm
Material	Jeklo
Min. izenačitev višine	90 mm
Min. višina stebra	2600 mm
Način pritrditve	Teleskop

Nastavljiv	da
Neprekinjeni profil	da
Oblika stebra	pravokotno
Širina	115 mm
Širina pokrova	76,5 mm
Spremenljiva lokacija	ne
Število potegov	1 St.
Število vstavljivih pokrovov	1
strop	da
Talna montaža	ne
Višina	75 mm
Vnaprej ožičeno	ne
