Service pole, type ISSRM45F
Št. art. 6290097 | EAN 4012195459101
- Opis izdelka
-

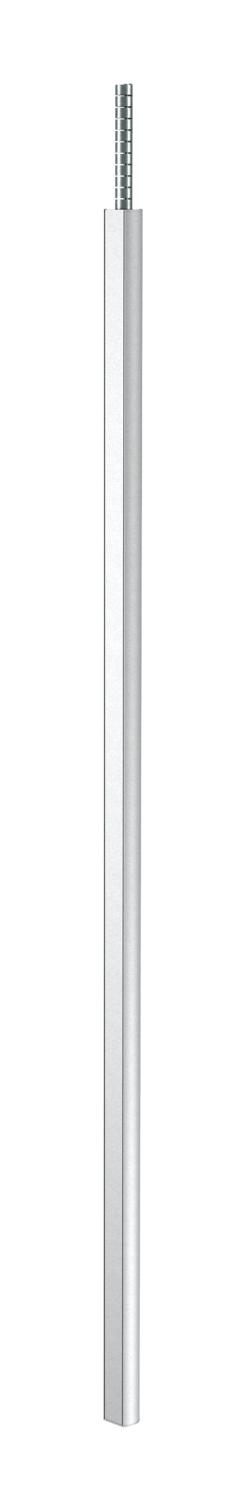

Opis izdelkaISS aluminium service pole with a flexible hose to the ceiling and a 45 mm system opening.
Set consisting of:
1 one-compartment pole with flexible hose to ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm
1 aluminium cover
Length: 2,300 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
-
- Tehnični podatki
-
Tehnični podatki

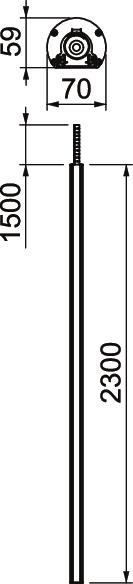

Barva srebro Brez halogenov da Dimenzija 2300x70x59 Dolžina 2300 mm Izvedba enostransko Kabelski skoznjik zgoraj Maks. izenačitev višine 1500 mm Maks. višina stebra 3800 mm Material aluminij Min. višina stebra 2300 mm Način pritrditve Podstavek Nastavljiv da Neprekinjeni profil da Oblika stebra okroglo Površina eloksirano Širina 70 mm Širina pokrova 45 mm Spremenljiva lokacija da Število potegov 1 St. Število vstavljivih pokrovov 1 strop da Talna montaža da Višina 59 mm Vnaprej ožičeno ne - Vsi tipi
-
Montažni pribor
Proizvodi Tip Št. art. Količina Min. prodajna enota
Pregrada za kanale WDK, višina kanala 40 mm
2371 40 6023096 2 m - Prenosi
-
Podatkovni list ISSRM45FEL / 6290097 , 0.23MB , pdfEU-Izjava o skladnosti ISSRM45FEL / 6290097 , 0.13MB , pdfZK Izjava o skladnosti ISSRM45FEL / 6290097 , 0.14MB , pdfNavodila za montažo 安装说明，ISSRM45F , 0.29MB , pdfZa ta proizvod informativna besedila niso na voljo
