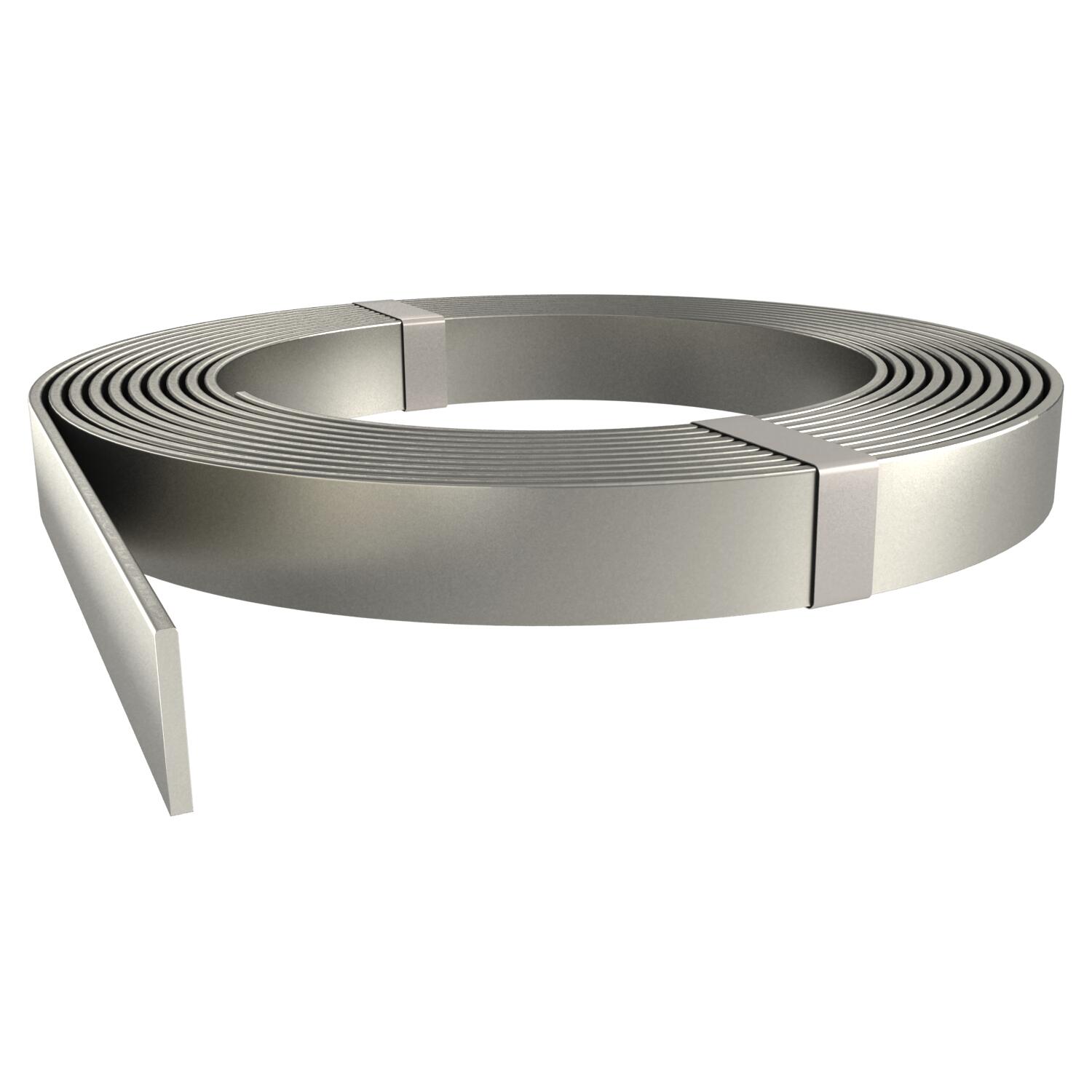

Stainless steel flat conductor

Št. art. 5018501 | EAN 4012195800415

Št. art. / Tip

Širina	30 mm

Višina	3,5 mm

Opis izdelka

Opis izdelka

• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding

Tehnični podatki

Tehnični podatki

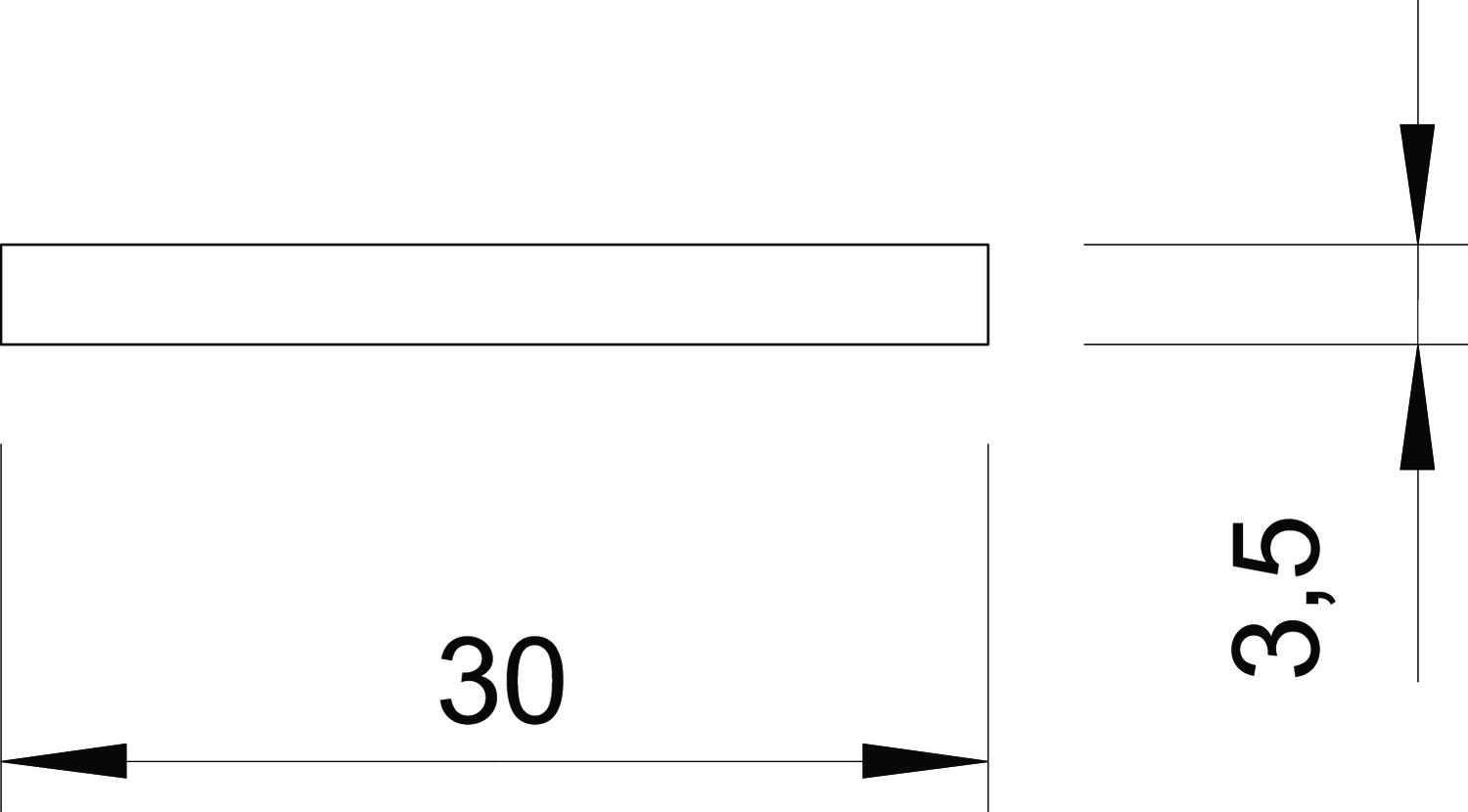

Dimenzija	30x3,5mm
Length tolerance ±	5 %
Material	Nerjaveče jeklo 1.4301
Mera B	30 mm
Mera H	3,5 mm

Običajni obroč (pribl. kg)	42
Običajni obroč (pribl. m)	50
Presek	105 mm²
Širina	30 mm
Višina	3,5 mm

Vsi tipi

Vsi tipi

Tip	Širina	Višina	Št. art.	Količina	Min. prodajna enota
5052 V2A 30X3.5	30 mm	3,5 mm	5018501	m	50 m
5052 V4A 30X3.5	30 mm	3,5 mm	5018706	m	50 m
5052 V4A 30X3.5	30 mm	3,5 mm	5018730	m	25 m

Pribor

Montažni pribor

Proizvodi	Tip	Št. art.	Količina	Min. prodajna enota
Cross-connector with intermediate plate for Rd 8−10 mm A4	252 8-10 V4A	5312318	Kos	10 Kos
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4	252 8-10x16 V4A	5312346	Kos	10 Kos
Cross-connector round/round without intermediate plate A4	253 8-10 V4A	5312582	Kos	25 Kos
Cross-connector for round conductors and flat conductors A4	252 8-10xFL30V4A	5312656	Kos	10 Kos

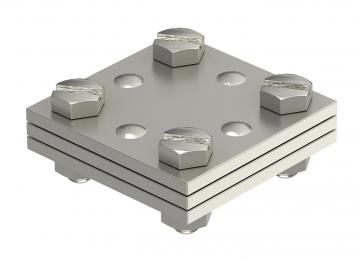

DIN cross-connector for flat conductor, with intermediate plate	256 DIN 30 V4A	5314616	Kos	10 Kos

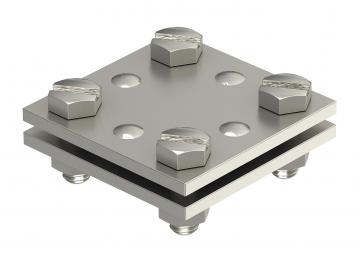

DIN cross-connector for flat conductor A2	256 A-DIN 30 VA	5314720	Kos	10 Kos
Fixed earthing terminal with axis and double thread FT	205 DG L180 FT	5420024	Kos	10 Kos
Sealing sleeve for flat conductors	DW FL30x3,5	2360043	Kos	1 Kos
Spacer	1811	5014018	Kos	25 Kos
